Magnitude |
3.1 |
| Date & Time (UTC) | 2017-05-09 03:00:27.3 |
| Date & Time (Local) | 1396/2/19 07:30:27.3 |

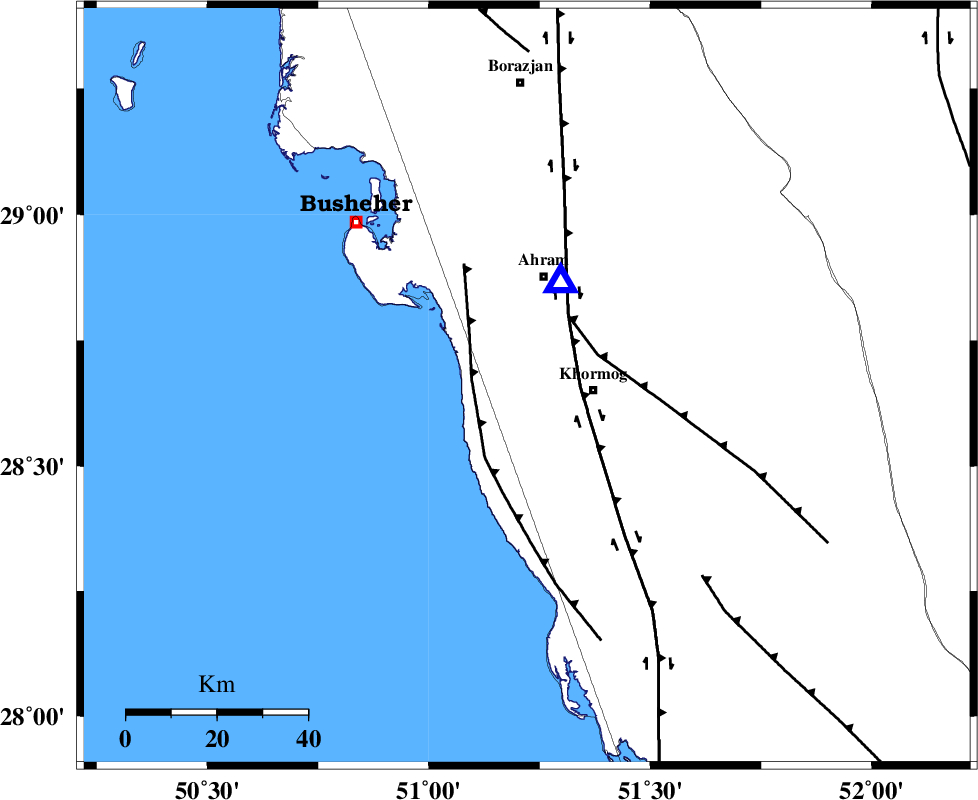

| Location | Lat:28.659 Lon: 51.222 |
| Region | Bushehr Province, 15 km -West of Khormog |
Nearest Cities |
|
| 5 km North of Derazi, Bushehr Province | |
| 15 km North West of Khormog, Bushehr Province | |
| 16 km North West of Buheyri, Bushehr Province | |
| 19 km South East of Delvar, Bushehr Province | |
| 25 km South of Ahram, Bushehr Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 12 km | |
| ZFF2 (Length: 84 km) , Distance to epicenter: 12 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 17 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | 9.4 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 115803 | IIEES | GHIR | N | 275.4 | 0.43 | 2017-05-09 03:01:21 | 2017-05-10 03:40:00 | n |
| 115804 | IIEES | GHIR | E | 247.4 | 0.38 | 2017-05-09 03:01:25 | 2017-05-10 03:40:00 | n |
| 115805 | IIEES | KRBR | N | 6.5 | 0.7 | 2017-05-09 03:02:50 | 2017-05-10 03:40:00 | n |
| 115806 | IIEES | KRBR | E | 6.5 | 0.6 | 2017-05-09 03:02:58 | 2017-05-10 03:40:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2017-05-09 03:00:56 | -0.01 | y | 178 | 103 | |
| IIEES | GHIR | N | Sg | E | 2017-05-09 03:01:18 | 0.01 | y | 178 | 103 | |
| IIEES | YZKH | Z | Pn | E | 2017-05-09 03:01:40 | 0 | y | 525 | 37 | |
| IIEES | KRBR | Z | Pn | E | 2017-05-09 03:01:44 | -0.01 | y | 558 | 73 | |
| IIEES | ASAO | Z | Pn | E | 2017-05-09 03:01:57 | 0 | y | 663 | 350 | |
| IIEES | SNGE | Z | Pn | E | 2017-05-09 03:02:14 | 0.02 | y | 802 | 334 |
