Magnitude |
4.4 |
| Date & Time (UTC) | 2017-06-02 16:09:53.8 |
| Date & Time (Local) | 1396/3/12 20:39:53.8 |

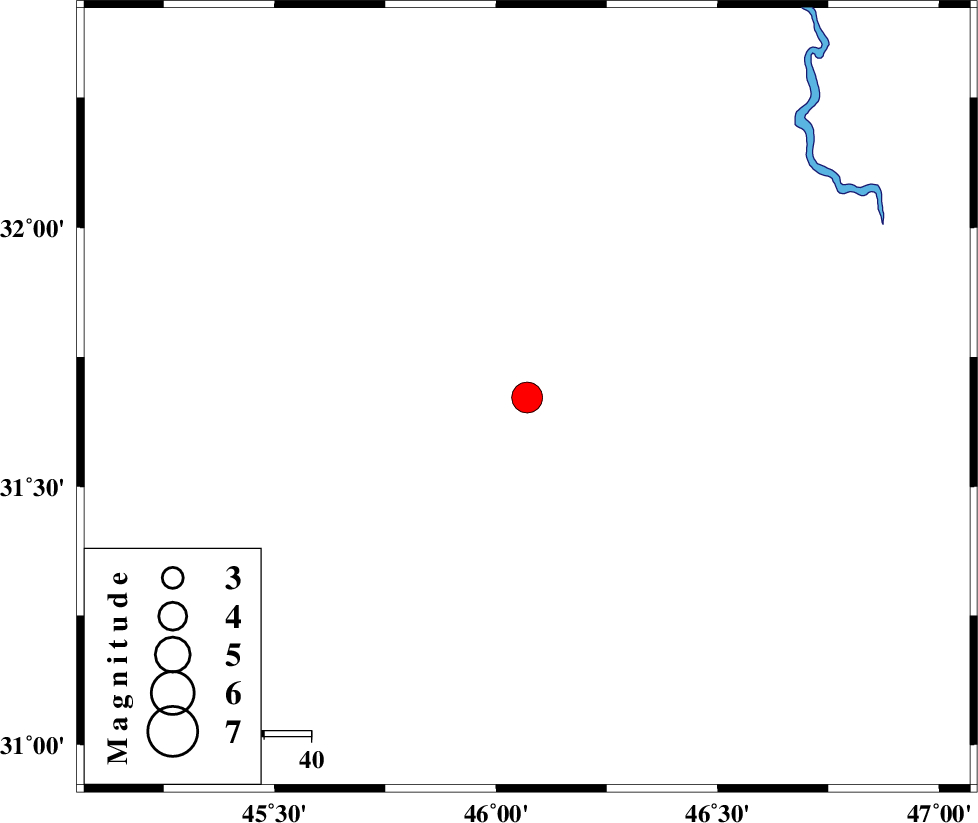

| Location | Lat:31.672 Lon: 46.07 |
| Region | Iraq |
Nearest Cities |
|
| 154 km South West of Bishehzar, Ilam Province | |
| 156 km South West of Musian, Ilam Province | |
| 159 km South West of Dehloran, Ilam Province | |
| 161 km South of Mehran, Ilam Province | |
| 181 km South West of Gonbad-e pirmohammad, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| Number of Phases | 21 |
| RMS | 0.5 |
| Number of Stations | 20 |
| Error in Latitude | 6.3 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 116431 | IIEES | ILBA | N | 3341.3 | 0.35 | 2017-06-02 16:10:50 | 2017-06-03 06:03:00 | n |
| 116432 | IIEES | ILBA | E | 2972.9 | 0.43 | 2017-06-02 16:10:50 | 2017-06-03 06:03:00 | n |
| 116433 | IIEES | KHMZ | N | 331.3 | 0.8 | 2017-06-02 16:12:21 | 2017-06-03 06:03:00 | n |
| 116434 | IIEES | ASAO | N | 198.9 | 0.45 | 2017-06-02 16:12:34 | 2017-06-03 06:03:00 | n |
| 116435 | IIEES | ASAO | E | 145 | 1.05 | 2017-06-02 16:12:48 | 2017-06-03 06:03:00 | n |
| 116436 | IIEES | GHVR | N | 141.7 | 0.59 | 2017-06-02 16:12:39 | 2017-06-03 06:03:00 | n |
| 116437 | IIEES | GHVR | E | 120.6 | 0.69 | 2017-06-02 16:12:42 | 2017-06-03 06:03:00 | n |
| 116438 | IIEES | AHRM | N | 302.8 | 0.46 | 2017-06-02 16:13:16 | 2017-06-03 06:03:00 | n |
| 116439 | IIEES | AHRM | E | 227.7 | 0.46 | 2017-06-02 16:13:25 | 2017-06-03 06:03:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pn | E | 2017-06-02 16:10:15 | -12.8 | n | 4 | 217 | 3 |
| IIEES | SNGE | Z | Pn | E | 2017-06-02 16:10:51 | 0 | y | 398 | 17 | |
| IIEES | KHMZ | Z | Pn | E | 2017-06-02 16:10:55 | 0.49 | y | 431 | 57 | |
| IIEES | ASAO | Z | Pn | E | 2017-06-02 16:11:03 | 0.74 | y | 488 | 48 | |
| IIEES | GHVR | Z | Pn | E | 2017-06-02 16:11:12 | 0.04 | y | 575 | 56 | |
| IIEES | AHRM | Z | Pn | E | 2017-06-02 16:11:15 | 0.69 | y | 591 | 120 | |
| IIEES | ZNJK | Z | Pn | E | 2017-06-02 16:11:16 | -0.14 | y | 605 | 23 | |
| IIEES | NASN | Z | Pn | E | 2017-06-02 16:11:22 | 0.17 | y | 647 | 77 | |
| IIEES | THKV | Z | Pn | E | 2017-06-02 16:11:22 | -0.09 | y | 648 | 42 | |
| IIEES | CHTH | Z | Pn | E | 2017-06-02 16:11:23 | -0.47 | y | 663 | 44 | |
| IIEES | GIDE | Z | Pn | E | 2017-06-02 16:11:26 | -0.02 | y | 681 | 30 | |
| IIEES | DAMV | Z | Pn | E | 2017-06-02 16:11:28 | -0.3 | y | 702 | 50 | |
| IIEES | GHIR | Z | Pn | E | 2017-06-02 16:11:35 | -0.82 | y | 765 | 118 | |
| IIEES | YZKH | Z | Pn | E | 2017-06-02 16:11:41 | -0.71 | y | 809 | 82 | |
| IIEES | GRMI | Z | Pn | E | 2017-06-02 16:11:42 | -0.04 | y | 809 | 11 | |
| IIEES | MAKU | Z | Pn | E | 2017-06-02 16:11:48 | -0.04 | y | 862 | 352 | |
| IIEES | SHRO | Z | Pn | E | 2017-06-02 16:12:09 | -0.76 | y | 1038 | 60 | |
| IIEES | TABS | Z | Pn | E | 2017-06-02 16:12:12 | -0.29 | y | 1059 | 75 | |
| IIEES | BNDS | Z | Pn | E | 2017-06-02 16:12:16 | 0.17 | y | 1087 | 113 | |
| IIEES | BSRN | Z | Pn | E | 2017-06-02 16:12:33 | -1.8 | y | 1236 | 85 | |
| IIEES | ZHSF | Z | Pn | E | 2017-06-02 16:12:42 | -15.9 | n | 4 | 1427 | 95 |
