Magnitude |
3.4 |
| Date & Time (UTC) | 2017-06-04 13:14:33.4 |
| Date & Time (Local) | 1396/3/14 17:44:33.4 |

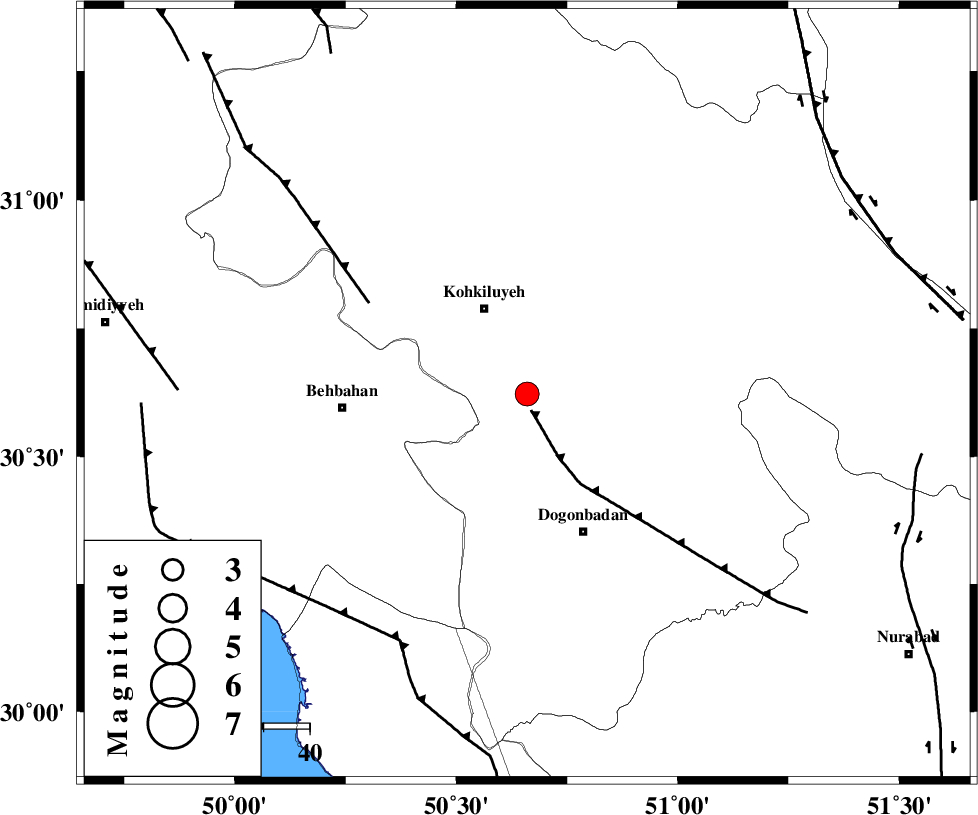

| Location | Lat:30.622 Lon: 50.66 |
| Region | Kohkiluieh va boyerahmad Province, 21 km South of Dehdasht |
Nearest Cities |
|
| 21 km South of Dehdasht, Kohkiluieh va boyerahmad Province | |
| 32 km South of Savari, Kohkiluieh va boyerahmad Province | |
| 32 km North West of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 35 km East of Mansuriyeh, Khoozestan Province | |
| 40 km North East of Behbahan, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 4 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 39 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 60 km | |
| Number of Phases | 18 |
| RMS | 0.6 |
| Number of Stations | 17 |
| Error in Latitude | 4.7 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 116548 | IIEES | AHRM | N | 302.3 | 0.54 | 2017-06-04 13:15:34 | 2017-06-06 09:45:00 | n |
| 116549 | IIEES | AHRM | E | 321.6 | 0.4 | 2017-06-04 13:15:43 | 2017-06-06 09:45:00 | n |
| 116550 | IIEES | NASN | N | 49.2 | 0.42 | 2017-06-04 13:15:58 | 2017-06-06 09:45:00 | n |
| 116551 | IIEES | NASN | E | 50.8 | 0.77 | 2017-06-04 13:16:12 | 2017-06-06 09:45:00 | n |
| 116552 | IIEES | GHIR | E | 88.6 | 0.44 | 2017-06-04 13:16:24 | 2017-06-06 09:45:00 | n |
| 116553 | IIEES | GHIR | N | 84.8 | 0.37 | 2017-06-04 13:16:33 | 2017-06-06 09:45:00 | n |
| 116554 | IIEES | KHMZ | E | 46.8 | 0.63 | 2017-06-04 13:16:16 | 2017-06-06 09:45:00 | n |
| 116555 | IIEES | KHMZ | N | 105.7 | 0.88 | 2017-06-04 13:16:22 | 2017-06-06 09:45:00 | n |
| 116556 | IIEES | YZKH | E | 43.4 | 0.64 | 2017-06-04 13:16:23 | 2017-06-06 09:45:00 | n |
| 116557 | IIEES | YZKH | N | 43.8 | 0.4 | 2017-06-04 13:16:24 | 2017-06-06 09:45:00 | n |
| 116558 | IIEES | GHVR | E | 50.4 | 0.43 | 2017-06-04 13:16:25 | 2017-06-06 09:45:00 | n |
| 116559 | IIEES | GHVR | N | 79.3 | 0.85 | 2017-06-04 13:16:40 | 2017-06-06 09:45:00 | n |
| 116560 | IIEES | ASAO | E | 26.1 | 0.52 | 2017-06-04 13:16:34 | 2017-06-06 09:45:00 | n |
| 116561 | IIEES | ASAO | N | 32.9 | 0.52 | 2017-06-04 13:16:52 | 2017-06-06 09:45:00 | n |
| 116562 | IIEES | SNGE | N | 14.4 | 0.69 | 2017-06-04 13:17:08 | 2017-06-06 09:45:00 | n |
| 116563 | IIEES | SNGE | E | 19.2 | 0.59 | 2017-06-04 13:17:09 | 2017-06-06 09:45:00 | n |
| 116564 | IIEES | THKV | N | 18.7 | 0.85 | 2017-06-04 13:17:36 | 2017-06-06 09:45:00 | n |
| 116565 | IIEES | THKV | E | 8.3 | 0.56 | 2017-06-04 13:17:57 | 2017-06-06 09:45:00 | n |
| 116566 | IIEES | KRBR | E | 16.9 | 0.59 | 2017-06-04 13:17:05 | 2017-06-06 09:45:00 | n |
| 116567 | IIEES | KRBR | N | 13 | 0.42 | 2017-06-04 13:17:16 | 2017-06-06 09:45:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pn | E | 2017-06-04 13:15:06 | 0.41 | y | 204 | 162 | |
| IIEES | NASN | Z | Pn | E | 2017-06-04 13:15:21 | 0.47 | y | 316 | 40 | |
| IIEES | GHIR | Z | Pn | E | 2017-06-04 13:15:22 | -0.88 | y | 344 | 138 | |
| IIEES | KHMZ | Z | Pn | E | 2017-06-04 13:15:25 | 0.3 | y | 352 | 349 | |
| IIEES | YZKH | Z | Pn | E | 2017-06-04 13:15:34 | 0.54 | y | 422 | 61 | |
| IIEES | GHVR | Z | Pn | E | 2017-06-04 13:15:35 | 0.62 | y | 431 | 7 | |
| IIEES | ASAO | Z | Pn | E | 2017-06-04 13:15:36 | 0.38 | y | 439 | 352 | |
| IIEES | ILBA | Z | Pn | E | 2017-06-04 13:15:32 | -15.4 | n | 4 | 536 | 310 |
| IIEES | DAMV | Z | Pn | E | 2017-06-04 13:15:51 | -0.2 | y | 569 | 12 | |
| IIEES | SNGE | Z | Pn | E | 2017-06-04 13:15:54 | 0.29 | y | 585 | 329 | |
| IIEES | THKV | Z | Pn | E | 2017-06-04 13:15:52 | -1.96 | y | 588 | 2 | |
| IIEES | CHTH | Z | Pn | E | 2017-06-04 13:15:53 | -0.65 | y | 588 | 4 | |
| IIEES | KRBR | Z | Pn | E | 2017-06-04 13:15:54 | -0.14 | y | 591 | 95 | |
| IIEES | BNDS | Z | Pn | E | 2017-06-04 13:16:01 | 0.51 | y | 645 | 122 | |
| IIEES | TABS | Z | Pn | E | 2017-06-04 13:16:07 | -0.34 | y | 696 | 59 | |
| IIEES | SHRO | Z | Pn | E | 2017-06-04 13:16:17 | -0.02 | y | 778 | 38 | |
| IIEES | BSRN | Z | Pn | E | 2017-06-04 13:16:22 | -0.07 | y | 820 | 77 | |
| IIEES | MRVT | Z | Pn | E | 2017-06-04 13:16:36 | -0.17 | y | 927 | 31 |
