Magnitude |
3.3 |
| Date & Time (UTC) | 2017-06-12 12:45:11.7 |
| Date & Time (Local) | 1396/3/22 17:15:11.7 |

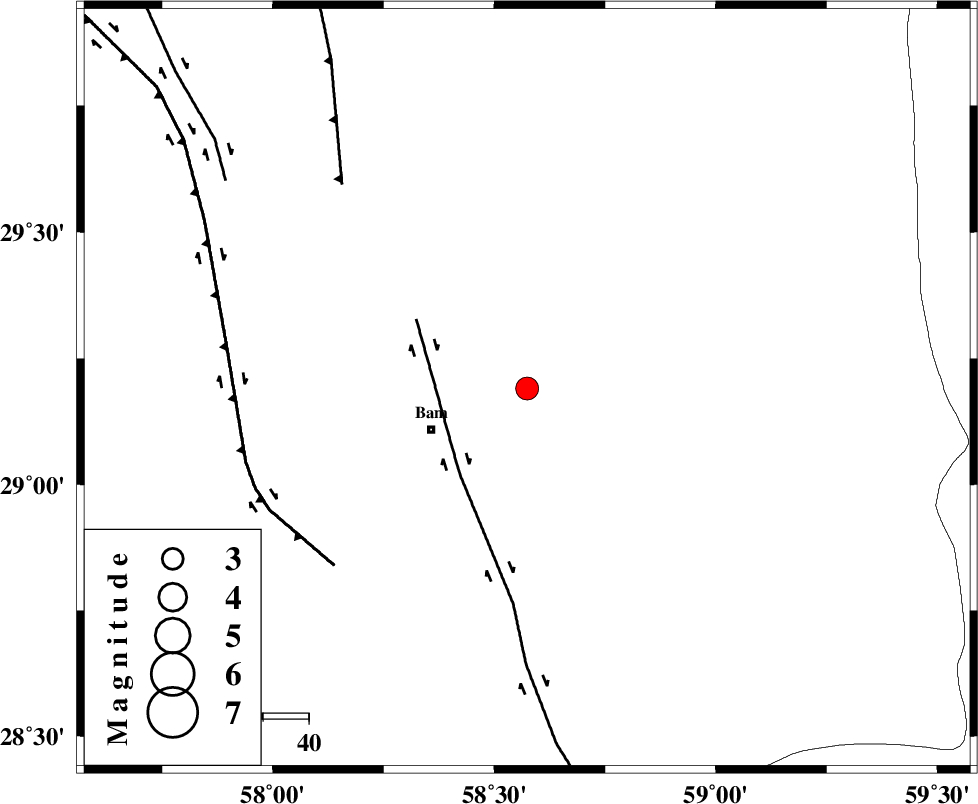

| Location | Lat:29.191 Lon: 58.574 |
| Region | Kerman Province, 23 km -East of Bam |
Nearest Cities |
|
| 19 km North East of Poshtrud, Kerman Province | |
| 23 km North East of Baravat, Kerman Province | |
| 23 km North East of Bam, Kerman Province | |
| 27 km North of Qasemabad, Kerman Province | |
| 30 km North of Abshur-e nezamabad, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BAM_F (Length: 118 km) , Distance to epicenter: 24 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 58 km | |
| SHAHDAD_F (Length: 108 km) , Distance to epicenter: 60 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | 6.2 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 116722 | IIEES | KRBR | N | 303.1 | 0.27 | 2017-06-12 12:46:08 | 2017-06-13 04:51:00 | n |
| 116723 | IIEES | KRBR | E | 423.9 | 0.27 | 2017-06-12 12:46:09 | 2017-06-13 04:51:00 | n |
| 116724 | IIEES | BSRN | N | 69.7 | 0.18 | 2017-06-12 12:46:44 | 2017-06-13 04:51:00 | n |
| 116725 | IIEES | BSRN | E | 78.4 | 0.48 | 2017-06-12 12:46:46 | 2017-06-13 04:51:00 | n |
| 116726 | IIEES | TABS | E | 15.4 | 0.64 | 2017-06-12 12:47:52 | 2017-06-13 04:51:00 | n |
| 116727 | IIEES | TABS | N | 22.8 | 0.56 | 2017-06-12 12:47:53 | 2017-06-13 04:51:00 | n |
| 116728 | IIEES | YZKH | N | 12.6 | 0.38 | 2017-06-12 12:47:55 | 2017-06-13 04:51:00 | n |
| 116729 | IIEES | YZKH | E | 11.1 | 0.76 | 2017-06-12 12:47:59 | 2017-06-13 04:51:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2017-06-12 12:45:43 | -0.37 | y | 196 | 297 | |
| IIEES | KRBR | N | Sg | E | 2017-06-12 12:46:08 | 0.16 | y | 196 | 297 | |
| IIEES | ZHSF | Z | Pn | E | 2017-06-12 12:45:46 | -0.08 | y | 219 | 77 | |
| IIEES | ZHSF | N | Sg | E | 2017-06-12 12:46:13 | -0.1 | y | 219 | 77 | |
| IIEES | BNDS | Z | Pn | E | 2017-06-12 12:45:58 | 0.28 | y | 308 | 230 | |
| IIEES | BSRN | Z | Pn | E | 2017-06-12 12:45:59 | 0.8 | y | 312 | 10 | |
| IIEES | TABS | Z | Pn | E | 2017-06-12 12:46:22 | -0.71 | y | 513 | 345 | |
| IIEES | YZKH | Z | Pn | E | 2017-06-12 12:46:37 | 13.22 | n | 4 | 521 | 314 |
| IIEES | GHIR | Z | Pn | E | 2017-06-12 12:46:28 | -0.22 | y | 555 | 261 |
