Magnitude |
3.1 |
| Date & Time (UTC) | 2017-06-13 03:06:55.6 |
| Date & Time (Local) | 1396/3/23 07:36:55.6 |

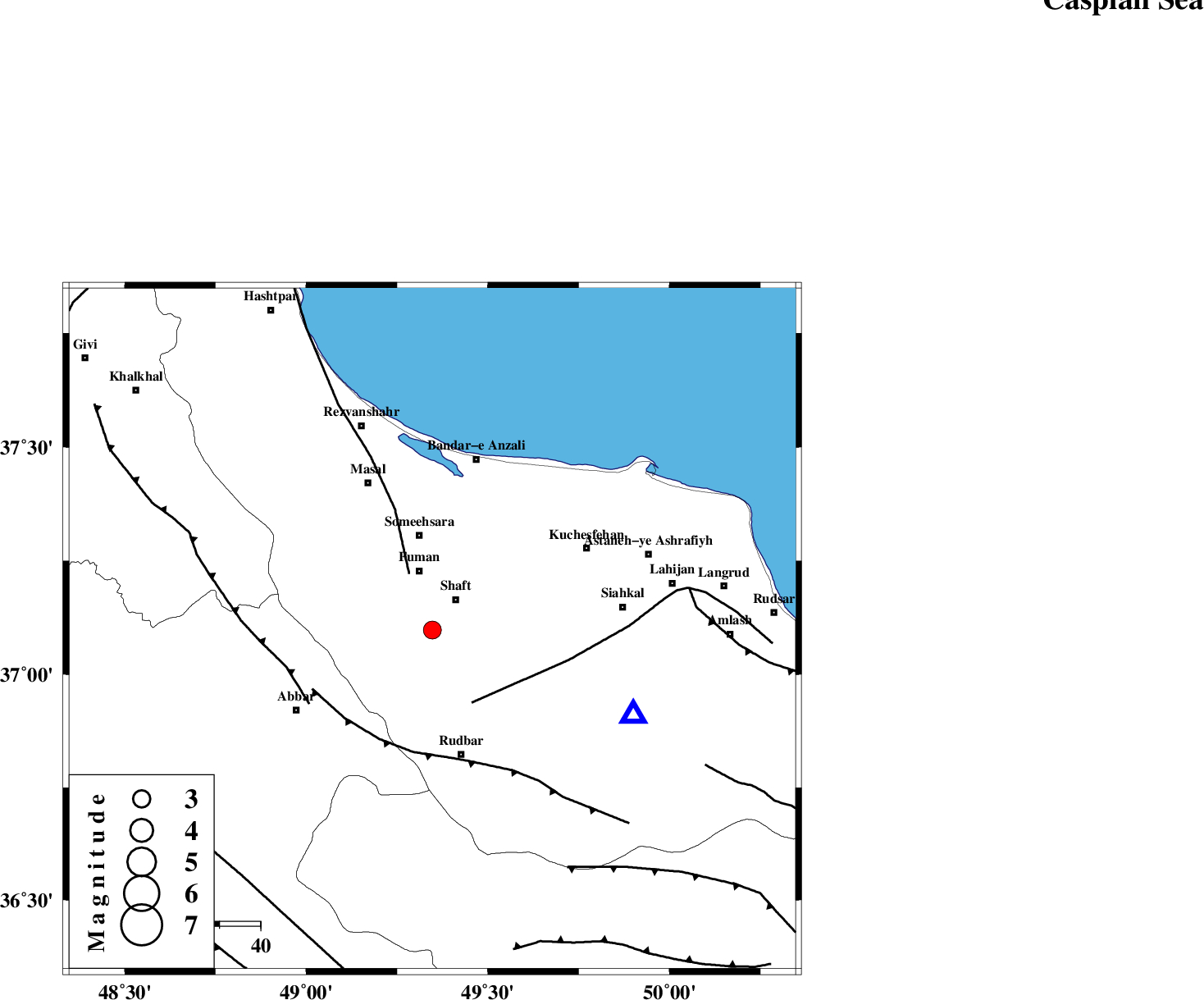

| Location | Lat:37.098 Lon: 49.347 |
| Region | Gilan Province, 9 km of Shaft |
Nearest Cities |
|
| 5 km of Gorabpas, Gilan Province | |
| 9 km of Shaft, Gilan Province | |
| 10 km of Chobareh, Gilan Province | |
| 13 km North East of Siyahmargi, Gilan Province | |
| 14 km West of Rudpish, Gilan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 15 km | |
| LAHIJAN_F (Length: 92 km) , Distance to epicenter: 20 km | |
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 30 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | 4.4 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 116730 | IIEES | GIDE | N | 874.1 | 0.34 | 2017-06-13 03:07:11 | 2017-06-13 04:51:00 | n |
| 116731 | IIEES | ZNJK | N | 710.7 | 0.23 | 2017-06-13 03:07:17 | 2017-06-13 04:51:00 | n |
| 116732 | IIEES | THKV | E | 252.4 | 0.21 | 2017-06-13 03:07:51 | 2017-06-13 04:51:00 | n |
| 116733 | IIEES | THKV | N | 252.9 | 0.52 | 2017-06-13 03:07:52 | 2017-06-13 04:51:00 | n |
| 116734 | IIEES | CHTH | N | 107.2 | 0.32 | 2017-06-13 03:07:55 | 2017-06-13 04:51:00 | n |
| 116735 | IIEES | GRMI | N | 87.3 | 0.25 | 2017-06-13 03:08:02 | 2017-06-13 04:51:00 | n |
| 116736 | IIEES | ASAO | N | 39.5 | 0.33 | 2017-06-13 03:08:19 | 2017-06-13 04:51:00 | n |
| 116737 | IIEES | GHVR | E | 65.9 | 0.41 | 2017-06-13 03:08:35 | 2017-06-13 04:51:00 | n |
| 116738 | IIEES | MRVT | E | 7.5 | 0.24 | 2017-06-13 03:09:19 | 2017-06-13 04:51:00 | n |
| 116739 | IIEES | MRVT | N | 5.6 | 0.32 | 2017-06-13 03:09:20 | 2017-06-13 04:51:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GIDE | Z | Pg | E | 2017-06-13 03:07:04 | -1.26 | n | 4 | 53.8 | 111 |
| IIEES | ZNJK | Z | Pg | E | 2017-06-13 03:07:08 | -0.61 | y | 75.7 | 231 | |
| IIEES | THKV | Z | Pg | E | 2017-06-13 03:07:26 | -0.03 | y | 190 | 133 | |
| IIEES | THKV | E | Sg | E | 2017-06-13 03:07:49 | -0.21 | y | 190 | 133 | |
| IIEES | CHTH | Z | Pn | E | 2017-06-13 03:07:29 | -0.12 | y | 207 | 129 | |
| IIEES | GRMI | Z | Pn | E | 2017-06-13 03:07:31 | -0.03 | y | 229 | 327 | |
| IIEES | SNGE | Z | Pn | E | 2017-06-13 03:07:39 | 0.27 | y | 286 | 220 | |
| IIEES | DAMV | Z | Pn | E | 2017-06-13 03:07:39 | 0.36 | y | 286 | 124 | |
| IIEES | ASAO | Z | Pn | E | 2017-06-13 03:07:39 | 0.22 | y | 290 | 168 | |
| IIEES | ASAO | E | Sg | E | 2017-06-13 03:08:17 | -0.24 | y | 290 | 168 | |
| IIEES | GHVR | Z | Pn | E | 2017-06-13 03:07:45 | -0.11 | y | 337 | 149 | |
| IIEES | KHMZ | Z | Pn | E | 2017-06-13 03:07:51 | 0.98 | y | 377 | 171 | |
| IIEES | MRVT | Z | Pn | E | 2017-06-13 03:08:17 | -0.55 | y | 600 | 82 |
