Magnitude |
2.4 |
| Date & Time (UTC) | 2017-06-19 10:15:05.8 |
| Date & Time (Local) | 1396/3/29 14:45:05.8 |
| Location | Lat:30.812 Lon: 51.654 |
| Region | Esfahan Province, 17 km North of Yasuj |
Nearest Cities |
|
| 17 km West of Bideh, Esfahan Province | |
| 17 km North of Yasuj, Kohkiluieh va boyerahmad Province | |
| 20 km East of Sisakht, Kohkiluieh va boyerahmad Province | |
| 23 km East of Kerik, Kohkiluieh va boyerahmad Province | |
| 24 km North of Tal-e khosro, Kohkiluieh va boyerahmad Province | |
| Depth | 16 km |
| Agency | |

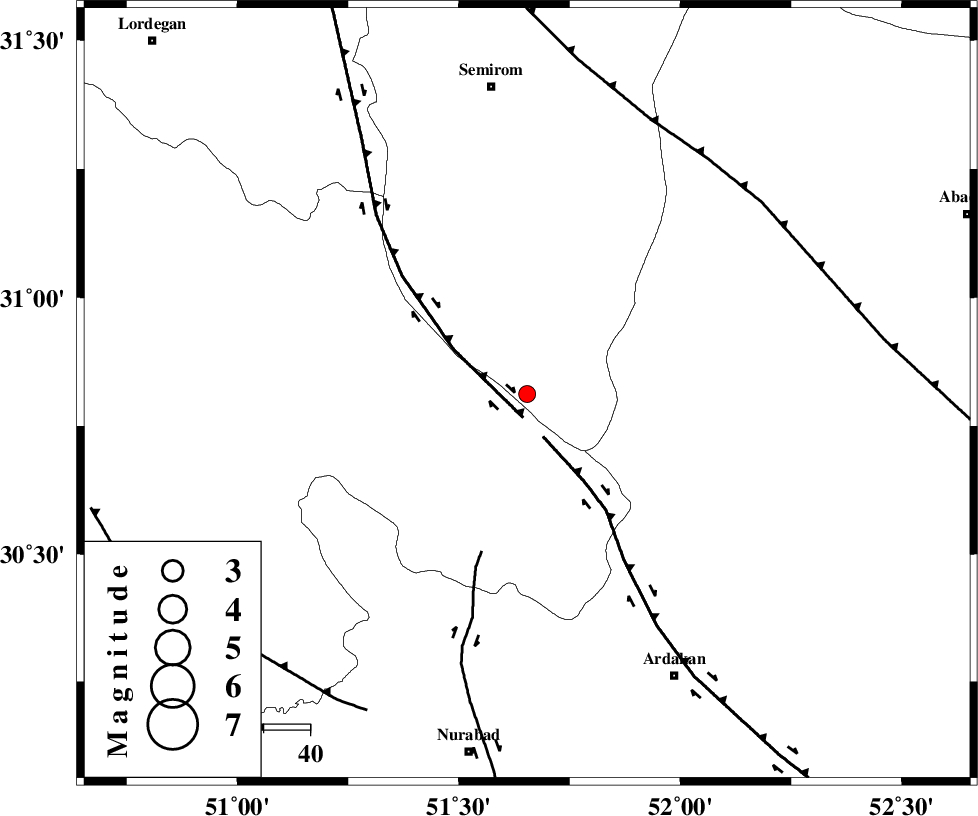

Faults within 150 km: |
|
| DENA_F (Length: 137 km) , Distance to epicenter: 5 km | |
| HZF3 (Length: 197 km) , Distance to epicenter: 10 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 35 km | |
| Number of Phases | 7 |
| RMS | 0 |
| Number of Stations | 6 |
| Error in Latitude | 5.9 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 116871 | IIEES | NASN | E | 17.8 | 0.73 | 2017-06-19 10:16:22 | 2017-06-20 04:14:00 | n |
| 116872 | IIEES | NASN | N | 14.9 | 0.62 | 2017-06-19 10:16:23 | 2017-06-20 04:14:00 | n |
| 116873 | IIEES | YZKH | E | 9.6 | 0.4 | 2017-06-19 10:16:45 | 2017-06-20 04:14:00 | n |
| 116874 | IIEES | YZKH | N | 8.1 | 0.61 | 2017-06-19 10:16:50 | 2017-06-20 04:14:00 | n |
| 116875 | IIEES | KHMZ | E | 7.3 | 0.38 | 2017-06-19 10:17:00 | 2017-06-20 04:14:00 | n |
| 116876 | IIEES | KHMZ | N | 5.6 | 0.25 | 2017-06-19 10:17:01 | 2017-06-20 04:14:00 | n |
| 116877 | IIEES | GHVR | N | 5.3 | 0.48 | 2017-06-19 10:16:52 | 2017-06-20 04:14:00 | n |
| 116878 | IIEES | GHVR | E | 10 | 0.42 | 2017-06-19 10:16:53 | 2017-06-20 04:14:00 | n |
| 116879 | IIEES | ASAO | N | 4.3 | 0.6 | 2017-06-19 10:17:22 | 2017-06-20 04:14:00 | n |
| 116880 | IIEES | ASAO | E | 4 | 0.68 | 2017-06-19 10:17:29 | 2017-06-20 04:14:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | NASN | Z | Pn | E | 2017-06-19 10:15:44 | 0.02 | y | 246 | 26 | |
| IIEES | NASN | N | Sg | E | 2017-06-19 10:16:15 | 0 | y | 246 | 26 | |
| IIEES | YZKH | Z | Pn | E | 2017-06-19 10:15:54 | -0.01 | y | 329 | 57 | |
| IIEES | KHMZ | Z | Pn | E | 2017-06-19 10:15:58 | -0.06 | y | 362 | 334 | |
| IIEES | GHVR | Z | Pn | E | 2017-06-19 10:16:04 | -0.02 | y | 409 | 355 | |
| IIEES | ASAO | Z | Pn | E | 2017-06-19 10:16:08 | 0.06 | y | 442 | 340 | |
| IIEES | ILBA | Z | Pn | E | 2017-06-19 10:16:28 | 0.02 | y | 601 | 303 |
