Magnitude |
3.1 |
| Date & Time (UTC) | 2017-07-11 19:58:42.5 |
| Date & Time (Local) | 1396/4/21 00:28:42.5 |

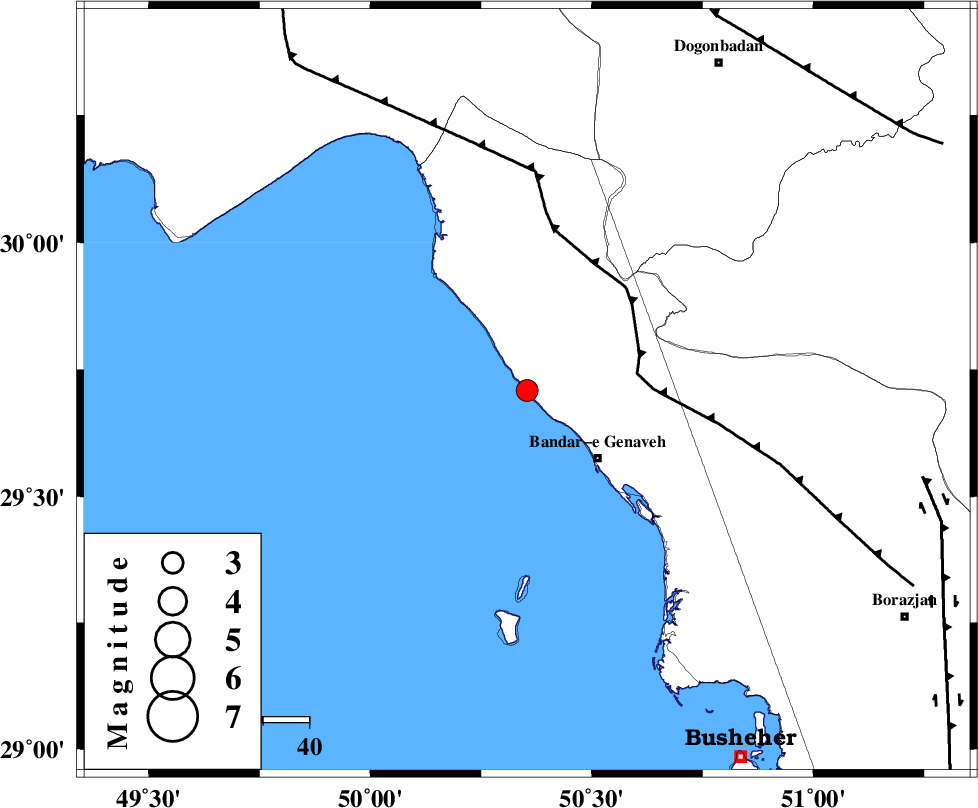

| Location | Lat:29.709 Lon: 50.354 |
| Region | Bushehr Province, 21 km North-West of Bandar-e genaveh |
Nearest Cities |
|
| 17 km South of Emamhasan, Bushehr Province | |
| 21 km North West of Bandar-e genaveh, Bushehr Province | |
| 26 km North West of Mohammad salehi, Bushehr Province | |
| 37 km North West of Bandarehrig, Bushehr Province | |
| 40 km South of Siyahmakan-e bozorg, Bushehr Province | |
| Depth | 24 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 24 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 48 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 88 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 5.3 km |
| Error in Longitude | 7 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 117565 | IIEES | AHRM | N | 429 | 0.31 | 2017-07-11 19:59:21 | 2017-07-12 03:54:00 | n |
| 117566 | IIEES | AHRM | E | 295.3 | 0.48 | 2017-07-11 19:59:21 | 2017-07-12 03:54:00 | n |
| 117567 | IIEES | GHIR | N | 37.6 | 0.48 | 2017-07-11 20:00:22 | 2017-07-12 03:54:00 | n |
| 117568 | IIEES | KHMZ | E | 14.8 | 0.4 | 2017-07-11 20:00:37 | 2017-07-12 03:54:00 | n |
| 117569 | IIEES | KRBR | N | 7.1 | 0.46 | 2017-07-11 20:01:17 | 2017-07-12 03:54:00 | n |
| 117570 | IIEES | KRBR | E | 5.8 | 0.55 | 2017-07-11 20:01:22 | 2017-07-12 03:54:00 | n |
| 117571 | IIEES | SNGE | N | 4.4 | 0.66 | 2017-07-11 20:01:44 | 2017-07-12 03:54:00 | n |
| 117572 | IIEES | SNGE | E | 4.5 | 0.53 | 2017-07-11 20:02:07 | 2017-07-12 03:54:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pg | E | 2017-07-11 19:59:04 | 0.14 | y | 131 | 135 | |
| IIEES | AHRM | N | Sg | E | 2017-07-11 19:59:19 | -0.13 | y | 131 | 135 | |
| IIEES | GHIR | Z | Pn | E | 2017-07-11 19:59:26 | 0.04 | y | 301 | 121 | |
| IIEES | NASN | Z | Pn | E | 2017-07-11 19:59:41 | 0.33 | y | 415 | 34 | |
| IIEES | KHMZ | Z | Pn | E | 2017-07-11 19:59:44 | -0.41 | y | 448 | 355 | |
| IIEES | YZKH | Z | Pn | E | 2017-07-11 19:59:51 | -0.15 | y | 502 | 53 | |
| IIEES | KRBR | Z | Pn | E | 2017-07-11 20:00:06 | -0.01 | y | 620 | 86 | |
| IIEES | SNGE | Z | Pn | E | 2017-07-11 20:00:11 | 0.21 | y | 661 | 335 |
