Magnitude |
3 |
| Date & Time (UTC) | 2017-07-14 05:00:27.7 |
| Date & Time (Local) | 1396/4/23 09:30:27.7 |

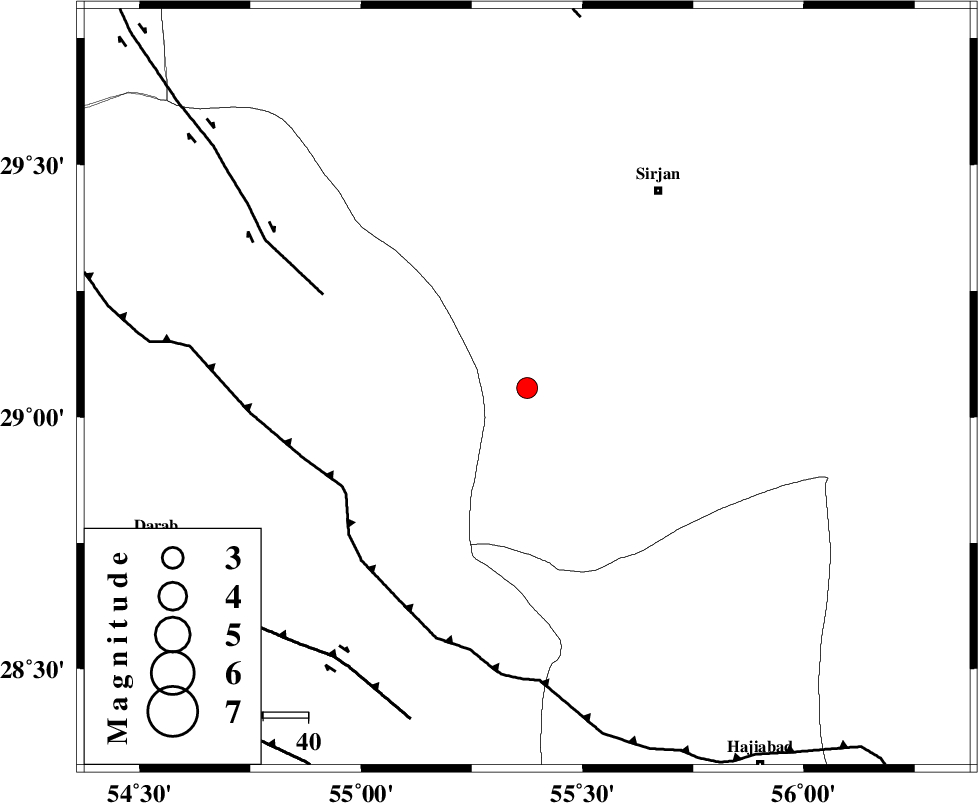

| Location | Lat:29.058 Lon: 55.375 |
| Region | Kerman Province, 52 km South-West of Sirjan |
Nearest Cities |
|
| 49 km South West of Najafabad, Kerman Province | |
| 49 km South West of Sharifabad, Kerman Province | |
| 51 km South West of Malekabad, Kerman Province | |
| 52 km South West of Sirjan, Kerman Province | |
| 54 km North of Tal bargah, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 46 km | |
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 49 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 73 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 1.3 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 117633 | IIEES | KRBR | E | 329.2 | 0.33 | 2017-07-14 05:01:21 | 2017-07-15 06:00:00 | n |
| 117634 | IIEES | KRBR | N | 258.7 | 0.54 | 2017-07-14 05:01:22 | 2017-07-15 06:00:00 | n |
| 117635 | IIEES | BNDS | E | 96.1 | 0.38 | 2017-07-14 05:01:35 | 2017-07-15 06:00:00 | n |
| 117636 | IIEES | BNDS | N | 101.6 | 0.38 | 2017-07-14 05:01:37 | 2017-07-15 06:00:00 | n |
| 117637 | IIEES | GHIR | E | 48.6 | 0.51 | 2017-07-14 05:01:43 | 2017-07-15 06:00:00 | n |
| 117638 | IIEES | GHIR | N | 56.4 | 0.29 | 2017-07-14 05:01:49 | 2017-07-15 06:00:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2017-07-14 05:00:55 | -0.17 | y | 169 | 52 | |
| IIEES | KRBR | N | Sg | E | 2017-07-14 05:01:16 | 0.09 | y | 169 | 52 | |
| IIEES | BNDS | Z | Pn | E | 2017-07-14 05:01:00 | -0.14 | y | 200 | 157 | |
| IIEES | BNDS | N | Sg | E | 2017-07-14 05:01:24 | 0.07 | y | 200 | 157 | |
| IIEES | GHIR | Z | Pn | E | 2017-07-14 05:01:06 | 0.05 | y | 249 | 250 | |
| IIEES | YZKH | Z | Pn | E | 2017-07-14 05:01:22 | 0.14 | y | 377 | 349 | |
| IIEES | BSRN | Z | Pn | E | 2017-07-14 05:01:35 | 0.25 | y | 483 | 47 | |
| IIEES | TABS | Z | Pn | E | 2017-07-14 05:01:41 | -0.31 | y | 535 | 18 |
