Magnitude |
3.3 |
| Date & Time (UTC) | 2017-07-13 14:26:44.2 |
| Date & Time (Local) | 1396/4/22 18:56:44.2 |

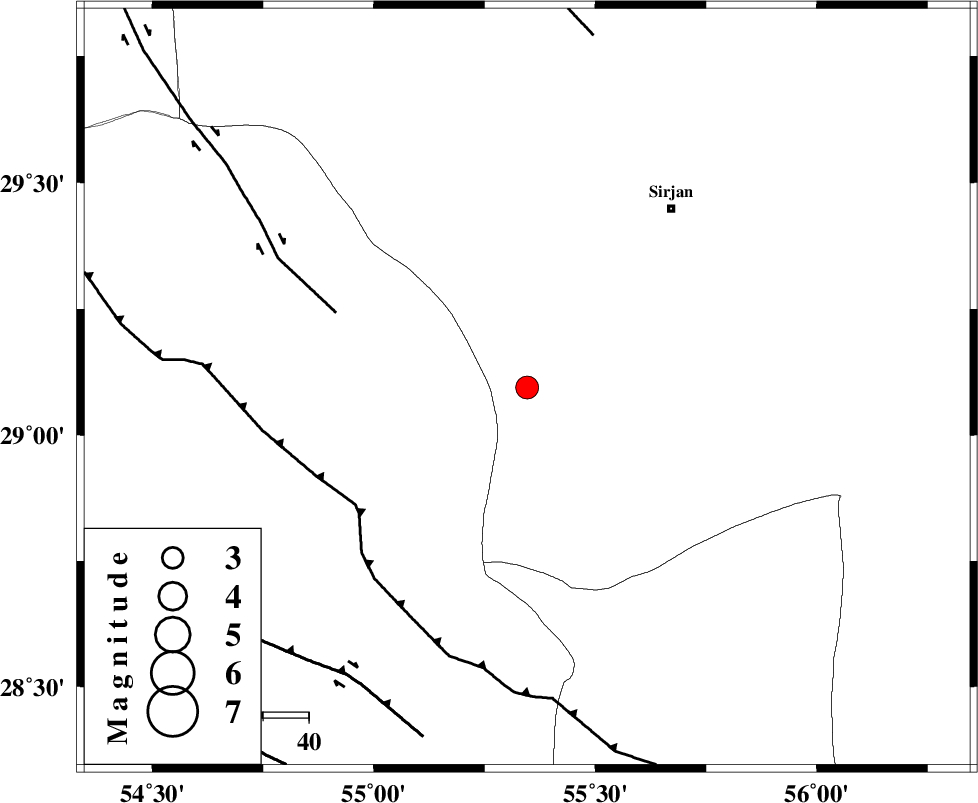

| Location | Lat:29.094 Lon: 55.346 |
| Region | Kerman Province, 50 km South-West of Sirjan |
Nearest Cities |
|
| 47 km South West of Sharifabad, Kerman Province | |
| 48 km South West of Najafabad, Kerman Province | |
| 50 km South West of Sirjan, Kerman Province | |
| 51 km South West of Malekabad, Kerman Province | |
| 56 km South West of Mahmud Abad, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 45 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 46 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 75 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 1.7 km |
| Error in Longitude | 4 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 117730 | IIEES | KRBR | N | 446.3 | 0.51 | 2017-07-13 14:27:37 | 2017-07-16 10:17:00 | n |
| 117731 | IIEES | KRBR | E | 718.5 | 0.59 | 2017-07-13 14:27:37 | 2017-07-16 10:17:00 | n |
| 117732 | IIEES | GHIR | E | 96.4 | 0.57 | 2017-07-13 14:28:04 | 2017-07-16 10:17:00 | n |
| 117733 | IIEES | GHIR | N | 126.6 | 0.38 | 2017-07-13 14:28:05 | 2017-07-16 10:17:00 | n |
| 117734 | IIEES | BSRN | N | 14 | 0.57 | 2017-07-13 14:29:13 | 2017-07-16 10:17:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2017-07-13 14:27:12 | -0.21 | y | 169 | 54 | |
| IIEES | KRBR | N | Sg | E | 2017-07-13 14:27:32 | -0.03 | y | 169 | 54 | |
| IIEES | BNDS | Z | Pn | E | 2017-07-13 14:27:17 | -0.2 | y | 205 | 156 | |
| IIEES | BNDS | N | Sg | E | 2017-07-13 14:27:42 | 0.16 | y | 205 | 156 | |
| IIEES | GHIR | Z | Pn | E | 2017-07-13 14:27:22 | -0.07 | y | 247 | 249 | |
| IIEES | YZKH | Z | Pn | E | 2017-07-13 14:27:39 | 0.69 | n | 4 | 373 | 349 |
| IIEES | BSRN | Z | Pn | E | 2017-07-13 14:27:52 | 0.18 | y | 483 | 48 | |
| IIEES | TABS | Z | Pn | E | 2017-07-13 14:27:58 | 0.38 | y | 532 | 18 |
