Magnitude |
3.4 |
| Date & Time (UTC) | 2017-07-16 08:28:20.1 |
| Date & Time (Local) | 1396/4/25 12:58:20.1 |

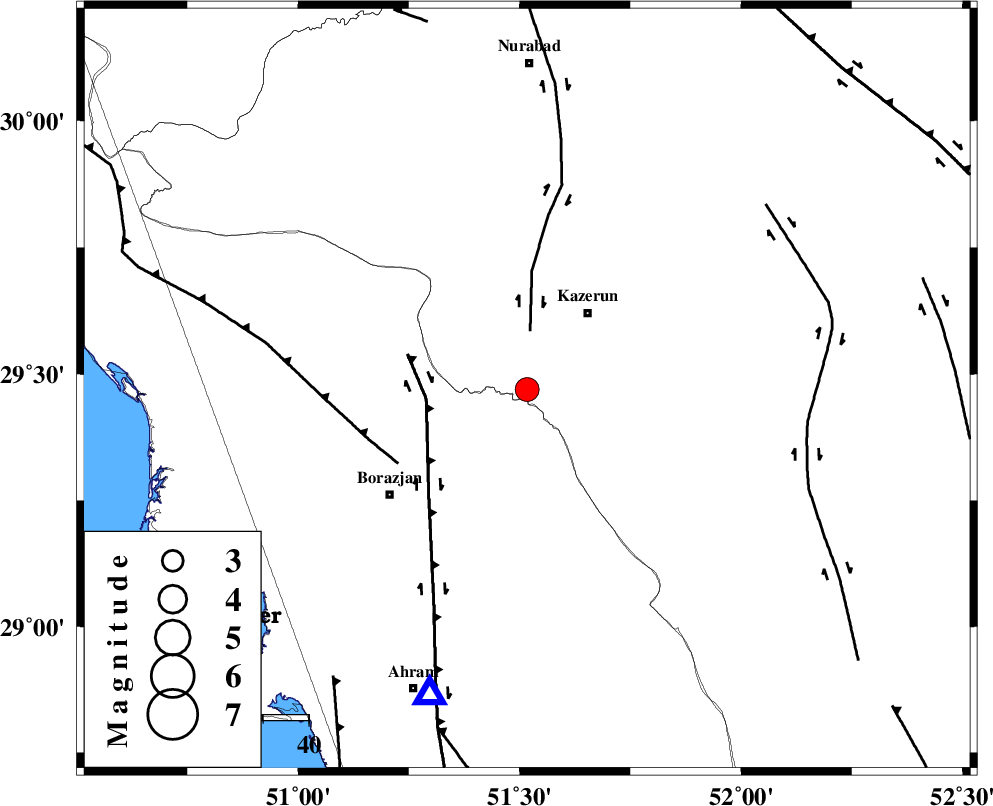

| Location | Lat:29.47 Lon: 51.517 |
| Region | Fars Province, 21 km South-West of Kazerun |
Nearest Cities |
|
| 17 km West of Mehranjan, Fars Province | |
| 18 km South of Kamaraj, Fars Province | |
| 20 km East of Khesht, Fars Province | |
| 21 km South West of Kazerun, Fars Province | |
| 22 km North East of Dalki, Bushehr Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 13 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 22 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 33 km | |
| Number of Phases | 11 |
| RMS | 0.2 |
| Number of Stations | 9 |
| Error in Latitude | 2.5 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 117758 | IIEES | GHIR | E | 312.5 | 0.56 | 2017-07-16 08:29:27 | 2017-07-17 04:07:00 | n |
| 117759 | IIEES | GHIR | N | 297.5 | 0.48 | 2017-07-16 08:29:38 | 2017-07-17 04:07:00 | n |
| 117760 | IIEES | KRBR | E | 19 | 0.62 | 2017-07-16 08:30:45 | 2017-07-17 04:07:00 | n |
| 117761 | IIEES | KRBR | N | 22.5 | 0.75 | 2017-07-16 08:31:05 | 2017-07-17 04:07:00 | n |
| 117762 | IIEES | BNDS | E | 19.2 | 0.47 | 2017-07-16 08:30:28 | 2017-07-17 04:07:00 | n |
| 117763 | IIEES | BNDS | N | 17.5 | 0.4 | 2017-07-16 08:30:28 | 2017-07-17 04:07:00 | n |
| 117764 | IIEES | ASAO | E | 19.6 | 0.47 | 2017-07-16 08:30:46 | 2017-07-17 04:07:00 | n |
| 117765 | IIEES | ASAO | N | 20.8 | 0.63 | 2017-07-16 08:30:51 | 2017-07-17 04:07:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pg | E | 2017-07-16 08:28:32 | -0.09 | y | 70.4 | 198 | |
| IIEES | AHRM | N | Sg | E | 2017-07-16 08:28:41 | 0.08 | y | 70.4 | 198 | |
| IIEES | GHIR | Z | Pg | E | 2017-07-16 08:28:51 | -0.24 | y | 194 | 132 | |
| IIEES | GHIR | E | Sg | E | 2017-07-16 08:29:15 | 0.1 | y | 194 | 132 | |
| IIEES | NASN | Z | Pn | E | 2017-07-16 08:29:16 | 0.05 | y | 389 | 18 | |
| IIEES | YZKH | Z | Pn | E | 2017-07-16 08:29:22 | 0.21 | y | 437 | 41 | |
| IIEES | KRBR | Z | Pn | E | 2017-07-16 08:29:31 | -0.13 | y | 510 | 82 | |
| IIEES | BNDS | Z | Pn | E | 2017-07-16 08:29:31 | 0.28 | y | 510 | 116 | |
| IIEES | ASAO | Z | Pn | E | 2017-07-16 08:29:40 | -0.01 | y | 580 | 346 | |
| IIEES | TABS | Z | Pn | E | 2017-07-16 08:29:55 | -0.13 | y | 705 | 48 | |
| IIEES | BSRN | Z | Pn | E | 2017-07-16 08:30:04 | -0.19 | y | 779 | 67 |
