Magnitude |
3.6 |
| Date & Time (UTC) | 2017-07-19 07:03:41.0 |
| Date & Time (Local) | 1396/4/28 11:33:41.0 |

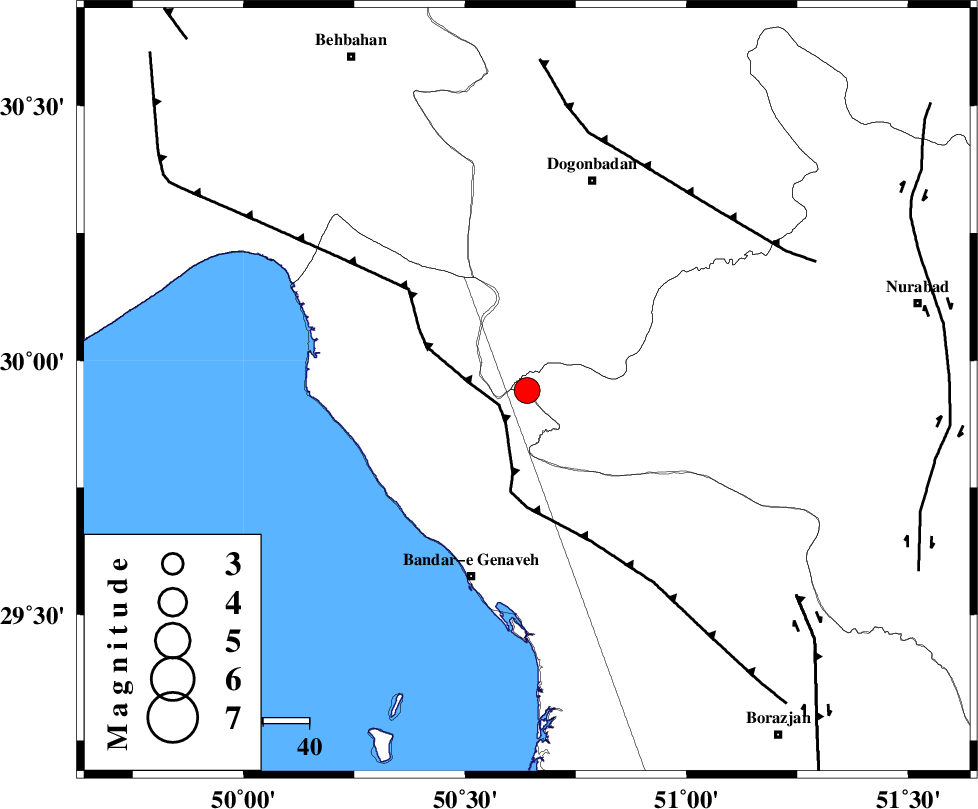

| Location | Lat:29.941 Lon: 50.64 |
| Region | Fars Province, 43 km North-East of Bandar-e genaveh |
Nearest Cities |
|
| 33 km North of Mohammad salehi, Bushehr Province | |
| 33 km South East of Siyahmakan-e bozorg, Bushehr Province | |
| 38 km North East of Emamhasan, Bushehr Province | |
| 43 km North East of Bandar-e genaveh, Bushehr Province | |
| 46 km North West of Chehar rustaee, Bushehr Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| ZFF3 (Length: 125 km) , Distance to epicenter: 7 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 34 km | |
| MISHAN_F (Length: 76 km) , Distance to epicenter: 56 km | |
| Number of Phases | 18 |
| RMS | 0.4 |
| Number of Stations | 16 |
| Error in Latitude | 3.9 km |
| Error in Longitude | 8.1 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 117796 | IIEES | AHRM | E | 839.8 | 0.4 | 2017-07-19 07:04:22 | 2017-07-19 07:56:00 | n |
| 117797 | IIEES | AHRM | N | 1055.1 | 0.35 | 2017-07-19 07:04:25 | 2017-07-19 07:56:00 | n |
| 117798 | IIEES | GHVR | E | 49.5 | 0.39 | 2017-07-19 07:05:50 | 2017-07-19 07:56:00 | n |
| 117799 | IIEES | GHVR | N | 43.3 | 0.49 | 2017-07-19 07:05:56 | 2017-07-19 07:56:00 | n |
| 117800 | IIEES | ASAO | E | 28.3 | 0.42 | 2017-07-19 07:05:53 | 2017-07-19 07:56:00 | n |
| 117801 | IIEES | KRBR | E | 16.1 | 0.6 | 2017-07-19 07:06:09 | 2017-07-19 07:56:00 | n |
| 117802 | IIEES | BNDS | N | 17.6 | 0.61 | 2017-07-19 07:06:07 | 2017-07-19 07:56:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pg | E | 2017-07-19 07:04:03 | -0.05 | y | 135 | 152 | |
| IIEES | AHRM | N | Sg | E | 2017-07-19 07:04:20 | 0.12 | y | 135 | 152 | |
| IIEES | GHIR | Z | Pn | E | 2017-07-19 07:04:24 | -0.13 | y | 293 | 128 | |
| IIEES | GHIR | N | S | E | 2017-07-19 07:04:56 | 0.13 | y | 293 | 128 | |
| IIEES | NASN | Z | Pn | E | 2017-07-19 07:04:35 | 0.18 | y | 378 | 33 | |
| IIEES | KHMZ | Z | Pn | E | 2017-07-19 07:04:41 | 0.37 | y | 426 | 352 | |
| IIEES | YZKH | Z | Pn | E | 2017-07-19 07:04:45 | -0.22 | y | 464 | 53 | |
| IIEES | GHVR | Z | Pn | E | 2017-07-19 07:04:51 | 0.67 | y | 507 | 6 | |
| IIEES | ASAO | Z | Pn | E | 2017-07-19 07:04:52 | 0.24 | y | 514 | 354 | |
| IIEES | KRBR | Z | Pn | E | 2017-07-19 07:05:01 | -0.1 | y | 591 | 88 | |
| IIEES | BNDS | Z | Pn | E | 2017-07-19 07:05:03 | -0.28 | y | 609 | 116 | |
| IIEES | DAMV | Z | Pn | E | 2017-07-19 07:05:07 | -0.48 | y | 643 | 11 | |
| IIEES | SNGE | Z | Pn | E | 2017-07-19 07:05:08 | -0.97 | y | 650 | 332 | |
| IIEES | CHTH | Z | Pn | E | 2017-07-19 07:05:11 | 0.53 | y | 663 | 4 | |
| IIEES | TABS | Z | Pn | E | 2017-07-19 07:05:19 | -0.37 | y | 738 | 55 | |
| IIEES | SHRO | Z | Pn | E | 2017-07-19 07:05:32 | -0.55 | y | 839 | 35 | |
| IIEES | BSRN | Z | Pn | E | 2017-07-19 07:05:33 | 0.54 | y | 841 | 72 | |
| IIEES | MRVT | Z | Pn | E | 2017-07-19 07:05:51 | -0.52 | y | 993 | 29 |
