Magnitude |
4.6 |
| Date & Time (UTC) | 2017-07-30 15:37:41.4 |
| Date & Time (Local) | 1396/5/8 20:07:41.4 |

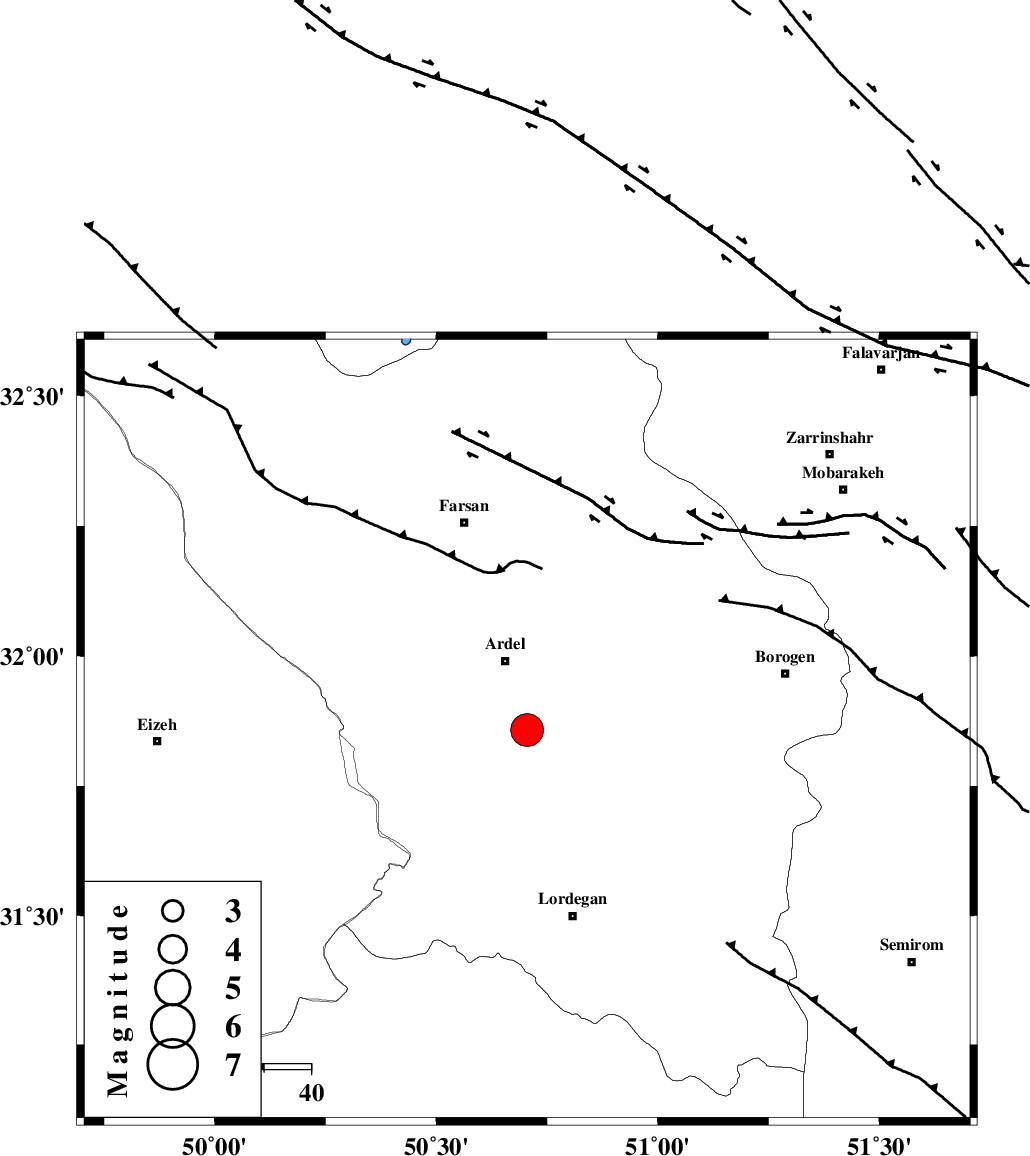

| Location | Lat:31.858 Lon: 50.705 |
| Region | Chaharmahal Bakhtiari Province, 16 km South of Ardel |
Nearest Cities |
|
| 10 km of Naghan, Chaharmahal Bakhtiari Province | |
| 12 km of Dupelan, Chaharmahal Bakhtiari Province | |
| 16 km South of Ardel, Chaharmahal Bakhtiari Province | |
| 19 km North East of Sarkhun, Chaharmahal Bakhtiari Province | |
| 23 km South West of Shalamzar, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 3 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 14 km | |
| ARDAL_F (Length: 170 km) , Distance to epicenter: 18 km | |
| Number of Phases | 25 |
| RMS | 0.4 |
| Number of Stations | 22 |
| Error in Latitude | 3 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 118184 | IIEES | KHMZ | N | 3231.4 | 0.9 | 2017-07-30 15:38:53 | 2017-07-31 03:31:00 | n |
| 118185 | IIEES | GHVR | E | 1564.6 | 0.56 | 2017-07-30 15:39:18 | 2017-07-31 03:31:00 | n |
| 118186 | IIEES | GHVR | N | 2725 | 0.78 | 2017-07-30 15:39:19 | 2017-07-31 03:31:00 | n |
| 118187 | IIEES | ASAO | N | 1313.1 | 0.47 | 2017-07-30 15:39:20 | 2017-07-31 03:31:00 | n |
| 118188 | IIEES | ASAO | E | 1176.8 | 0.71 | 2017-07-30 15:39:21 | 2017-07-31 03:31:00 | n |
| 118189 | IIEES | AHRM | N | 1537.9 | 0.48 | 2017-07-30 15:39:21 | 2017-07-31 03:31:00 | n |
| 118190 | IIEES | AHRM | E | 1163 | 0.57 | 2017-07-30 15:39:29 | 2017-07-31 03:31:00 | n |
| 118191 | IIEES | YZKH | E | 631.1 | 0.72 | 2017-07-30 15:39:43 | 2017-07-31 03:31:00 | n |
| 118192 | IIEES | DAMV | E | 543.1 | 0.57 | 2017-07-30 15:39:55 | 2017-07-31 03:31:00 | n |
| 118193 | IIEES | DAMV | N | 406.6 | 0.6 | 2017-07-30 15:40:01 | 2017-07-31 03:31:00 | n |
| 118194 | IIEES | THKV | E | 529.3 | 0.83 | 2017-07-30 15:40:15 | 2017-07-31 03:31:00 | n |
| 118195 | IIEES | THKV | N | 869.9 | 0.87 | 2017-07-30 15:40:17 | 2017-07-31 03:31:00 | n |
| 118196 | IIEES | GHIR | E | 793.7 | 0.57 | 2017-07-30 15:40:03 | 2017-07-31 03:31:00 | n |
| 118197 | IIEES | GHIR | N | 1050.6 | 0.79 | 2017-07-30 15:40:13 | 2017-07-31 03:31:00 | n |
| 118198 | IIEES | GIDE | E | 210.1 | 0.75 | 2017-07-30 15:40:34 | 2017-07-31 03:31:00 | n |
| 118199 | IIEES | GIDE | N | 208 | 0.7 | 2017-07-30 15:40:51 | 2017-07-31 03:31:00 | n |
| 118200 | IIEES | KRBR | N | 202.5 | 0.71 | 2017-07-30 15:40:48 | 2017-07-31 03:31:00 | n |
| 118201 | IIEES | KRBR | E | 183.4 | 0.71 | 2017-07-30 15:40:59 | 2017-07-31 03:31:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2017-07-30 15:38:16 | 0.16 | y | 220 | 342 | |
| IIEES | NASN | Z | Pn | E | 2017-07-30 15:38:16 | -0.25 | y | 224 | 62 | |
| IIEES | GHVR | Z | Pn | E | 2017-07-30 15:38:26 | 0.7 | y | 295 | 10 | |
| IIEES | ASAO | Z | Pn | E | 2017-07-30 15:38:27 | 0.42 | y | 305 | 348 | |
| IIEES | AHRM | Z | Pn | E | 2017-07-30 15:38:30 | 0.08 | y | 337 | 170 | |
| IIEES | YZKH | Z | Pn | E | 2017-07-30 15:38:35 | 0.18 | y | 371 | 80 | |
| IIEES | DAMV | Z | Pn | E | 2017-07-30 15:38:42 | -0.52 | y | 435 | 15 | |
| IIEES | THKV | Z | Pn | E | 2017-07-30 15:38:45 | -0.02 | y | 450 | 2 | |
| IIEES | CHTH | Z | Pn | E | 2017-07-30 15:38:44 | -0.48 | y | 451 | 5 | |
| IIEES | GHIR | Z | Pn | E | 2017-07-30 15:38:45 | 0.23 | y | 453 | 150 | |
| IIEES | SNGE | Z | Pn | E | 2017-07-30 15:38:46 | -1.83 | n | 4 | 475 | 320 |
| IIEES | ZNJK | Z | Pn | E | 2017-07-30 15:38:58 | -0.93 | y | 565 | 341 | |
| IIEES | GIDE | Z | Pn | E | 2017-07-30 15:38:59 | 0.4 | y | 567 | 353 | |
| IIEES | KRBR | Z | Pn | E | 2017-07-30 15:39:06 | 0.38 | y | 615 | 108 | |
| IIEES | TABS | Z | Pn | E | 2017-07-30 15:39:07 | 0.13 | y | 633 | 70 | |
| IIEES | SHRO | Z | Pn | E | 2017-07-30 15:39:12 | -0.02 | y | 673 | 45 | |
| IIEES | BNDS | Z | Pn | E | 2017-07-30 15:39:18 | -1.05 | y | 724 | 132 | |
| IIEES | BSRN | Z | Pn | E | 2017-07-30 15:39:28 | 0.02 | y | 796 | 87 | |
| IIEES | MRVT | Z | Pn | E | 2017-07-30 15:39:29 | -0.36 | y | 810 | 36 | |
| IIEES | GRMI | Z | Pn | E | 2017-07-30 15:39:30 | -0.01 | y | 813 | 342 | |
| IIEES | BJRD | Z | Pn | E | 2017-07-30 15:39:40 | 0.41 | y | 892 | 42 | |
| IIEES | SHRT | Z | Pn | E | 2017-07-30 15:39:43 | 0.03 | y | 920 | 75 | |
| IIEES | MAKU | Z | Pn | E | 2017-07-30 15:39:52 | -0.5 | y | 994 | 328 | |
| IIEES | ZHSF | Z | Pn | E | 2017-07-30 15:39:44 | -8.21 | n | 4 | 996 | 102 |
| IIEES | CHBR | Z | Pn | E | 2017-07-30 15:40:11 | -4.48 | n | 4 | 1180 | 124 |
