Magnitude |
2.8 |
| Date & Time (UTC) | 2017-08-01 16:26:48.7 |
| Date & Time (Local) | 1396/5/10 20:56:48.7 |

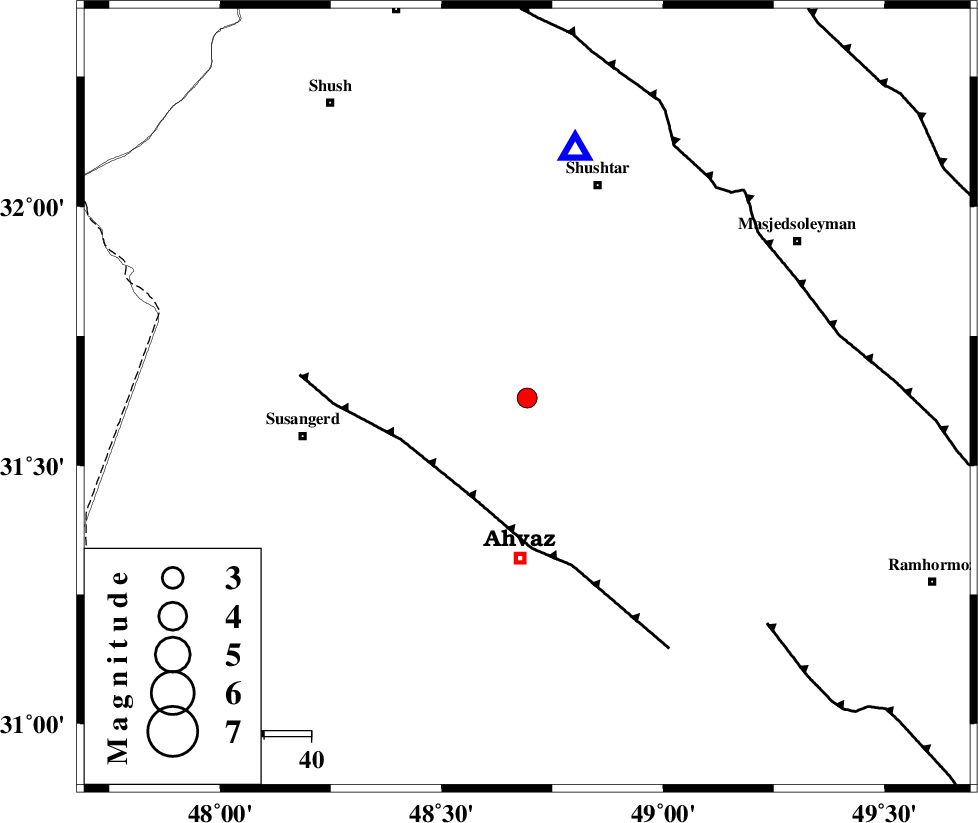

| Location | Lat:31.631 Lon: 48.693 |
| Region | Khoozestan Province, 35 km North of Ahvaz |
Nearest Cities |
|
| 18 km North West of Mollasani, Khoozestan Province | |
| 23 km North West of Talieh, Khoozestan Province | |
| 24 km North West of Veys, Khoozestan Province | |
| 28 km North East of Dehkade, Khoozestan Province | |
| 29 km South West of Arabhasan, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 24 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 60 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 71 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | 7.5 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 118289 | IIEES | ASAO | E | 17 | 0.63 | 2017-08-01 16:28:36 | 2017-08-02 07:11:00 | n |
| 118290 | IIEES | ASAO | N | 23.1 | 0.76 | 2017-08-01 16:28:36 | 2017-08-02 07:11:00 | n |
| 118291 | IIEES | GHVR | N | 19.6 | 0.68 | 2017-08-01 16:28:50 | 2017-08-02 07:11:00 | n |
| 118292 | IIEES | GHVR | E | 13.5 | 0.87 | 2017-08-01 16:28:52 | 2017-08-02 07:11:00 | n |
| 118293 | IIEES | DAMV | N | 3.9 | 0.55 | 2017-08-01 16:29:31 | 2017-08-02 07:11:00 | n |
| 118294 | IIEES | DAMV | E | 4.7 | 0.55 | 2017-08-01 16:29:34 | 2017-08-02 07:11:00 | n |
| 118295 | IIEES | GHIR | N | 3.3 | 0.4 | 2017-08-01 16:29:08 | 2017-08-02 07:11:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2017-08-01 16:27:29 | 0.12 | y | 262 | 27 | |
| IIEES | ASAO | Z | Pn | E | 2017-08-01 16:27:39 | -0.53 | y | 347 | 21 | |
| IIEES | GHVR | Z | Pn | E | 2017-08-01 16:27:46 | 0.97 | y | 396 | 36 | |
| IIEES | SNGE | Z | Pn | E | 2017-08-01 16:27:46 | 0 | y | 404 | 342 | |
| IIEES | NASN | Z | Pn | E | 2017-08-01 16:27:47 | -0.02 | y | 409 | 70 | |
| IIEES | CHTH | Z | Pn | E | 2017-08-01 16:28:01 | -0.29 | y | 525 | 25 | |
| IIEES | DAMV | Z | Pn | E | 2017-08-01 16:28:07 | 4.51 | n | 4 | 538 | 34 |
| IIEES | GHIR | Z | Pn | E | 2017-08-01 16:28:05 | 0.18 | y | 556 | 131 | |
| IIEES | YZKH | Z | Pn | E | 2017-08-01 16:28:05 | -0.59 | y | 564 | 80 |
