Magnitude |
2.6 |
| Date & Time (UTC) | 2017-08-10 22:11:03.5 |
| Date & Time (Local) | 1396/5/20 02:41:03.5 |

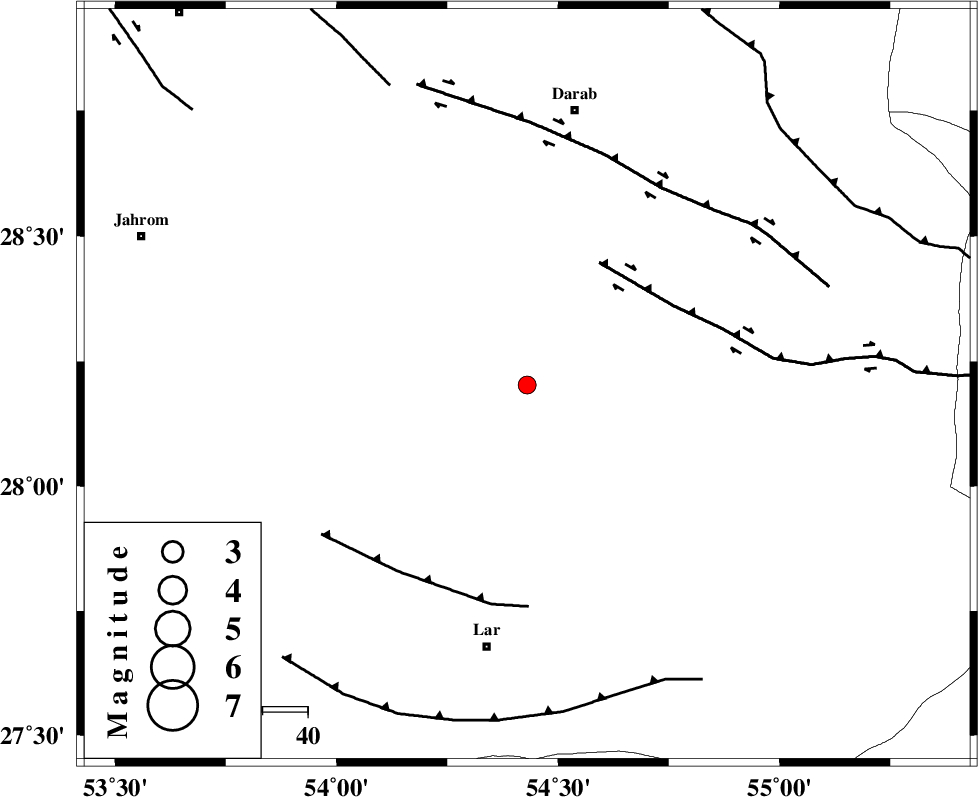

| Location | Lat:28.203 Lon: 54.43 |
| Region | Fars Province, 59 km North of Lar |
Nearest Cities |
|
| 15 km South of Shahr-e pir, Fars Province | |
| 17 km South of Hajiabad, Fars Province | |
| 32 km South East of Dabiran, Fars Province | |
| 39 km North of Dehkuyeh, Fars Province | |
| 51 km South of Nasrovan, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 32 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 49 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 53 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | 4.6 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 118445 | IIEES | GHIR | E | 106.8 | 0.32 | 2017-08-10 22:11:48 | 2017-08-12 06:58:00 | n |
| 118446 | IIEES | GHIR | N | 100.5 | 0.32 | 2017-08-10 22:11:53 | 2017-08-12 06:58:00 | n |
| 118447 | IIEES | KRBR | N | 16.1 | 0.41 | 2017-08-10 22:12:28 | 2017-08-12 06:58:00 | n |
| 118448 | IIEES | KRBR | E | 24.4 | 0.62 | 2017-08-10 22:12:40 | 2017-08-12 06:58:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2017-08-10 22:11:27 | -0.16 | y | 142 | 274 | |
| IIEES | GHIR | N | Sg | E | 2017-08-10 22:11:44 | 0.15 | y | 142 | 274 | |
| IIEES | BNDS | Z | Pg | E | 2017-08-10 22:11:35 | -0.16 | y | 193 | 117 | |
| IIEES | BNDS | N | S | E | 2017-08-10 22:11:57 | 0.12 | y | 193 | 117 | |
| IIEES | KRBR | Z | Pn | E | 2017-08-10 22:11:48 | 0.13 | y | 301 | 48 | |
| IIEES | YZKH | Z | Pn | E | 2017-08-10 22:12:09 | -0.09 | y | 464 | 2 |
