Magnitude |
3.6 |
| Date & Time (UTC) | 2017-08-11 18:08:24.4 |
| Date & Time (Local) | 1396/5/20 22:38:24.4 |

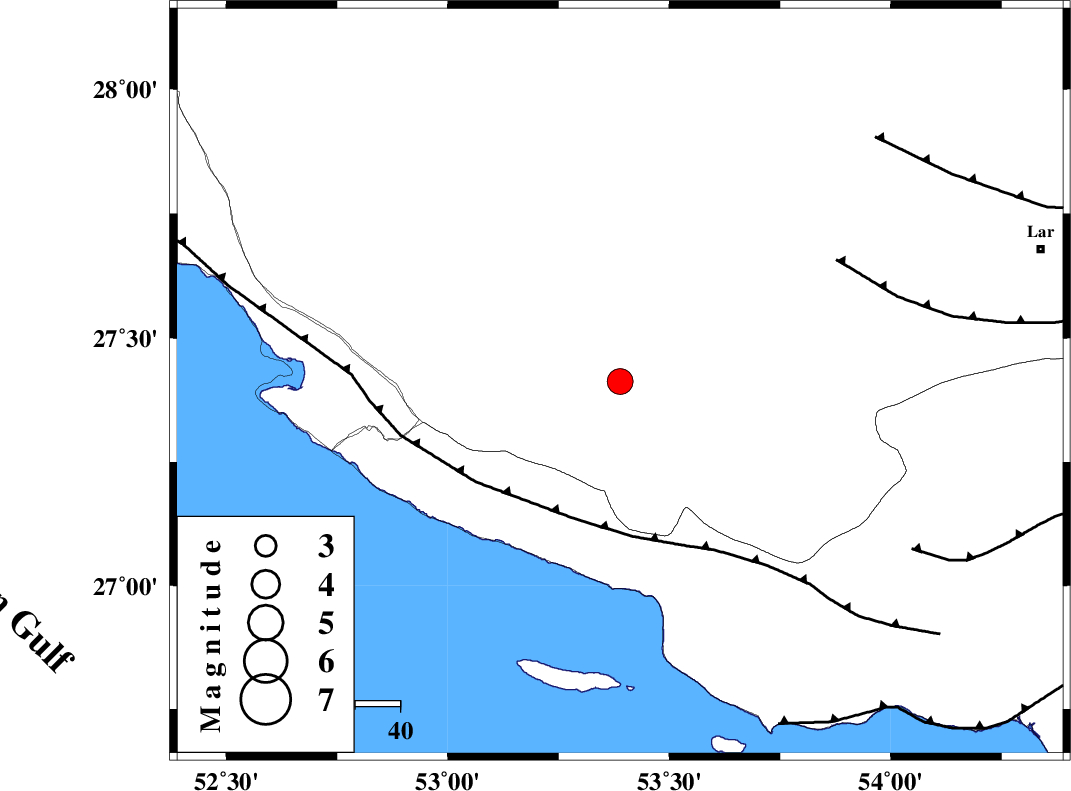

| Location | Lat:27.412 Lon: 53.389 |
| Region | Fars Province, 24 km -East of Lamerd |
Nearest Cities |
|
| 13 km West of Beyram, Fars Province | |
| 23 km South West of Fedagh, Fars Province | |
| 24 km North East of Lamerd, Fars Province | |
| 31 km North West of Ashkenan, Fars Province | |
| 41 km East of Khoozi, Fars Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 32 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 55 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 75 km | |
| Number of Phases | 13 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | 7 km |
| Error in Longitude | 4 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 118452 | IIEES | GHIR | E | 1225.2 | 0.44 | 2017-08-11 18:09:07 | 2017-08-12 06:58:00 | n |
| 118453 | IIEES | GHIR | N | 1402.4 | 0.38 | 2017-08-11 18:09:07 | 2017-08-12 06:58:00 | n |
| 118454 | IIEES | AHRM | N | 276.7 | 0.4 | 2017-08-11 18:09:48 | 2017-08-12 06:58:00 | n |
| 118455 | IIEES | AHRM | E | 306.2 | 0.56 | 2017-08-11 18:09:59 | 2017-08-12 06:58:00 | n |
| 118456 | IIEES | BNDS | E | 257.9 | 0.49 | 2017-08-11 18:09:52 | 2017-08-12 06:58:00 | n |
| 118457 | IIEES | BNDS | N | 204.4 | 0.49 | 2017-08-11 18:10:02 | 2017-08-12 06:58:00 | n |
| 118458 | IIEES | KRBR | N | 74.7 | 0.36 | 2017-08-11 18:10:19 | 2017-08-12 06:58:00 | n |
| 118459 | IIEES | KRBR | E | 72.6 | 0.47 | 2017-08-11 18:10:49 | 2017-08-12 06:58:00 | n |
| 118460 | IIEES | NASN | N | 38.8 | 0.48 | 2017-08-11 18:10:49 | 2017-08-12 06:58:00 | n |
| 118461 | IIEES | NASN | E | 24.2 | 0.52 | 2017-08-11 18:10:51 | 2017-08-12 06:58:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2017-08-11 18:08:42 | -0.02 | y | 105 | 338 | |
| IIEES | AHRM | Z | Pn | E | 2017-08-11 18:09:05 | 0.14 | y | 261 | 309 | |
| IIEES | BNDS | Z | Pn | E | 2017-08-11 18:09:06 | -0.1 | y | 275 | 90 | |
| IIEES | KRBR | Z | Pn | E | 2017-08-11 18:09:27 | 0.17 | y | 436 | 48 | |
| IIEES | YZKH | Z | P | E | 2017-08-11 18:09:43 | 0.38 | y | 564 | 12 | |
| IIEES | NASN | Z | Pn | E | 2017-08-11 18:09:47 | -0.11 | y | 600 | 355 | |
| IIEES | BSRN | Z | Pn | E | 2017-08-11 18:10:06 | 0.46 | y | 750 | 46 | |
| IIEES | KHMZ | Z | Pn | E | 2017-08-11 18:10:09 | -0.07 | y | 775 | 336 | |
| IIEES | TABS | Z | P | E | 2017-08-11 18:10:08 | -0.57 | y | 779 | 26 | |
| IIEES | ASAO | Z | Pn | E | 2017-08-11 18:10:19 | 0.17 | y | 854 | 339 | |
| IIEES | SHRT | Z | P | E | 2017-08-11 18:10:31 | -0.17 | y | 957 | 42 | |
| IIEES | SHRO | Z | P | E | 2017-08-11 18:10:34 | -0.58 | y | 985 | 14 | |
| IIEES | SNGE | Z | P | E | 2017-08-11 18:10:39 | -0.85 | y | 1027 | 327 |
