Magnitude |
3.6 |
| Date & Time (UTC) | 2017-08-16 01:54:41.7 |
| Date & Time (Local) | 1396/5/25 06:24:41.7 |

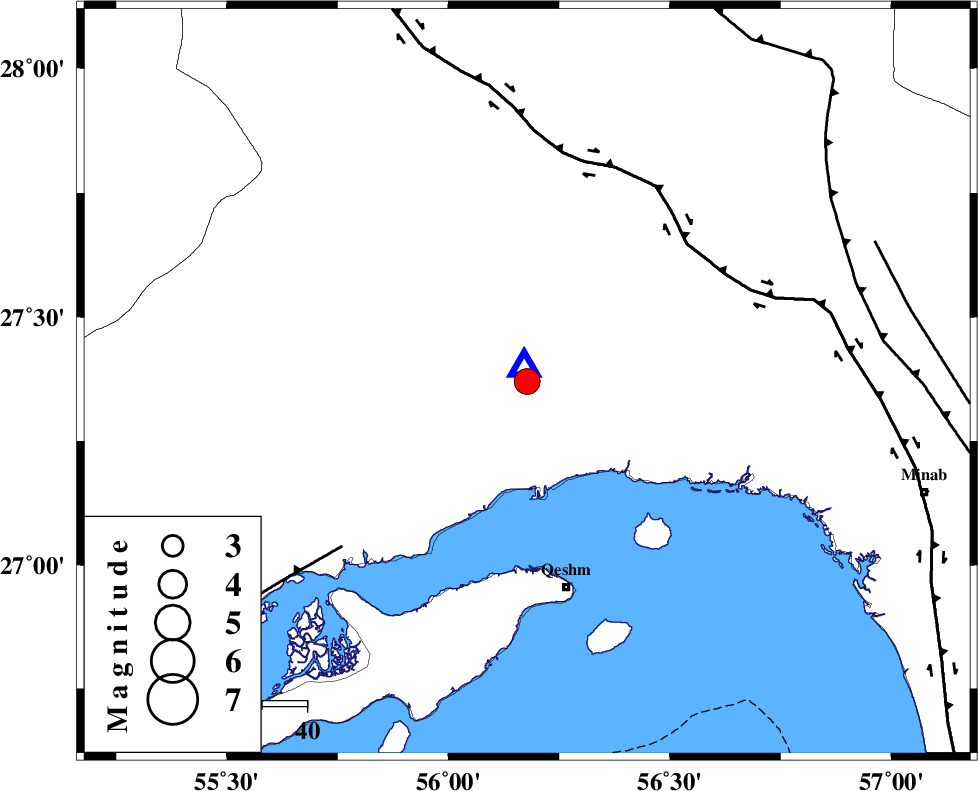

| Location | Lat:27.37 Lon: 56.178 |
| Region | Hormozgan Province, 23 km North-West of Bandar-e abbas |
Nearest Cities |
|
| 23 km North West of Bandar-e abbas, Hormozgan Province | |
| 40 km South East of Fin, Hormozgan Province | |
| 47 km North of Qeshm, Hormozgan Province | |
| 67 km North East of Suza, Hormozgan Province | |
| 72 km South of Fareqan, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 47 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 55 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 77 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | 5.1 km |
| Error in Longitude | 7.6 km |
| Error in Depth | 3.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 118608 | IIEES | BNDS | N | 61649.6 | 0.18 | 2017-08-16 01:54:45 | 2017-08-16 03:43:00 | n |
| 118609 | IIEES | BNDS | E | 55189.7 | 0.28 | 2017-08-16 01:54:45 | 2017-08-16 03:43:00 | n |
| 118610 | IIEES | KRBR | E | 124.4 | 0.64 | 2017-08-16 01:56:08 | 2017-08-16 03:43:00 | n |
| 118611 | IIEES | KRBR | N | 79.4 | 0.4 | 2017-08-16 01:56:08 | 2017-08-16 03:43:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BNDS | Z | Pg | E | 2017-08-16 01:54:44 | -0.44 | y | 3.37 | 348 | |
| IIEES | KRBR | Z | Pn | E | 2017-08-16 01:55:26 | -0.02 | y | 295 | 11 | |
| IIEES | KRBR | N | Sg | E | 2017-08-16 01:56:04 | -0.21 | y | 295 | 11 | |
| IIEES | GHIR | Z | Pn | E | 2017-08-16 01:55:30 | 0.05 | y | 330 | 289 | |
| IIEES | YZKH | Z | Pn | E | 2017-08-16 01:56:01 | 0.26 | y | 577 | 345 | |
| IIEES | BSRN | Z | Pn | E | 2017-08-16 01:56:02 | 0.53 | y | 584 | 29 | |
| IIEES | NASN | Z | Pn | E | 2017-08-16 01:56:14 | 0.1 | y | 684 | 332 | |
| IIEES | TABS | Z | Pn | E | 2017-08-16 01:56:16 | 0.28 | y | 702 | 7 |
