eventspec – IIEES Earthquake Process Program

Magnitude	2.8
Date & Time (UTC)	2017-09-04 23:55:59.5
Date & Time (Local)	1396/6/14 04:25:59.5

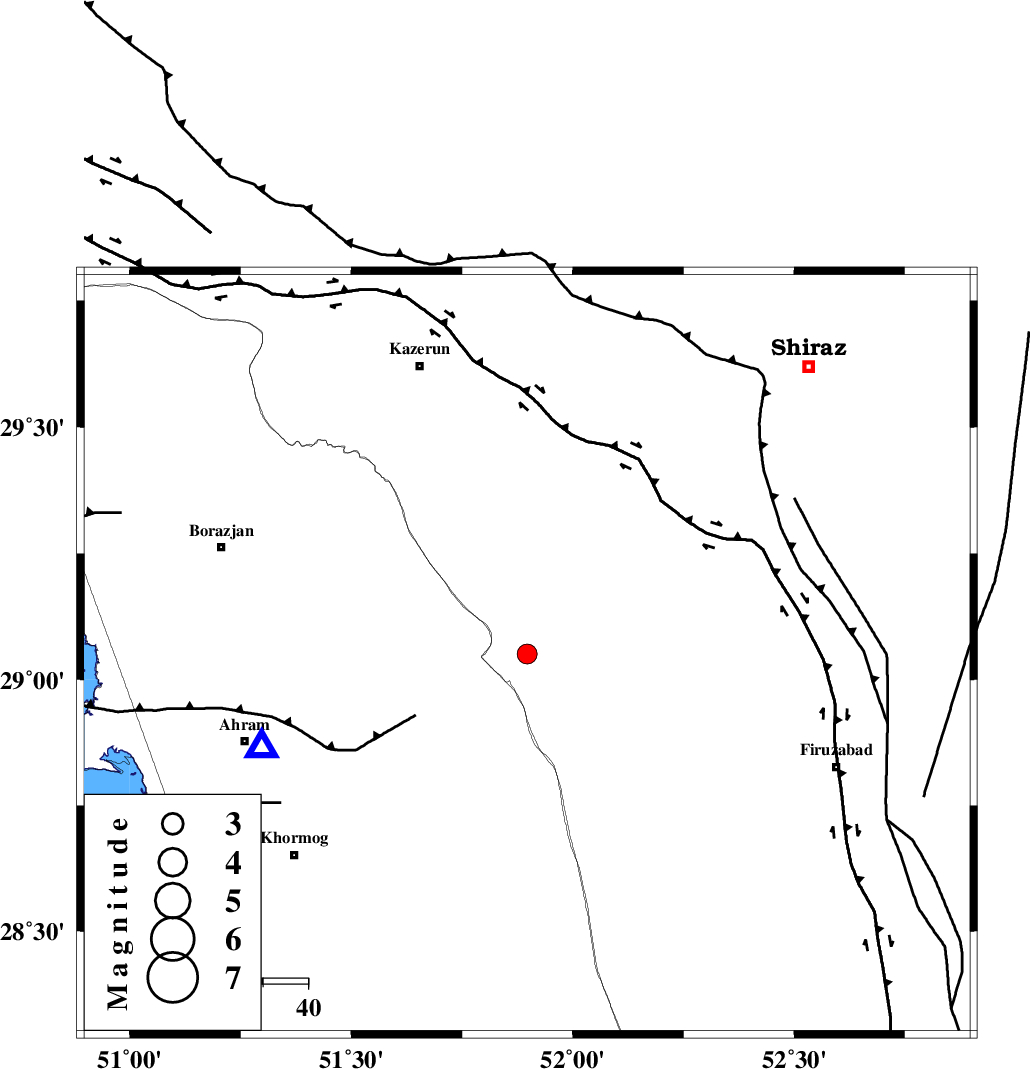

Location	Lat:29.051 Lon: 51.897
Region	Fars Province, 27 km North-West of Farashband
Nearest Cities
	12 km West of Nujin, Fars Province
	21 km North West of Aviz, Fars Province
	22 km South of Jareh, Fars Province
	26 km South of Baladeh, Fars Province
	27 km North West of Farashband, Fars Province
Depth	14 km
Agency
Faults within 150 km:
	KAREBASS_F (Length: 98 km) , Distance to epicenter: 32 km
	QIR_F (Length: 130 km) , Distance to epicenter: 49 km
	BORAZJAN_F (Length: 168 km) , Distance to epicenter: 57 km
Number of Phases	7
RMS	0.1
Number of Stations	5
Error in Latitude	4.5 km
Error in Longitude	1.4 km
Error in Depth	9.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
119290	IIEES	AHRM	N	543.5	0.4	2017-09-04 23:56:27	2017-09-05 06:02:00	n
119291	IIEES	AHRM	E	450	0.35	2017-09-04 23:56:29	2017-09-05 06:02:00	n
119292	IIEES	GHIR	N	296.1	0.28	2017-09-04 23:56:40	2017-09-05 06:02:00	n
119293	IIEES	GHIR	E	257.5	0.28	2017-09-04 23:56:44	2017-09-05 06:02:00	n
119294	IIEES	KRBR	N	6.6	0.41	2017-09-04 23:58:23	2017-09-05 06:02:00	n
119295	IIEES	KRBR	E	7.6	0.41	2017-09-04 23:58:27	2017-09-05 06:02:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Distance	Azimuth
IIEES	AHRM	Z	Pg	E	2017-09-04 23:56:10	-0.03	y	62	251
IIEES	AHRM	N	Sg	E	2017-09-04 23:56:18	0.04	y	62	251
IIEES	GHIR	Z	Pg	E	2017-09-04 23:56:22	0.01	y	136	128
IIEES	GHIR	N	Sg	E	2017-09-04 23:56:38	-0.04	y	136	128
IIEES	NASN	Z	Pn	E	2017-09-04 23:57:00	-0.14	y	425	12
IIEES	KRBR	Z	Pn	E	2017-09-04 23:57:07	0.14	y	483	76
IIEES	TABS	Z	Pn	E	2017-09-04 23:57:35	0.1	y	712	43
