Magnitude |
2.8 |
| Date & Time (UTC) | 2017-09-08 22:05:44.7 |
| Date & Time (Local) | 1396/6/18 02:35:44.7 |

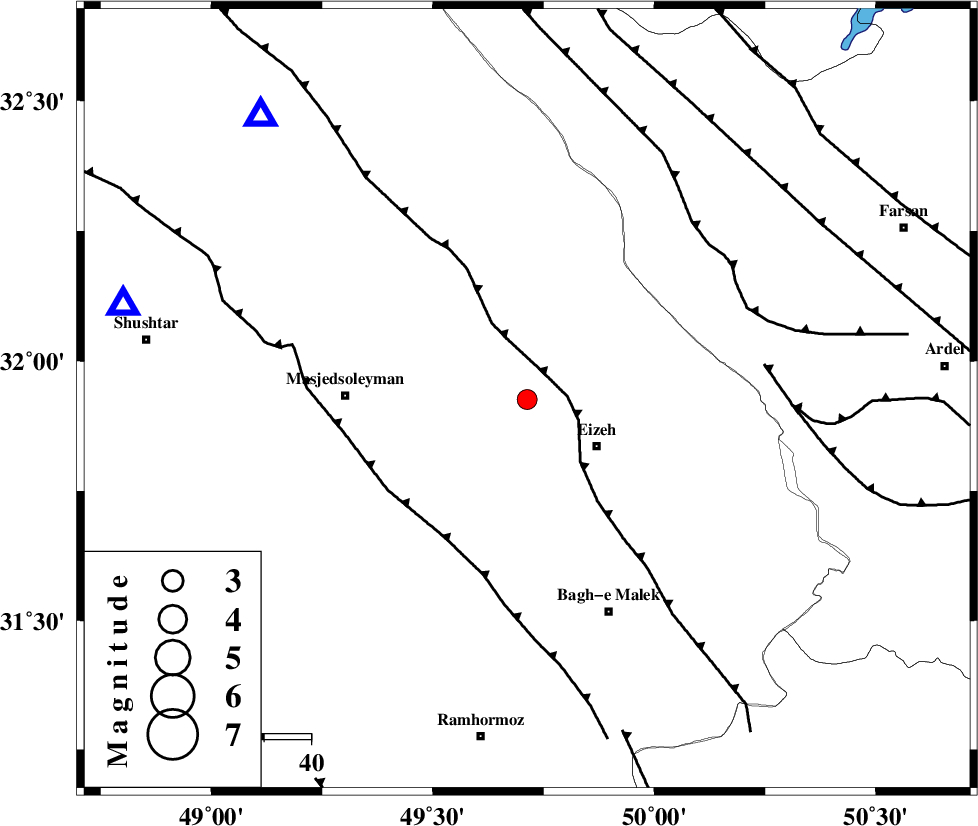

| Location | Lat:31.926 Lon: 49.713 |
| Region | Khoozestan Province, 18 km -West of Izeh |
Nearest Cities |
|
| 11 km North of Rasvand, Khoozestan Province | |
| 13 km West of Torshak, Khoozestan Province | |
| 17 km North of Chenarestan, Khoozestan Province | |
| 18 km North West of Izeh, Khoozestan Province | |
| 37 km North West of Ghaleh tal, Khoozestan Province | |
| Depth | 37 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 7 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 34 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 51 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 2.9 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 119393 | IIEES | KHMZ | N | 55.5 | 0.43 | 2017-09-08 22:06:44 | 2017-09-10 04:56:00 | n |
| 119394 | IIEES | KHMZ | E | 118.6 | 0.53 | 2017-09-08 22:06:44 | 2017-09-10 04:56:00 | n |
| 119395 | IIEES | ASAO | N | 23.9 | 0.68 | 2017-09-08 22:07:13 | 2017-09-10 04:56:00 | n |
| 119396 | IIEES | ASAO | E | 29.3 | 0.59 | 2017-09-08 22:07:14 | 2017-09-10 04:56:00 | n |
| 119397 | IIEES | GHVR | E | 31.2 | 0.93 | 2017-09-08 22:07:17 | 2017-09-10 04:56:00 | n |
| 119398 | IIEES | GHVR | N | 26.7 | 0.56 | 2017-09-08 22:07:17 | 2017-09-10 04:56:00 | n |
| 119399 | IIEES | AHRM | N | 22 | 0.47 | 2017-09-08 22:07:14 | 2017-09-10 04:56:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2017-09-08 22:06:15 | -0.25 | y | 202 | 7 | |
| IIEES | KHMZ | N | Sg | E | 2017-09-08 22:06:41 | -0.02 | y | 202 | 7 | |
| IIEES | ASAO | Z | Pn | E | 2017-09-08 22:06:26 | -0.05 | y | 292 | 6 | |
| IIEES | NASN | Z | Pn | E | 2017-09-08 22:06:28 | -0.14 | y | 307 | 71 | |
| IIEES | NASN | N | S | E | 2017-09-08 22:07:00 | -0.03 | y | 307 | 71 | |
| IIEES | GHVR | Z | Pn | E | 2017-09-08 22:06:30 | 0.5 | y | 317 | 26 | |
| IIEES | AHRM | N | Pn | E | 2017-09-08 22:06:36 | 0.02 | y | 372 | 155 |
