eventspec – IIEES Earthquake Process Program

Magnitude	2.7
Date & Time (UTC)	2017-09-13 13:41:21.4
Date & Time (Local)	1396/6/22 18:11:21.4

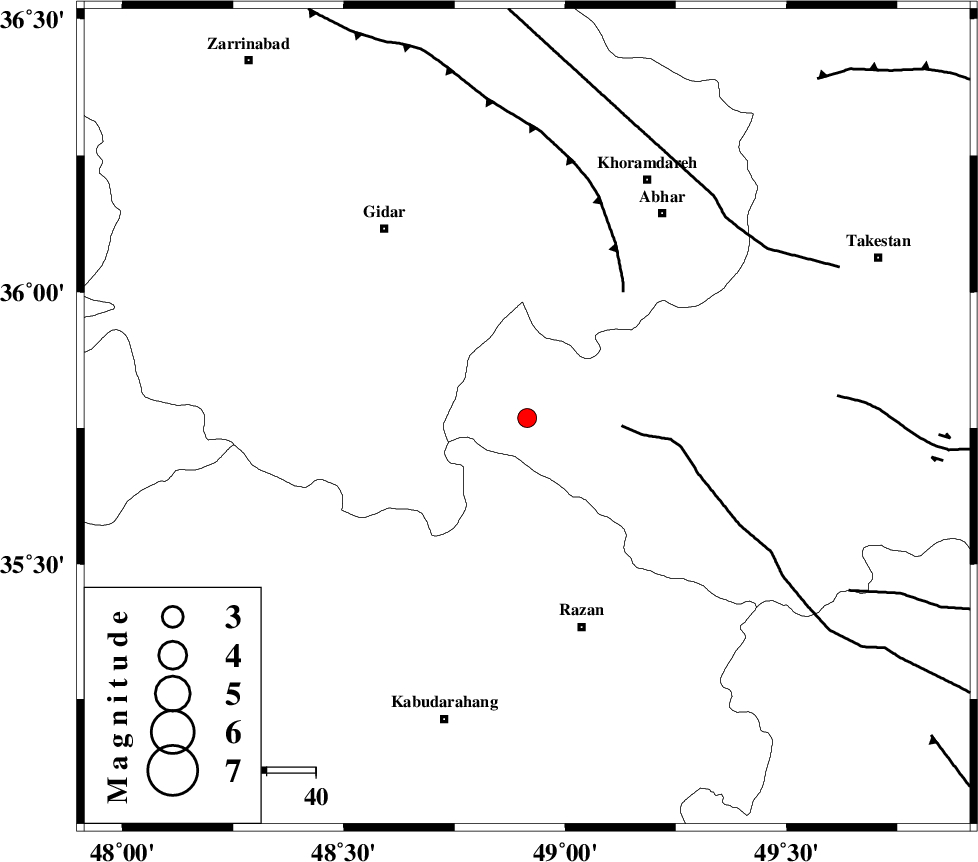

Location	Lat:35.769 Lon: 48.914
Region	Ghazvin Province, 44 km North-West of Razan
Nearest Cities
	24 km North East of Kahla, Zanjan Province
	30 km North East of Khorandeh, Hamedan Province
	34 km North West of Ab-e garm, Ghazvin Province
	36 km North West of Avaj, Ghazvin Province
	38 km North of Damag, Hamedan Province
Depth	14 km
Agency
Faults within 150 km:
	KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 19 km
	SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 32 km
	ZANJAN_F (Length: 137 km) , Distance to epicenter: 58 km
Number of Phases	13
RMS	0.4
Number of Stations	11
Error in Latitude	3.1 km
Error in Longitude	3.6 km
Error in Depth	6.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
119515	IIEES	GIDE	N	249.7	0.38	2017-09-13 13:42:11	2017-09-16 07:06:00	n
119516	IIEES	GIDE	E	176.2	0.38	2017-09-13 13:42:12	2017-09-16 07:06:00	n
119517	IIEES	SNGE	N	120.1	0.55	2017-09-13 13:42:09	2017-09-16 07:06:00	n
119518	IIEES	SNGE	E	66.2	0.47	2017-09-13 13:42:10	2017-09-16 07:06:00	n
119519	IIEES	THKV	E	58.7	0.24	2017-09-13 13:42:21	2017-09-16 07:06:00	n
119520	IIEES	THKV	N	66.7	0.38	2017-09-13 13:42:22	2017-09-16 07:06:00	n
119521	IIEES	KHMZ	E	36.2	0.38	2017-09-13 13:42:36	2017-09-16 07:06:00	n
119522	IIEES	KHMZ	N	50.7	0.53	2017-09-13 13:42:37	2017-09-16 07:06:00	n
119523	IIEES	GHVR	N	29.6	0.68	2017-09-13 13:42:43	2017-09-16 07:06:00	n
119524	IIEES	GHVR	E	31.5	0.49	2017-09-13 13:42:44	2017-09-16 07:06:00	n
119525	IIEES	DAMV	N	30.8	0.69	2017-09-13 13:42:47	2017-09-16 07:06:00	n
119526	IIEES	DAMV	E	35.3	0.44	2017-09-13 13:42:49	2017-09-16 07:06:00	n
119527	IIEES	ILBA	E	8.4	0.68	2017-09-13 13:43:08	2017-09-16 07:06:00	n
119528	IIEES	GRMI	N	9.1	0.58	2017-09-13 13:43:09	2017-09-16 07:06:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Distance	Azimuth
IIEES	ZNJK	Z	Pg	E	2017-09-13 13:41:38	-0.39	y	102	348
IIEES	GIDE	Z	Pg	E	2017-09-13 13:41:47	0.38	y	156	35
IIEES	GIDE	N	Sg	E	2017-09-13 13:42:06	0.24	y	156	35
IIEES	SNGE	Z	Pg	E	2017-09-13 13:41:47	-0.35	y	161	243
IIEES	ASAO	Z	Pg	E	2017-09-13 13:41:49	0.06	y	169	143
IIEES	THKV	Z	Pg	E	2017-09-13 13:41:50	-0.17	y	178	84
IIEES	CHTH	Z	Pn	E	2017-09-13 13:41:53	-0.76	y	200	85
IIEES	CHTH	N	Sg	E	2017-09-13 13:42:18	-0.54	y	200	85
IIEES	KHMZ	Z	Pn	E	2017-09-13 13:41:59	0.09	y	245	157
IIEES	GHVR	Z	Pn	E	2017-09-13 13:42:01	0.67	y	256	123
IIEES	DAMV	Z	Pn	E	2017-09-13 13:42:04	0.55	y	277	92
IIEES	ILBA	Z	Pn	E	2017-09-13 13:42:11	0.05	y	344	227
IIEES	GRMI	Z	Pn	E	2017-09-13 13:42:12	0.24	y	349	345
