Magnitude
 2.6
Date & Time (UTC) 2017-09-17 02:13:33.0
Date & Time (Local) 1396/6/26  06:43:33.0

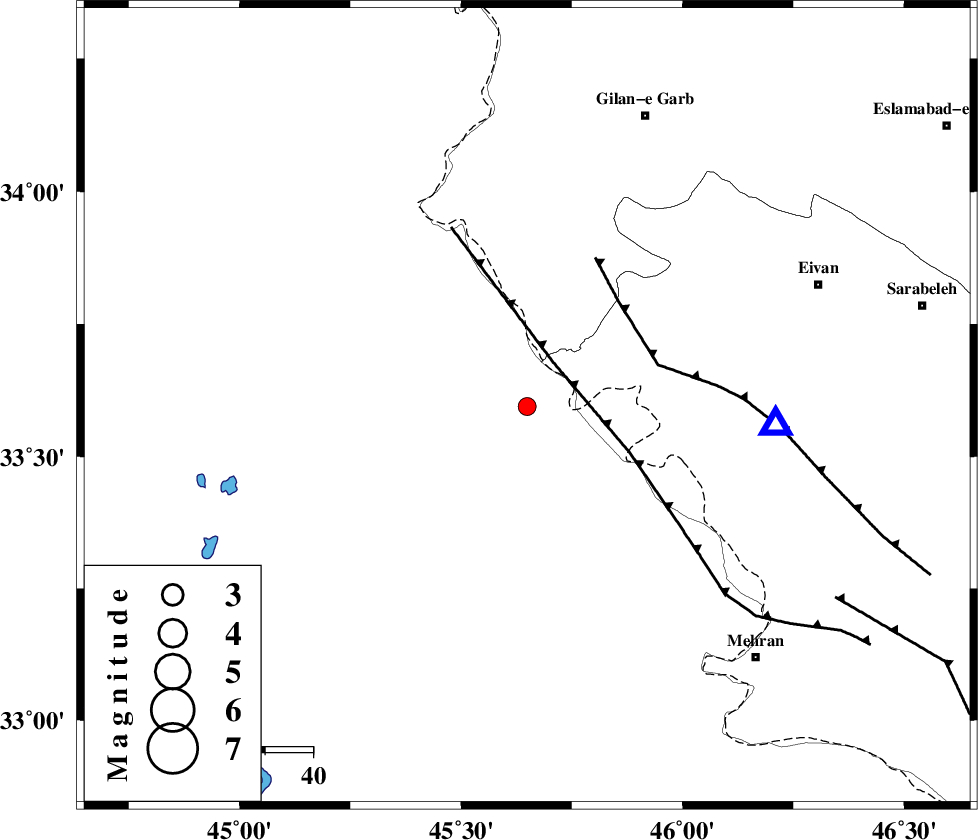

Location Lat:33.595 Lon: 45.649
Region Iraq, 66 km South-West of Gilan-E-Gharb
Nearest Cities
32 km South of Sumar, Kermanshah Province
52 km North West of Salehabad, Ilam Province
56 km South West of Nian, Kermanshah Province
58 km West of Chavar, Ilam Province
59 km South West of Teran, Ilam Province
Depth 14 km
Agency
Faults within 150 km:
ZFF4 (Length: 128 km) , Distance to epicenter: 11 km
MFF7 (Length: 99 km) , Distance to epicenter: 29 km
MFF6 (Length: 144 km) , Distance to epicenter: 76 km
Number of Phases 6
RMS 0.1
Number of Stations 4
Error in Latitude 2.7 km
Error in Longitude 5.9 km
Error in Depth 6.4 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
119583IIEESSNGEN 39.80.412017-09-17 02:14:422017-09-17 04:51:00n
119584IIEESSNGEE 35.40.472017-09-17 02:14:442017-09-17 04:51:00n
119585IIEESKHMZE 7.90.22017-09-17 02:15:162017-09-17 04:51:00n
119586IIEESASAON 5.90.42017-09-17 02:15:222017-09-17 04:51:00n

Phase

AgencyStationComponentPhase TypePhase QualityArrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESILBAZ Pg E2017-09-17 02:13:42-0.13y51.986
IIEESILBAN Sg E2017-09-17 02:13:490.05y51.986
IIEESSNGEZ Pn E2017-09-17 02:14:090.08y22843
IIEESSNGEN Sg E2017-09-17 02:14:37-0.02y22843
IIEESKHMZZ Pn E2017-09-17 02:14:300.21y40087
IIEESASAOZ Pn E2017-09-17 02:14:32-0.2y41874
