Magnitude |
4.8 |
| Date & Time (UTC) | 2017-09-19 13:26:10.1 |
| Date & Time (Local) | 1396/6/28 17:56:10.1 |

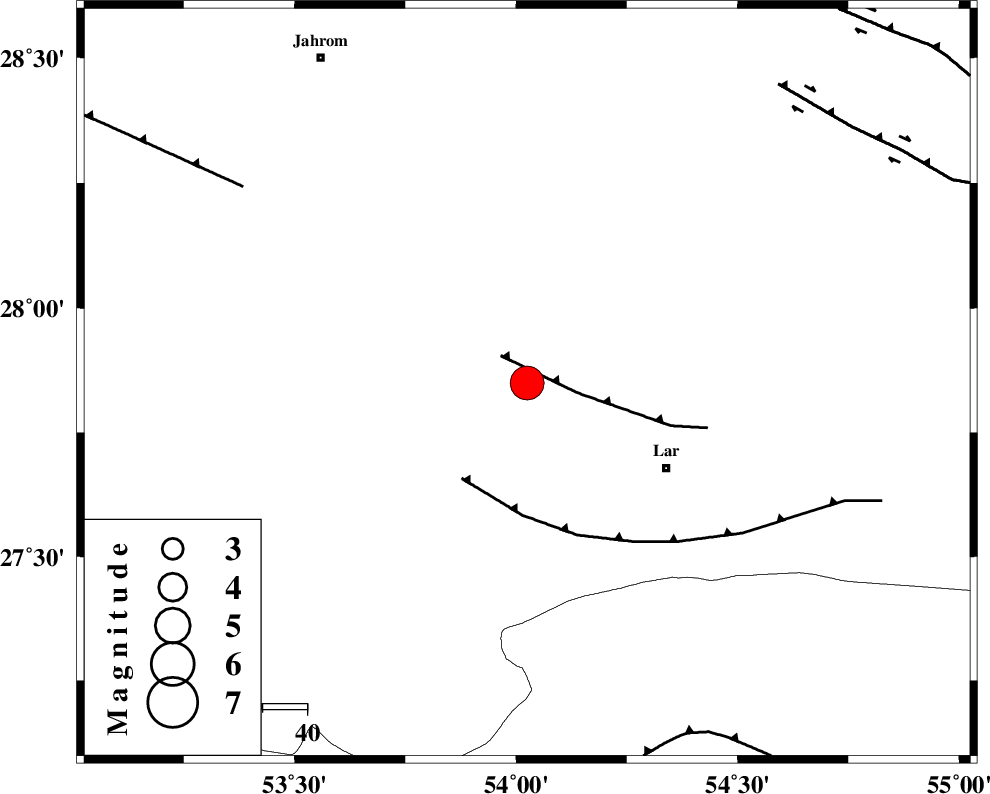

| Location | Lat:27.849 Lon: 54.025 |
| Region | Fars Province, 36 km North-West of Lar |
Nearest Cities |
|
| 10 km North of Avaz, Fars Province | |
| 23 km East of Kureh, Fars Province | |
| 26 km North West of Grash, Fars Province | |
| 34 km North East of Fishur, Fars Province | |
| 36 km North West of Lar, Fars Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| BERIZ_F (Length: 49 km) , Distance to epicenter: 9 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 26 km | |
| QIR_F (Length: 130 km) , Distance to epicenter: 77 km | |
| Number of Phases | 22 |
| RMS | 0.6 |
| Number of Stations | 19 |
| Error in Latitude | 9.6 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 119661 | IIEES | BNDS | E | 6682.5 | 0.47 | 2017-09-19 13:27:32 | 2017-09-20 05:01:00 | n |
| 119662 | IIEES | BNDS | N | 5688 | 0.63 | 2017-09-19 13:27:39 | 2017-09-20 05:01:00 | n |
| 119663 | IIEES | KRBR | E | 2109.7 | 0.66 | 2017-09-19 13:28:02 | 2017-09-20 05:01:00 | n |
| 119664 | IIEES | KRBR | N | 2526.9 | 0.66 | 2017-09-19 13:28:04 | 2017-09-20 05:01:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2017-09-19 13:26:30 | 0.92 | y | 113 | 296 | |
| IIEES | BNDS | Z | Pn | E | 2017-09-19 13:26:44 | 0.14 | y | 218 | 103 | |
| IIEES | BNDS | N | Sg | E | 2017-09-19 13:27:11 | -0.45 | y | 218 | 103 | |
| IIEES | AHRM | E | Pn | E | 2017-09-19 13:26:53 | -0.08 | y | 290 | 293 | |
| IIEES | AHRM | E | Sg | E | 2017-09-19 13:27:31 | -0.51 | y | 290 | 293 | |
| IIEES | KRBR | Z | Pn | E | 2017-09-19 13:27:03 | 1.12 | y | 356 | 48 | |
| IIEES | YZKH | Z | Pn | E | 2017-09-19 13:27:21 | 0.74 | y | 506 | 6 | |
| IIEES | NASN | Z | Pn | E | 2017-09-19 13:27:27 | 0.08 | y | 561 | 348 | |
| IIEES | BSRN | Z | Pn | E | 2017-09-19 13:27:40 | -0.65 | y | 671 | 46 | |
| IIEES | TABS | Z | Pn | E | 2017-09-19 13:27:45 | -0.39 | y | 708 | 24 | |
| IIEES | GHVR | Z | Pn | E | 2017-09-19 13:27:54 | -0.19 | y | 782 | 341 | |
| IIEES | ASAO | Z | Pn | E | 2017-09-19 13:28:00 | -0.57 | y | 835 | 334 | |
| IIEES | SHRT | Z | Pn | E | 2017-09-19 13:28:07 | 0.57 | y | 879 | 41 | |
| IIEES | DAMV | Z | Pn | E | 2017-09-19 13:28:07 | -0.5 | y | 885 | 348 | |
| IIEES | SHRO | Z | Pn | E | 2017-09-19 13:28:11 | -0.94 | y | 924 | 11 | |
| IIEES | CHTH | Z | Pn | E | 2017-09-19 13:28:12 | -0.96 | y | 935 | 344 | |
| IIEES | THKV | Z | Pn | E | 2017-09-19 13:28:14 | -0.64 | y | 943 | 342 | |
| IIEES | ILBA | Z | Pn | E | 2017-09-19 13:28:15 | -4.24 | n | 4 | 985 | 312 |
| IIEES | GIDE | Z | Pn | E | 2017-09-19 13:28:31 | -0.43 | y | 1078 | 340 | |
| IIEES | ZNJK | Z | Pn | E | 2017-09-19 13:28:33 | -1.25 | y | 1100 | 334 | |
| IIEES | MRVT | Z | Pn | E | 2017-09-19 13:28:34 | 0.03 | y | 1105 | 10 | |
| IIEES | BJRD | Z | Pn | E | 2017-09-19 13:28:39 | 0.21 | y | 1138 | 15 |
