eventspec – IIEES Earthquake Process Program

Magnitude	2.9
Date & Time (UTC)	2017-09-20 02:38:00.9
Date & Time (Local)	1396/6/29 07:08:00.9

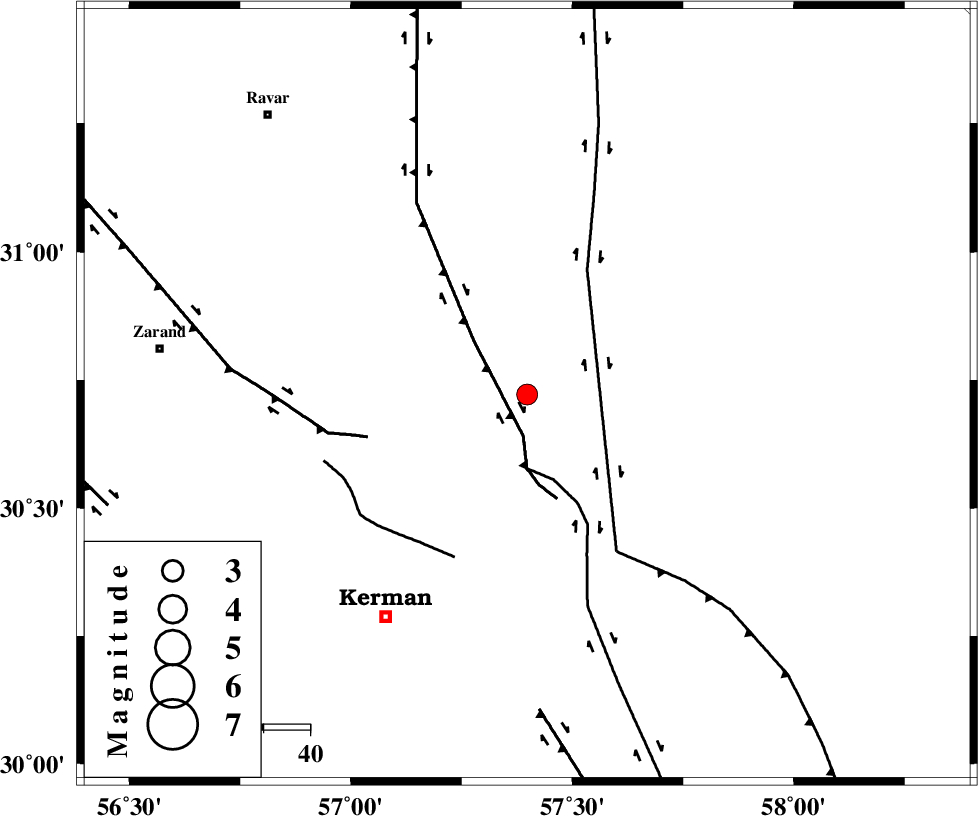

Location	Lat:30.722 Lon: 57.398
Region	Kerman Province, 57 km North-East of Kerman
Nearest Cities
	26 km North East of Harjand, Kerman Province
	27 km North East of Dehlulu, Kerman Province
	40 km East of Hejdak, Kerman Province
	45 km North West of Shahdad, Kerman Province
	47 km North East of Hutak, Kerman Province
Depth	14 km
Agency
Faults within 150 km:
	LAKARKUH_F (Length: 138 km) , Distance to epicenter: 9 km
	GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 16 km
	NAYBAND_F (Length: 258 km) , Distance to epicenter: 30 km
Number of Phases	8
RMS	0.4
Number of Stations	6
Error in Latitude	4 km
Error in Longitude	3.3 km
Error in Depth	7.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
119707	IIEES	KRBR	E	246.2	0.28	2017-09-20 02:38:35	2017-09-20 08:35:00	n
119708	IIEES	BSRN	N	110.5	0.29	2017-09-20 02:39:04	2017-09-20 08:35:00	n
119709	IIEES	YZKH	N	36.6	0.46	2017-09-20 02:39:36	2017-09-20 08:35:00	n
119710	IIEES	YZKH	E	31	0.57	2017-09-20 02:39:37	2017-09-20 08:35:00	n
119711	IIEES	TABS	N	32.3	0.5	2017-09-20 02:39:45	2017-09-20 08:35:00	n
119712	IIEES	NASN	E	6.4	0.44	2017-09-20 02:40:24	2017-09-20 08:35:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	KRBR	Z	Pg	E	2017-09-20 02:38:18	-0.29	y		102	217
IIEES	BSRN	Z	Pn	E	2017-09-20 02:38:35	0.07	y		215	50
IIEES	BSRN	N	Sg	E	2017-09-20 02:39:01	-0.34	y		215	50
IIEES	YZKH	Z	Pn	E	2017-09-20 02:38:49	0.68	y		324	305
IIEES	YZKH	N	Sg	E	2017-09-20 02:39:31	-0.38	y		324	305
IIEES	TABS	Z	Pn	E	2017-09-20 02:38:49	0.02	y		326	355
IIEES	SHRT	Z	Pn	E	2017-09-20 02:39:01	0.35	y		424	39
IIEES	NASN	Z	Pn	E	2017-09-20 02:39:13	3.15	n	4	492	299
