Magnitude |
4.6 |
| Date & Time (UTC) | 2017-09-21 19:28:38.9 |
| Date & Time (Local) | 1396/6/30 23:58:38.9 |

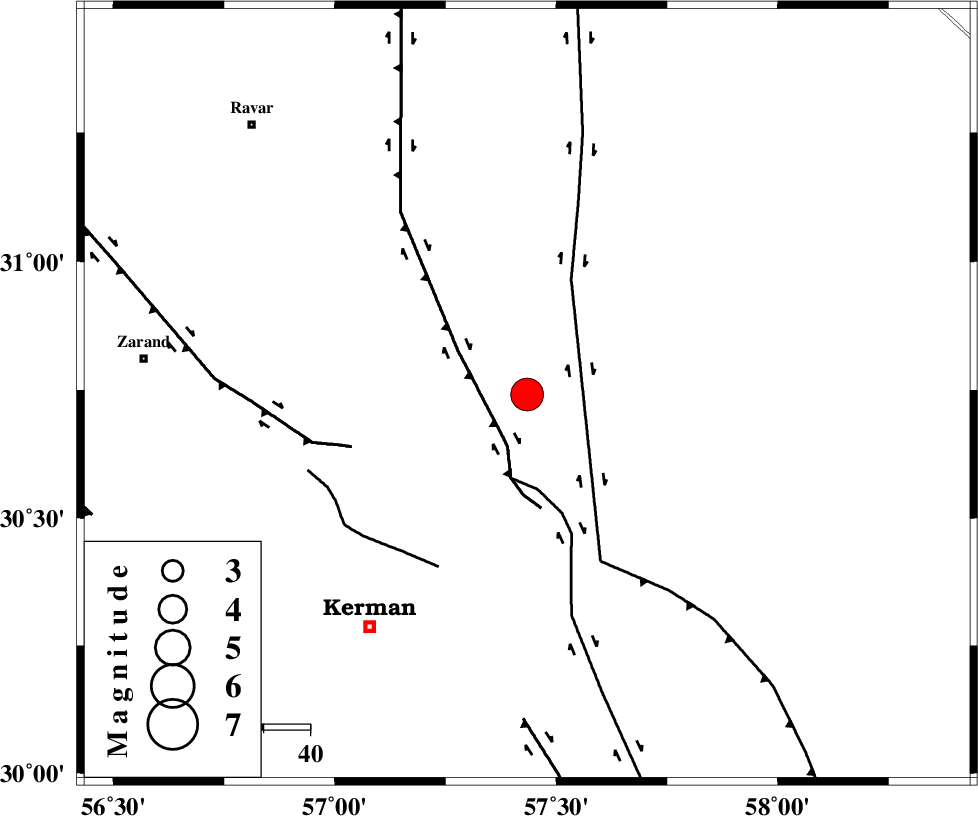

| Location | Lat:30.741 Lon: 57.434 |
| Region | Kerman Province, 61 km North-East of Kerman |
Nearest Cities |
|
| 30 km North East of Harjand, Kerman Province | |
| 31 km North East of Dehlulu, Kerman Province | |
| 44 km East of Hejdak, Kerman Province | |
| 45 km North West of Shahdad, Kerman Province | |
| 51 km North East of Hutak, Kerman Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 12 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 18 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 27 km | |
| Number of Phases | 25 |
| RMS | 0.4 |
| Number of Stations | 23 |
| Error in Latitude | 2.8 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 119815 | IIEES | BSRN | N | 5252.9 | 0.48 | 2017-09-21 19:29:42 | 2017-09-23 09:21:00 | n |
| 119816 | IIEES | BSRN | E | 4293.5 | 0.3 | 2017-09-21 19:29:44 | 2017-09-23 09:21:00 | n |
| 119817 | IIEES | TABS | N | 1608.4 | 0.45 | 2017-09-21 19:30:25 | 2017-09-23 09:21:00 | n |
| 119818 | IIEES | YZKH | E | 1219 | 0.52 | 2017-09-21 19:30:15 | 2017-09-23 09:21:00 | n |
| 119819 | IIEES | YZKH | N | 956.4 | 0.52 | 2017-09-21 19:30:16 | 2017-09-23 09:21:00 | n |
| 119820 | IIEES | SHRO | E | 259.7 | 0.34 | 2017-09-21 19:31:39 | 2017-09-23 09:21:00 | n |
| 119821 | IIEES | SHRO | N | 163.9 | 0.68 | 2017-09-21 19:31:44 | 2017-09-23 09:21:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2017-09-21 19:28:57 | 0 | y | 106 | 218 | |
| IIEES | BSRN | Z | Pn | E | 2017-09-21 19:29:13 | -0.13 | y | 211 | 49 | |
| IIEES | TABS | Z | Pn | E | 2017-09-21 19:29:27 | -0.2 | y | 324 | 355 | |
| IIEES | YZKH | Z | Pn | E | 2017-09-21 19:29:27 | -0.39 | y | 326 | 305 | |
| IIEES | ZHSF | Z | Pn | E | 2017-09-21 19:29:23 | -6.89 | n | 4 | 345 | 110 |
| IIEES | BNDS | Z | Pn | E | 2017-09-21 19:29:36 | 0.35 | y | 390 | 199 | |
| IIEES | SHRT | Z | Pn | E | 2017-09-21 19:29:39 | 0.18 | y | 420 | 39 | |
| IIEES | NASN | Z | Pn | E | 2017-09-21 19:29:49 | 0.12 | y | 494 | 299 | |
| IIEES | GHIR | Z | Pn | E | 2017-09-21 19:29:50 | 0.14 | y | 510 | 239 | |
| IIEES | SHRO | Z | Pn | E | 2017-09-21 19:30:01 | -0.28 | y | 599 | 348 | |
| IIEES | AHRM | N | Pn | E | 2017-09-21 19:30:05 | -0.25 | y | 629 | 252 | |
| IIEES | CHBR | Z | Pn | E | 2017-09-21 19:30:06 | -0.47 | y | 644 | 152 | |
| IIEES | GHVR | Z | Pn | E | 2017-09-21 19:30:16 | 0.51 | y | 714 | 307 | |
| IIEES | DAMV | Z | Pn | E | 2017-09-21 19:30:19 | -0.32 | y | 744 | 318 | |
| IIEES | BJRD | Z | Pn | E | 2017-09-21 19:30:24 | 1.21 | y | 772 | 360 | |
| IIEES | MRVT | Z | Pn | E | 2017-09-21 19:30:24 | 0.1 | y | 777 | 351 | |
| IIEES | KHMZ | Z | Pn | E | 2017-09-21 19:30:24 | -0.26 | y | 778 | 297 | |
| IIEES | ASAO | Z | Pn | E | 2017-09-21 19:30:28 | 0.16 | y | 813 | 303 | |
| IIEES | CHTH | Z | Pn | E | 2017-09-21 19:30:29 | -0.55 | y | 820 | 316 | |
| IIEES | THKV | Z | Pn | E | 2017-09-21 19:30:31 | -0.01 | y | 837 | 315 | |
| IIEES | GIDE | Z | Pn | E | 2017-09-21 19:30:49 | 0.76 | y | 977 | 317 | |
| IIEES | ZNJK | Z | Pn | E | 2017-09-21 19:30:57 | 0.02 | y | 1044 | 311 | |
| IIEES | SNGE | Z | Pn | E | 2017-09-21 19:30:59 | 0.49 | y | 1059 | 300 | |
| IIEES | ILBA | Z | Pn | E | 2017-09-21 19:31:00 | -4.48 | n | 4 | 1105 | 290 |
| IIEES | GRMI | Z | Pn | E | 2017-09-21 19:31:22 | -0.21 | y | 1249 | 318 |
