Magnitude |
2.6 |
| Date & Time (UTC) | 2017-09-20 16:27:08.7 |
| Date & Time (Local) | 1396/6/29 20:57:08.7 |

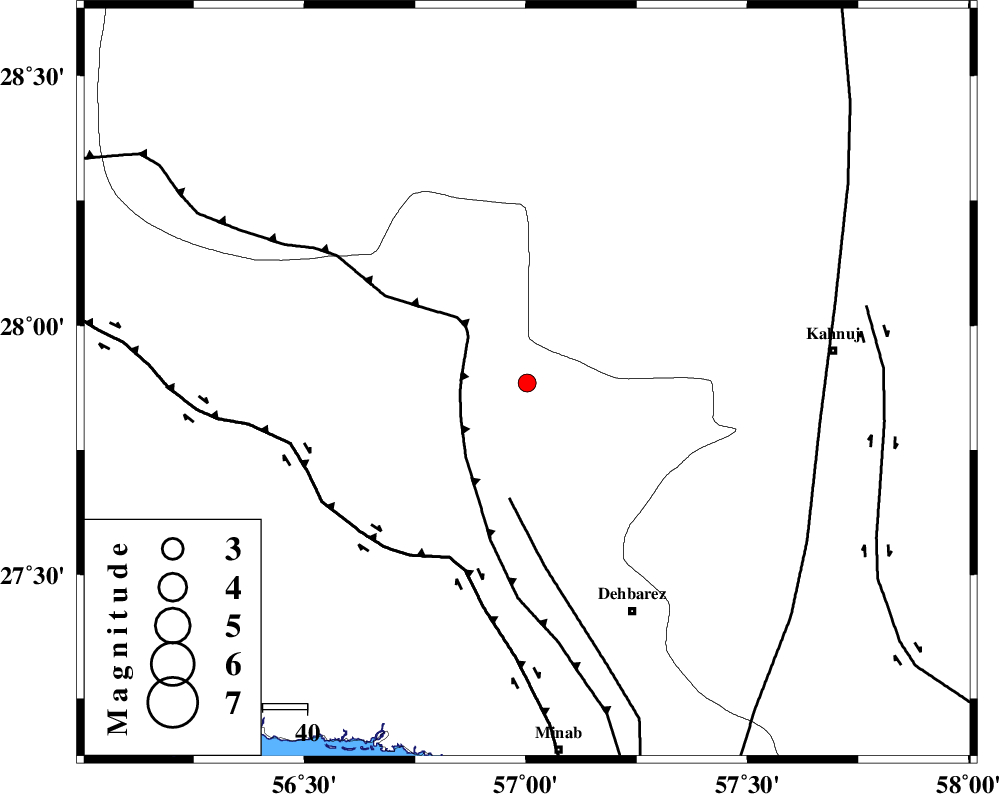

| Location | Lat:27.885 Lon: 57.003 |
| Region | Hormozgan Province, 56 km North-West of Dehbarez |
Nearest Cities |
|
| 27 km North West of Ziaratali, Hormozgan Province | |
| 28 km North West of Fariab, Hormozgan Province | |
| 33 km South West of Faryab, Kerman Province | |
| 46 km South West of Mehrueye-e paeen, Kerman Province | |
| 46 km South West of Hurpasefid, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 15 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 26 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 43 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | 3 km |
| Error in Longitude | 6.4 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 119908 | IIEES | BNDS | N | 179.8 | 0.3 | 2017-09-20 16:27:41 | 2017-09-24 11:45:00 | n |
| 119909 | IIEES | KRBR | E | 78.5 | 0.34 | 2017-09-20 16:28:18 | 2017-09-24 11:45:00 | n |
| 119910 | IIEES | GHIR | N | 5.1 | 0.48 | 2017-09-20 16:29:10 | 2017-09-24 11:45:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BNDS | Z | Pg | E | 2017-09-20 16:27:25 | -0.33 | y | 98.1 | 237 | |
| IIEES | BNDS | E | Sg | E | 2017-09-20 16:27:37 | 0.23 | y | 98.1 | 237 | |
| IIEES | KRBR | Z | Pn | E | 2017-09-20 16:27:45 | 0.15 | y | 234 | 354 | |
| IIEES | KRBR | N | Sg | E | 2017-09-20 16:28:15 | -0.06 | y | 234 | 354 | |
| IIEES | GHIR | Z | Pn | E | 2017-09-20 16:28:05 | -0.01 | y | 397 | 277 | |
| IIEES | BSRN | Z | Pn | E | 2017-09-20 16:28:18 | 0.03 | y | 497 | 24 |
