eventspec – IIEES Earthquake Process Program

Magnitude	3.6
Date & Time (UTC)	2017-09-25 01:55:08.2
Date & Time (Local)	1396/7/3 05:25:08.2

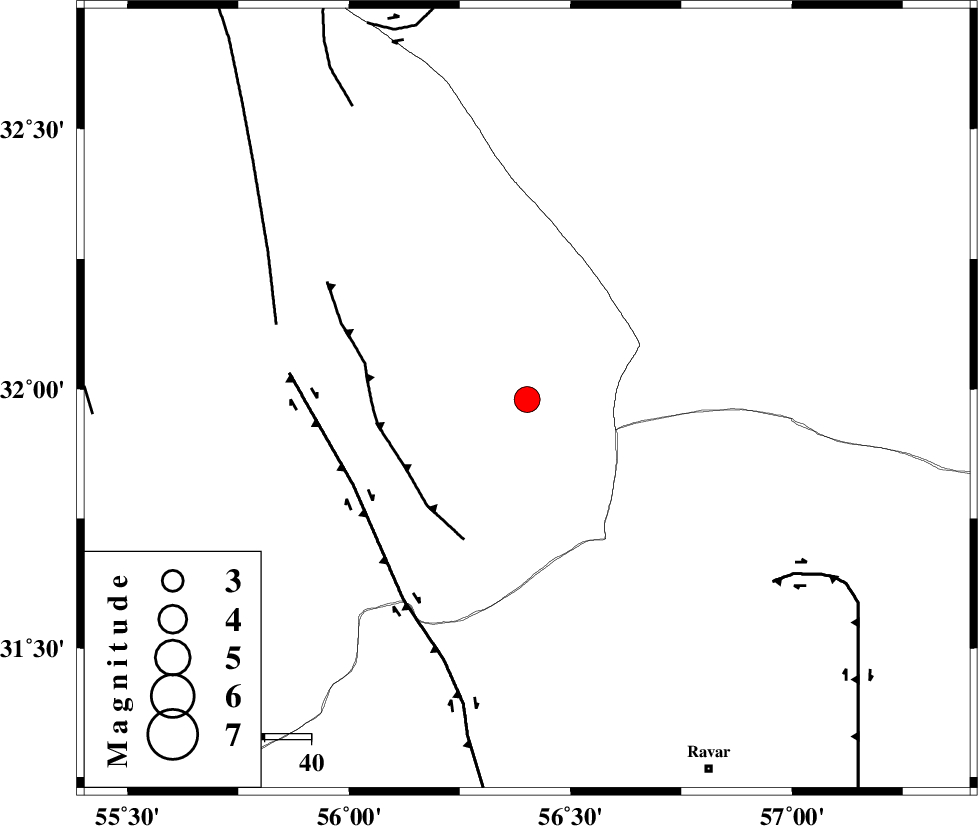

Location	Lat:31.98 Lon: 56.402
Region	Yazd Province, 88 km North-West of Ravar
Nearest Cities
	37 km North East of Behabad, Yazd Province
	38 km North East of Asfih, Yazd Province
	41 km North East of Benestan, Yazd Province
	63 km North East of Kuhbanan, Kerman Province
	64 km North East of Kushk, Yazd Province
Depth	16 km
Agency
Faults within 150 km:
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 30 km
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 41 km
	SARBALA_F (Length: 92 km) , Distance to epicenter: 56 km
Number of Phases	17
RMS	0.3
Number of Stations	15
Error in Latitude	2.1 km
Error in Longitude	2.3 km
Error in Depth	5.6 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
119920	IIEES	YZKH	E	1333.7	0.51	2017-09-25 01:56:01	2017-09-25 05:43:00	n
119921	IIEES	YZKH	N	983.8	0.36	2017-09-25 01:56:02	2017-09-25 05:43:00	n
119922	IIEES	TABS	N	412.5	0.47	2017-09-25 01:56:21	2017-09-25 05:43:00	n
119923	IIEES	KRBR	E	1148.5	0.3	2017-09-25 01:56:14	2017-09-25 05:43:00	n
119924	IIEES	KRBR	N	1390.9	0.42	2017-09-25 01:56:14	2017-09-25 05:43:00	n
119925	IIEES	BSRN	N	209.4	0.41	2017-09-25 01:56:31	2017-09-25 05:43:00	n
119926	IIEES	NASN	E	78.8	0.33	2017-09-25 01:56:59	2017-09-25 05:43:00	n
119927	IIEES	NASN	N	92.5	0.59	2017-09-25 01:57:01	2017-09-25 05:43:00	n
119928	IIEES	SHRO	N	56.7	0.35	2017-09-25 01:57:26	2017-09-25 05:43:00	n
119929	IIEES	SHRO	E	58	0.47	2017-09-25 01:57:43	2017-09-25 05:43:00	n
119930	IIEES	BNDS	E	20.5	0.41	2017-09-25 01:57:45	2017-09-25 05:43:00	n
119931	IIEES	BNDS	N	26.2	0.57	2017-09-25 01:57:57	2017-09-25 05:43:00	n
119932	IIEES	GHIR	E	16.1	0.67	2017-09-25 01:57:56	2017-09-25 05:43:00	n
119933	IIEES	GHVR	N	14.6	0.47	2017-09-25 01:58:19	2017-09-25 05:43:00	n
119934	IIEES	DAMV	N	13.4	0.32	2017-09-25 01:58:09	2017-09-25 05:43:00	n
119935	IIEES	DAMV	E	19.2	0.63	2017-09-25 01:58:31	2017-09-25 05:43:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Distance	Azimuth
IIEES	YZKH	Z	Pg	E	2017-09-25 01:55:37	-0.41	y	177	285
IIEES	TABS	Z	Pn	E	2017-09-25 01:55:40	-0.15	y	197	20
IIEES	KRBR	Z	Pn	E	2017-09-25 01:55:43	-0.03	y	224	171
IIEES	KRBR	N	Sg	E	2017-09-25 01:56:12	0.17	y	224	171
IIEES	BSRN	Z	Pn	E	2017-09-25 01:55:47	-0.64	y	257	90
IIEES	BSRN	N	Sg	E	2017-09-25 01:56:21	0.25	y	257	90
IIEES	NASN	Z	Pn	E	2017-09-25 01:55:59	0.09	y	350	286
IIEES	SHRT	Z	Pn	E	2017-09-25 01:56:06	0.06	y	408	62
IIEES	SHRO	Z	Pn	E	2017-09-25 01:56:11	-0.09	y	448	356
IIEES	BNDS	Z	Pn	E	2017-09-25 01:56:18	-0.01	y	508	183
IIEES	GHIR	Z	Pn	E	2017-09-25 01:56:20	-0.12	y	525	220
IIEES	GHVR	Z	Pn	E	2017-09-25 01:56:25	0.45	y	555	301
IIEES	DAMV	Z	Pn	E	2017-09-25 01:56:27	-0.37	y	576	316
IIEES	MRVT	Z	Pn	E	2017-09-25 01:56:34	0.76	y	631	357
IIEES	KHMZ	Z	Pn	E	2017-09-25 01:56:34	0.36	y	633	290
IIEES	CHTH	Z	Pn	E	2017-09-25 01:56:37	0.32	y	654	313
IIEES	ASAO	Z	Pn	E	2017-09-25 01:56:37	0.12	y	659	297
