Magnitude |
2.8 |
| Date & Time (UTC) | 2017-10-05 20:03:05.9 |
| Date & Time (Local) | 1396/7/13 23:33:05.9 |

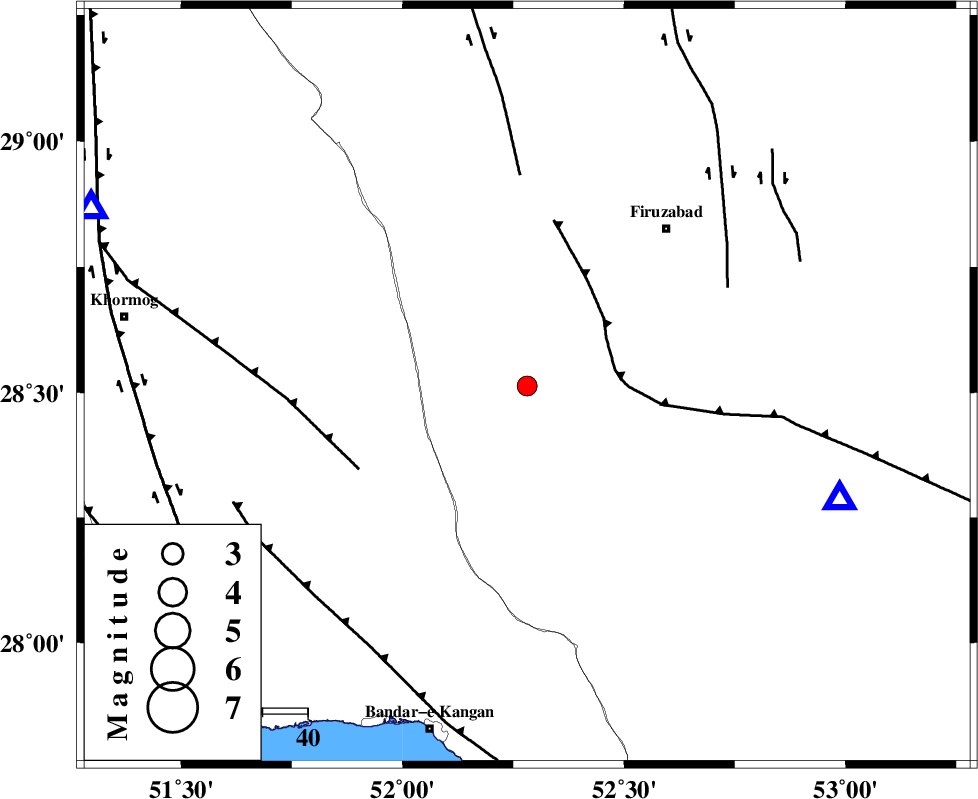

| Location | Lat:28.513 Lon: 52.281 |
| Region | Fars Province, 44 km South-East of Farashband |
Nearest Cities |
|
| 4 km North of Dahrom, Fars Province | |
| 40 km North West of Hengam, Fars Province | |
| 41 km South West of Ahmadabad, Fars Province | |
| 41 km North of Dolatabad, Fars Province | |
| 44 km South East of Farashband, Fars Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 20 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 41 km | |
| KAREBASS_F (Length: 98 km) , Distance to epicenter: 47 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 9.7 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 120303 | IIEES | GHIR | N | 319.5 | 0.76 | 2017-10-05 20:03:45 | 2017-10-09 08:32:00 | n |
| 120304 | IIEES | AHRM | E | 362.4 | 0.37 | 2017-10-05 20:03:45 | 2017-10-09 08:32:00 | n |
| 120305 | IIEES | AHRM | N | 570.1 | 0.52 | 2017-10-05 20:03:45 | 2017-10-09 08:32:00 | n |
| 120306 | IIEES | KRBR | N | 7.7 | 0.46 | 2017-10-05 20:05:05 | 2017-10-09 08:32:00 | n |
| 120307 | IIEES | KRBR | E | 7.3 | 0.46 | 2017-10-05 20:05:07 | 2017-10-09 08:32:00 | n |
| 120308 | IIEES | YZKH | N | 4.6 | 0.36 | 2017-10-05 20:05:06 | 2017-10-09 08:32:00 | n |
| 120309 | IIEES | YZKH | E | 4.4 | 0.63 | 2017-10-05 20:05:07 | 2017-10-09 08:32:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2017-10-05 20:03:18 | -0.1 | y | 73.6 | 110 | |
| IIEES | GHIR | N | Sg | E | 2017-10-05 20:03:28 | 0.11 | y | 73.6 | 110 | |
| IIEES | AHRM | Z | Pg | E | 2017-10-05 20:03:23 | -0.06 | y | 104 | 292 | |
| IIEES | AHRM | N | Sg | E | 2017-10-05 20:03:36 | 0.04 | y | 104 | 292 | |
| IIEES | KRBR | Z | Pn | E | 2017-10-05 20:04:11 | -0.06 | y | 465 | 68 | |
| IIEES | NASN | Z | Pn | E | 2017-10-05 20:04:13 | 0.18 | y | 478 | 6 | |
| IIEES | YZKH | Z | Pn | E | 2017-10-05 20:04:13 | -0.1 | y | 484 | 27 |
