Magnitude |
3.4 |
| Date & Time (UTC) | 2017-10-17 02:46:30.9 |
| Date & Time (Local) | 1396/7/25 06:16:30.9 |

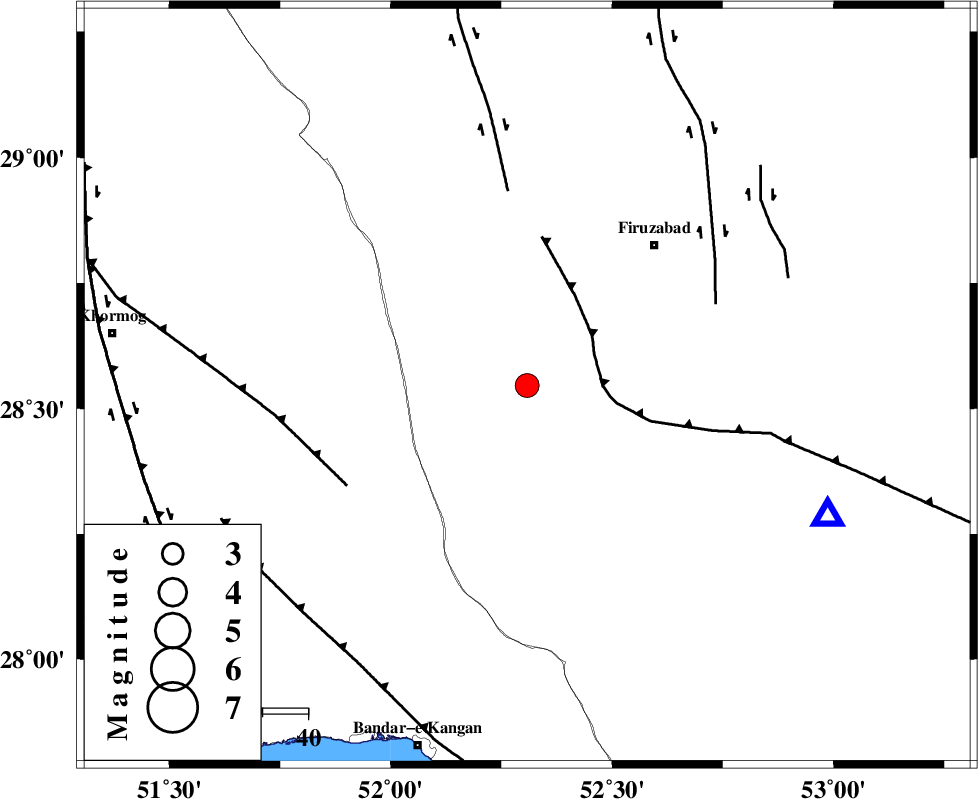

| Location | Lat:28.546 Lon: 52.308 |
| Region | Fars Province, 42 km South-East of Farashband |
Nearest Cities |
|
| 6 km North of Dahrom, Fars Province | |
| 36 km South West of Ahmadabad, Fars Province | |
| 39 km North West of Hengam, Fars Province | |
| 40 km South West of Jaydasht, Fars Province | |
| 42 km South West of Firuz Abad, Fars Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 16 km | |
| KAREBASS_F (Length: 98 km) , Distance to epicenter: 43 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 45 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 10 |
| Error in Latitude | 6.6 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 120515 | IIEES | GHIR | E | 1609.8 | 0.33 | 2017-10-17 02:47:06 | 2017-10-17 06:17:00 | n |
| 120516 | IIEES | GHIR | N | 1446.3 | 0.4 | 2017-10-17 02:47:09 | 2017-10-17 06:17:00 | n |
| 120517 | IIEES | AHRM | N | 1714.9 | 0.5 | 2017-10-17 02:47:06 | 2017-10-17 06:17:00 | n |
| 120518 | IIEES | AHRM | E | 1096.6 | 0.43 | 2017-10-17 02:47:11 | 2017-10-17 06:17:00 | n |
| 120519 | IIEES | KRBR | E | 36.4 | 0.54 | 2017-10-17 02:48:32 | 2017-10-17 06:17:00 | n |
| 120520 | IIEES | KRBR | N | 29.4 | 0.54 | 2017-10-17 02:48:34 | 2017-10-17 06:17:00 | n |
| 120521 | IIEES | YZKH | N | 22.8 | 0.49 | 2017-10-17 02:48:31 | 2017-10-17 06:17:00 | n |
| 120522 | IIEES | YZKH | E | 20.8 | 0.51 | 2017-10-17 02:48:36 | 2017-10-17 06:17:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2017-10-17 02:46:43 | -0.04 | y | 72.5 | 113 | |
| IIEES | AHRM | Z | Pg | E | 2017-10-17 02:46:48 | 0.04 | y | 105 | 290 | |
| IIEES | BNDS | Z | Pn | E | 2017-10-17 02:47:28 | -0.01 | y | 401 | 108 | |
| IIEES | KRBR | Z | Pn | E | 2017-10-17 02:47:35 | -0.19 | y | 461 | 69 | |
| IIEES | NASN | Z | Pn | E | 2017-10-17 02:47:37 | -0.48 | y | 474 | 6 | |
| IIEES | YZKH | Z | Pn | E | 2017-10-17 02:47:38 | 0.08 | y | 479 | 27 | |
| IIEES | KHMZ | Z | Pn | E | 2017-10-17 02:47:55 | 0.15 | y | 618 | 339 | |
| IIEES | TABS | Z | Pn | E | 2017-10-17 02:48:09 | 0.18 | y | 728 | 38 | |
| IIEES | BSRN | Z | Pn | E | 2017-10-17 02:48:12 | 0.13 | y | 758 | 58 | |
| IIEES | ILBA | Z | Pn | E | 2017-10-17 02:48:13 | -5.4 | n | 4 | 810 | 316 |
| IIEES | SNGE | Z | Pn | E | 2017-10-17 02:48:22 | -3.88 | n | 4 | 864 | 328 |
| IIEES | SHRT | Z | Pn | E | 2017-10-17 02:48:37 | 0.93 | y | 948 | 51 |
