eventspec – IIEES Earthquake Process Program

Magnitude	3.1
Date & Time (UTC)	2017-10-20 06:25:42.9
Date & Time (Local)	1396/7/28 09:55:42.9

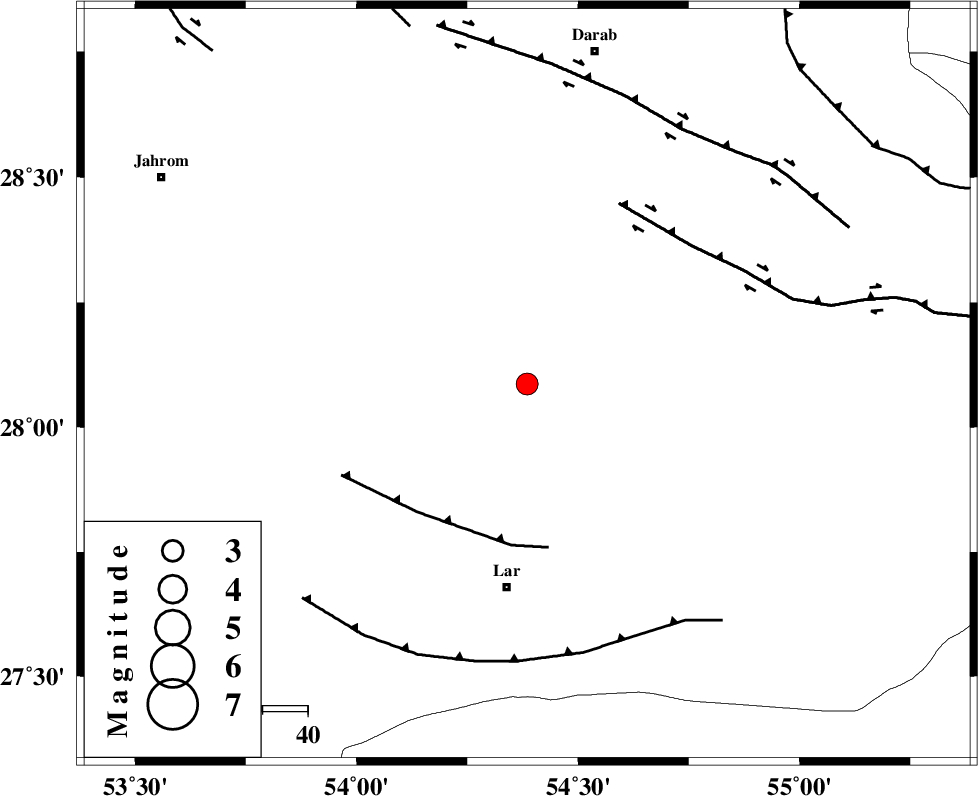

Location	Lat:28.086 Lon: 54.385
Region	Fars Province, 45 km North of Lar
Nearest Cities
	26 km South of Shahr-e pir, Fars Province
	26 km North of Dehkuyeh, Fars Province
	30 km South of Hajiabad, Fars Province
	40 km South East of Dabiran, Fars Province
	43 km North of Latifi, Fars Province
Depth	16 km
Agency
Faults within 150 km:
	BERIZ_F (Length: 49 km) , Distance to epicenter: 36 km
	HZF2 (Length: 437 km) , Distance to epicenter: 45 km
	LAR_F (Length: 99 km) , Distance to epicenter: 61 km
Number of Phases	7
RMS	0.3
Number of Stations	5
Error in Latitude	4.7 km
Error in Longitude	2.3 km
Error in Depth	6.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
120563	IIEES	GHIR	N	458.3	0.37	2017-10-20 06:26:30	2017-10-21 07:13:00	n
120564	IIEES	GHIR	E	269.7	0.59	2017-10-20 06:26:32	2017-10-21 07:13:00	n
120565	IIEES	KRBR	E	53.9	0.4	2017-10-20 06:27:22	2017-10-21 07:13:00	n
120566	IIEES	KRBR	N	57.3	0.71	2017-10-20 06:27:28	2017-10-21 07:13:00	n
120567	IIEES	AHRM	N	31.5	0.73	2017-10-20 06:27:21	2017-10-21 07:13:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	GHIR	Z	Pg	E	2017-10-20 06:26:06	-0.07	y		139	279
IIEES	GHIR	N	Sg	E	2017-10-20 06:26:23	-0.05	y		139	279
IIEES	BNDS	Z	Pn	E	2017-10-20 06:26:14	-0.09	y		192	113
IIEES	KRBR	Z	Pn	E	2017-10-20 06:26:31	2.24	n	4	313	47
IIEES	KRBR	N	Sg	E	2017-10-20 06:27:11	0.13	y		313	47
IIEES	AHRM	Z	Pn	E	2017-10-20 06:26:29	0.43	y		315	287
IIEES	NASN	Z	Pn	E	2017-10-20 06:26:57	-0.49	y		544	344
