Magnitude |
3.2 |
| Date & Time (UTC) | 2017-10-20 08:24:52.1 |
| Date & Time (Local) | 1396/7/28 11:54:52.1 |

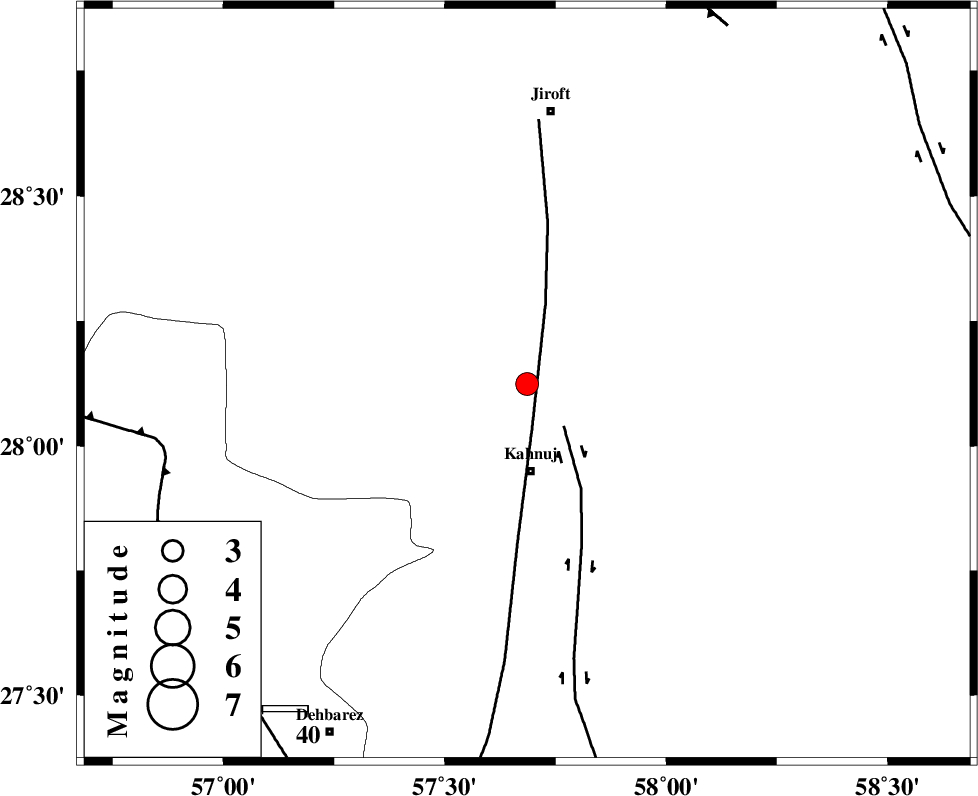

| Location | Lat:28.124 Lon: 57.686 |
| Region | Kerman Province, 19 km North of Kahnuj |
Nearest Cities |
|
| 17 km East of Bolock, Kerman Province | |
| 19 km North of Kahnuj, Kerman Province | |
| 28 km North East of Mehrueye-e paeen, Kerman Province | |
| 37 km East of Hurpasefid, Kerman Province | |
| 39 km South West of Aliabad-e qadiri, Kerman Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 9 km | |
| JIROFT_F (Length: 144 km) , Distance to epicenter: 12 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 82 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 1.9 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 120573 | IIEES | BNDS | E | 398.2 | 0.26 | 2017-10-20 08:25:42 | 2017-10-21 07:13:00 | n |
| 120574 | IIEES | BNDS | N | 374.7 | 0.22 | 2017-10-20 08:25:43 | 2017-10-21 07:13:00 | n |
| 120575 | IIEES | KRBR | N | 160 | 0.21 | 2017-10-20 08:26:02 | 2017-10-21 07:13:00 | n |
| 120576 | IIEES | KRBR | E | 125.9 | 0.53 | 2017-10-20 08:26:05 | 2017-10-21 07:13:00 | n |
| 120577 | IIEES | GHIR | N | 14.1 | 0.27 | 2017-10-20 08:26:47 | 2017-10-21 07:13:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BNDS | Z | Pg | E | 2017-10-20 08:25:20 | -0.06 | y | 170 | 242 | |
| IIEES | BNDS | N | Sg | E | 2017-10-20 08:25:40 | 0 | y | 170 | 242 | |
| IIEES | KRBR | Z | Pn | E | 2017-10-20 08:25:27 | 0.09 | y | 225 | 337 | |
| IIEES | KRBR | N | Sg | E | 2017-10-20 08:25:56 | 0.05 | y | 225 | 337 | |
| IIEES | ZHSF | Z | Pn | E | 2017-10-20 08:25:42 | 0.23 | y | 344 | 61 | |
| IIEES | BSRN | Z | Pn | E | 2017-10-20 08:25:54 | -0.45 | y | 448 | 18 | |
| IIEES | GHIR | Z | Pn | E | 2017-10-20 08:25:56 | 0.06 | y | 462 | 273 |
