Magnitude |
3 |
| Date & Time (UTC) | 2017-10-23 20:12:49.1 |
| Date & Time (Local) | 1396/8/1 23:42:49.1 |
| Location | Lat:27.92 Lon: 57.166 |
| Region | Kerman Province, 52 km -West of Kahnuj |
Nearest Cities |
|
| 16 km North West of Fariab, Hormozgan Province | |
| 19 km South West of Faryab, Kerman Province | |
| 21 km North of Ziaratali, Hormozgan Province | |
| 30 km South West of Mehrueye-e paeen, Kerman Province | |
| 34 km South West of Hurpasefid, Kerman Province | |
| Depth | 14 km |
| Agency | |

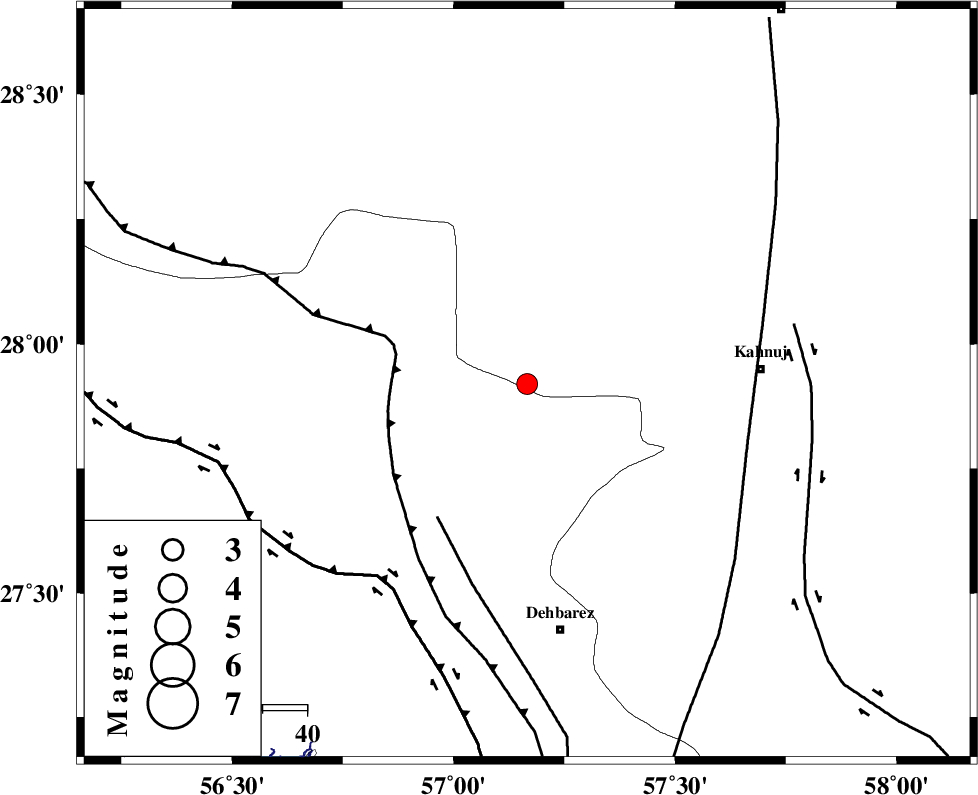

Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 30 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 36 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 51 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | 2.6 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 120769 | IIEES | BNDS | N | 328 | 0.22 | 2017-10-23 20:13:24 | 2017-10-24 07:23:00 | n |
| 120770 | IIEES | BNDS | E | 301 | 0.38 | 2017-10-23 20:13:25 | 2017-10-24 07:23:00 | n |
| 120771 | IIEES | KRBR | N | 95.1 | 0.34 | 2017-10-23 20:13:59 | 2017-10-24 07:23:00 | n |
| 120772 | IIEES | KRBR | E | 100.1 | 0.39 | 2017-10-23 20:13:59 | 2017-10-24 07:23:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | BNDS | Z | Pg | E | 2017-10-23 20:13:08 | -0.34 | y | 114 | 240 | |
| IIEES | BNDS | N | Sg | E | 2017-10-23 20:13:22 | 0.19 | y | 114 | 240 | |
| IIEES | KRBR | Z | Pn | E | 2017-10-23 20:13:26 | 0.3 | y | 232 | 350 | |
| IIEES | KRBR | N | Sg | E | 2017-10-23 20:13:54 | -0.11 | y | 232 | 350 | |
| IIEES | ZHSF | Z | Pn | E | 2017-10-23 20:13:46 | 0.06 | y | 399 | 61 | |
| IIEES | BSRN | Z | Pn | E | 2017-10-23 20:13:57 | -0.14 | y | 487 | 22 |
