Magnitude |
2.6 |
| Date & Time (UTC) | 2017-10-28 19:11:10.4 |
| Date & Time (Local) | 1396/8/6 22:41:10.4 |

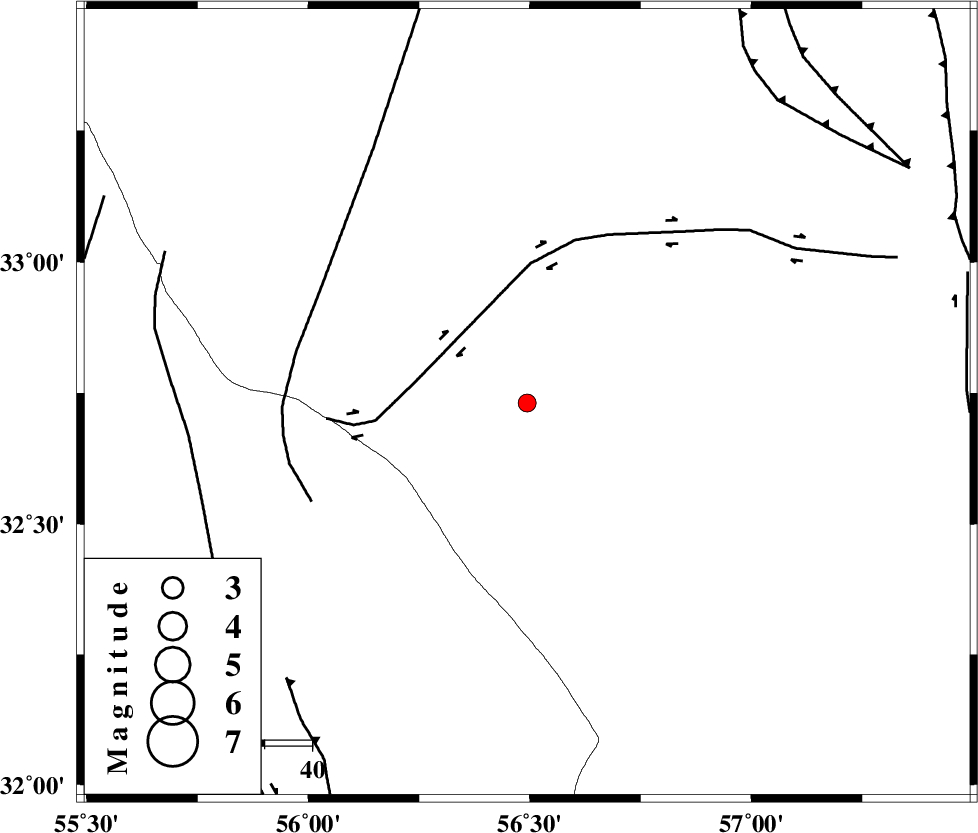

| Location | Lat:32.731 Lon: 56.494 |
| Region | Yazd Province, 105 km South-West of Tabas |
Nearest Cities |
|
| 90 km South West of Kerit, Yazd Province | |
| 93 km South East of Robat-e posht-e badam, Yazd Province | |
| 99 km South West of Oshtoqran, Yazd Province | |
| 105 km South West of Tabas, Yazd Province | |
| 105 km North East of Behabad, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 24 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 50 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 72 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | 5.2 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 8.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 120886 | IIEES | YZKH | E | 92.4 | 0.31 | 2017-10-28 19:12:05 | 2017-10-29 06:03:00 | n |
| 120887 | IIEES | YZKH | N | 36.5 | 0.39 | 2017-10-28 19:12:06 | 2017-10-29 06:03:00 | n |
| 120888 | IIEES | KRBR | E | 15.7 | 0.4 | 2017-10-28 19:12:39 | 2017-10-29 06:03:00 | n |
| 120889 | IIEES | KRBR | N | 17.4 | 0.3 | 2017-10-28 19:12:39 | 2017-10-29 06:03:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | TABS | Z | Pg | E | 2017-10-28 19:11:29 | -0.2 | y | 117 | 30 | |
| IIEES | YZKH | Z | Pg | E | 2017-10-28 19:11:40 | 0.14 | y | 183 | 259 | |
| IIEES | YZKH | N | Sg | E | 2017-10-28 19:12:02 | -0.02 | y | 183 | 259 | |
| IIEES | BSRN | Z | Pn | E | 2017-10-28 19:11:50 | -0.36 | y | 262 | 108 | |
| IIEES | KRBR | Z | Pn | E | 2017-10-28 19:11:56 | 0.01 | y | 306 | 175 | |
| IIEES | NASN | Z | Pn | E | 2017-10-28 19:12:01 | -0.1 | y | 345 | 272 | |
| IIEES | SHRT | Z | Pn | E | 2017-10-28 19:12:04 | 0.62 | y | 368 | 73 |
