eventspec – IIEES Earthquake Process Program

Magnitude	4
Date & Time (UTC)	2017-11-09 12:22:42.8
Date & Time (Local)	1396/8/18 15:52:42.8

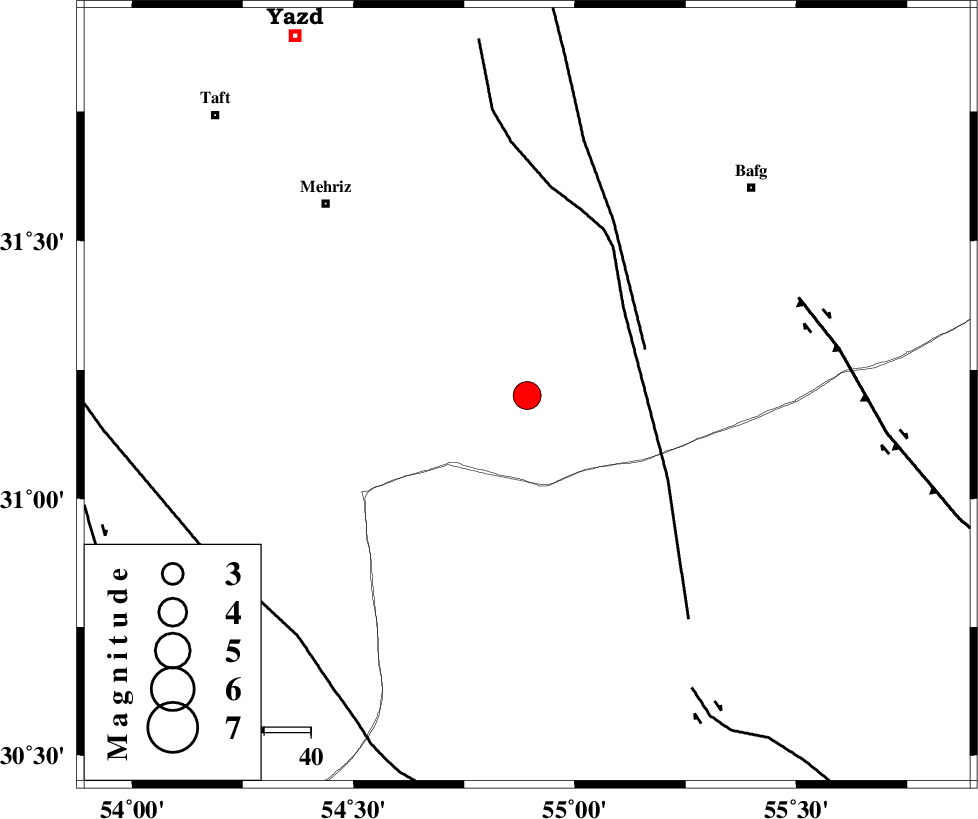

Location	Lat:31.2 Lon: 54.892
Region	Yazd Province, 60 km South-East of Mehriz
Nearest Cities
	15 km South of Bahadoran, Yazd Province
	51 km North West of Anar, Kerman Province
	56 km North of Dehaj, Kerman Province
	59 km North West of Hoseiynabad-e amin, Kerman Province
	60 km South East of Mehriz, Yazd Province
Depth	15 km
Agency
Faults within 150 km:
	ANAR_F (Length: 91 km) , Distance to epicenter: 27 km
	ANAR_F (Length: 127 km) , Distance to epicenter: 28 km
	DARIVAN_F (Length: 131 km) , Distance to epicenter: 62 km
Number of Phases	20
RMS	0.5
Number of Stations	20
Error in Latitude	3.8 km
Error in Longitude	4.5 km
Error in Depth	8.9 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
121226	IIEES	KRBR	N	1538.8	0.6	2017-11-09 12:23:49	2017-11-11 06:45:00	n
121227	IIEES	KRBR	E	1806.3	0.3	2017-11-09 12:23:53	2017-11-11 06:45:00	n
121228	IIEES	NASN	N	407.9	0.69	2017-11-09 12:24:02	2017-11-11 06:45:00	n
121229	IIEES	TABS	N	269.9	0.7	2017-11-09 12:24:43	2017-11-11 06:45:00	n
121230	IIEES	GHIR	E	274.7	0.43	2017-11-09 12:24:32	2017-11-11 06:45:00	n
121231	IIEES	BSRN	N	264.6	0.72	2017-11-09 12:24:48	2017-11-11 06:45:00	n
121232	IIEES	BSRN	E	182.8	0.81	2017-11-09 12:24:48	2017-11-11 06:45:00	n
121233	IIEES	BNDS	E	127.7	0.48	2017-11-09 12:24:40	2017-11-11 06:45:00	n
121234	IIEES	BNDS	N	135	0.72	2017-11-09 12:24:44	2017-11-11 06:45:00	n
121235	IIEES	GHVR	N	81	0.5	2017-11-09 12:25:20	2017-11-11 06:45:00	n
121236	IIEES	GHVR	E	89.4	0.63	2017-11-09 12:25:24	2017-11-11 06:45:00	n
121237	IIEES	SHRO	N	121	0.85	2017-11-09 12:25:24	2017-11-11 06:45:00	n
121238	IIEES	SHRO	E	70.3	0.47	2017-11-09 12:25:29	2017-11-11 06:45:00	n
121239	IIEES	DAMV	E	40.6	0.7	2017-11-09 12:25:46	2017-11-11 06:45:00	n
121240	IIEES	SHRT	N	48.4	0.82	2017-11-09 12:25:37	2017-11-11 06:45:00	n
121241	IIEES	ZHSF	N	33	0.76	2017-11-09 12:25:28	2017-11-11 06:45:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	YZKH	Z	Pg	E	2017-11-09 12:23:04	-0.57	y		135	348
IIEES	KRBR	Z	Pn	E	2017-11-09 12:23:17	-0.6	y		224	127
IIEES	NASN	Z	Pn	E	2017-11-09 12:23:23	-0.46	y		265	313
IIEES	TABS	Z	Pn	E	2017-11-09 12:23:33	0.22	y		343	37
IIEES	GHIR	Z	Pn	E	2017-11-09 12:23:36	0.01	y		372	210
IIEES	BSRN	Z	Pn	E	2017-11-09 12:23:41	-0.08	y		411	77
IIEES	AHRM	Z	Pn	E	2017-11-09 12:23:44	0.09	y		433	234
IIEES	BNDS	Z	Pn	E	2017-11-09 12:23:45	0.2	y		439	163
IIEES	GHVR	Z	Pn	E	2017-11-09 12:23:52	-0.34	y		499	318
IIEES	KHMZ	Z	Pn	E	2017-11-09 12:23:58	1.03	y		542	303
IIEES	SHRO	Z	Pn	E	2017-11-09 12:23:57	-0.29	y		543	11
IIEES	DAMV	Z	Pn	E	2017-11-09 12:24:00	-0.02	y		561	332
IIEES	SHRT	Z	Pn	E	2017-11-09 12:24:02	0.97	y		576	60
IIEES	ASAO	Z	Pn	E	2017-11-09 12:24:03	-0.14	y		588	310
IIEES	ZHSF	Z	Pn	E	2017-11-09 12:23:57	-6.05	n	4	592	106
IIEES	CHTH	Z	Pn	E	2017-11-09 12:24:08	-0.35	y		628	327
IIEES	THKV	Z	Pn	E	2017-11-09 12:24:11	0.88	y		642	326
IIEES	MRVT	Z	Pn	E	2017-11-09 12:24:21	0.61	y		725	8
IIEES	SNGE	Z	Pn	E	2017-11-09 12:24:33	0.04	y		826	304
IIEES	ILBA	Z	Pn	E	2017-11-09 12:24:37	0.14	y		860	291
