Magnitude |
3 |
| Date & Time (UTC) | 2017-11-13 03:38:20.7 |
| Date & Time (Local) | 1396/8/22 07:08:20.7 |

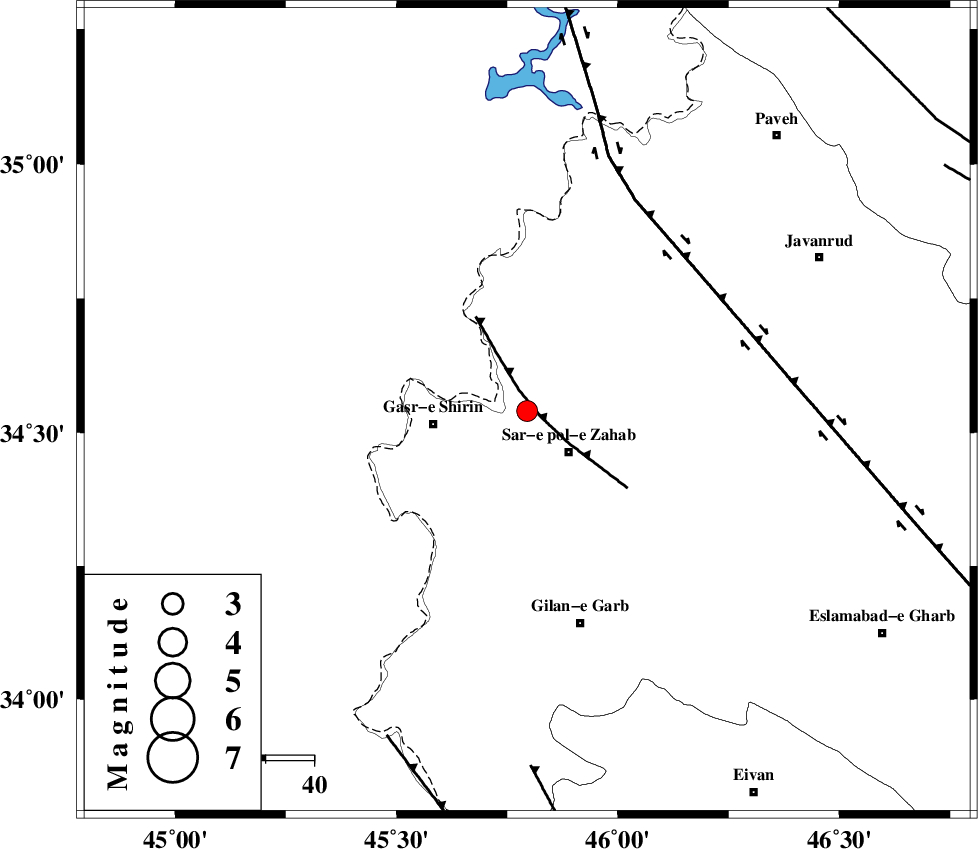

| Location | Lat:34.54 Lon: 45.795 |
| Region | Kermanshah Province, 12 km of Sar-e pol-e zahab |
Nearest Cities |
|
| 4 km of Mirmiru, Kermanshah Province | |
| 6 km North of Qareh belagh, Kermanshah Province | |
| 12 km East of Aqabarar, Kermanshah Province | |
| 12 km North of Sar-e pol-e zahab, Kermanshah Province | |
| 15 km West of Bazmirabad, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 3 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 46 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 74 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | 3.1 km |
| Error in Longitude | 8.7 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 121372 | IIEES | ILBA | N | 287.7 | 0.21 | 2017-11-13 03:38:53 | 2017-11-13 06:28:00 | n |
| 121373 | IIEES | SNGE | N | 139 | 0.45 | 2017-11-13 03:39:09 | 2017-11-13 06:28:00 | n |
| 121374 | IIEES | GIDE | E | 18.6 | 0.17 | 2017-11-13 03:40:34 | 2017-11-13 06:28:00 | n |
| 121375 | IIEES | GIDE | N | 24.1 | 0.77 | 2017-11-13 03:40:46 | 2017-11-13 06:28:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-13 03:38:38 | -0.14 | y | 108 | 159 | |
| IIEES | ILBA | N | Sg | E | 2017-11-13 03:38:52 | -0.03 | y | 108 | 159 | |
| IIEES | SNGE | Z | Pg | E | 2017-11-13 03:38:45 | -0.6 | y | 155 | 66 | |
| IIEES | ZNJK | Z | Pn | E | 2017-11-13 03:39:12 | 0.21 | y | 353 | 47 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-13 03:39:17 | 0.85 | y | 388 | 89 | |
| IIEES | KHMZ | Z | Pn | E | 2017-11-13 03:39:17 | -0.03 | y | 395 | 102 | |
| IIEES | GIDE | Z | Pn | E | 2017-11-13 03:39:25 | -0.05 | y | 457 | 53 | |
| IIEES | GHVR | Z | Pn | E | 2017-11-13 03:39:30 | 0.01 | y | 500 | 89 | |
| IIEES | MAKU | Z | Pn | E | 2017-11-13 03:39:35 | -0.08 | y | 543 | 350 |
