Magnitude |
4.1 |
| Date & Time (UTC) | 2017-11-14 04:28:16.6 |
| Date & Time (Local) | 1396/8/23 07:58:16.6 |

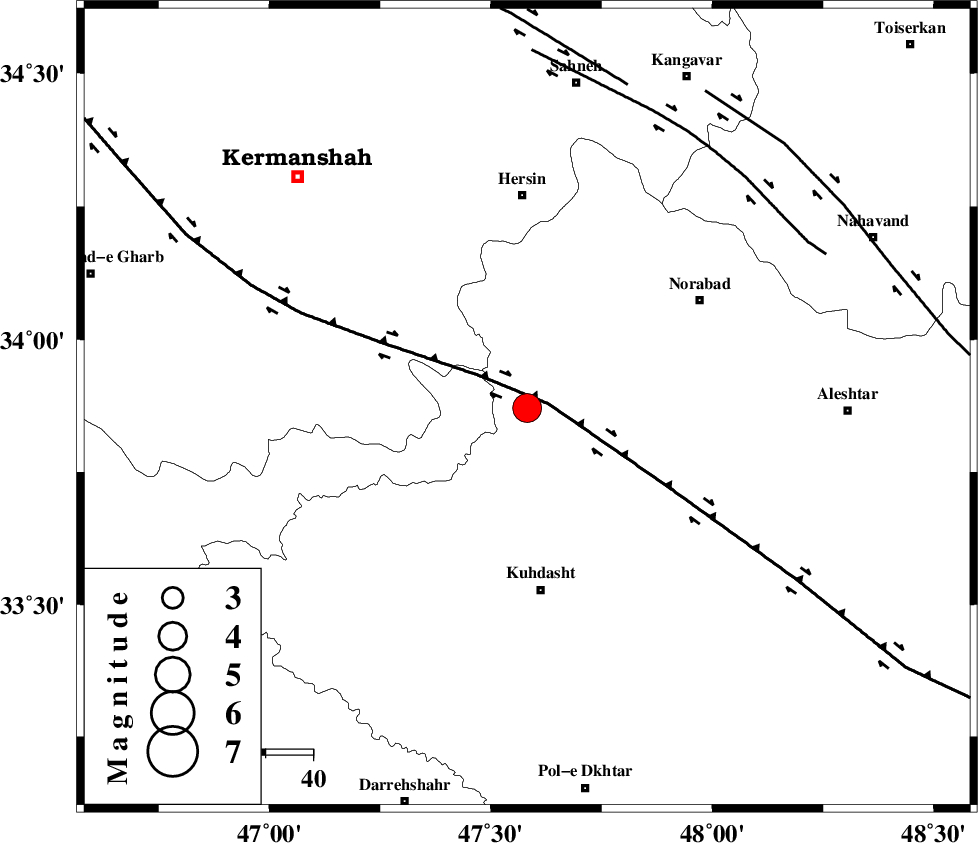

| Location | Lat:33.871 Lon: 47.582 |
| Region | Lorestan Province, 38 km North of Kuhdasht |
Nearest Cities |
|
| 26 km South West of Kahrizvardasht-e olia, Lorestan Province | |
| 37 km South West of Zafarabad, Lorestan Province | |
| 38 km North of Kuhdasht, Lorestan Province | |
| 41 km South West of Farhadabad, Lorestan Province | |
| 41 km South East of Cheshmeh kabud, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 5 km | |
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 66 km | |
| DINEHVAR_F (Length: 46 km) , Distance to epicenter: 71 km | |
| Number of Phases | 22 |
| RMS | 0.4 |
| Number of Stations | 20 |
| Error in Latitude | 2.9 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 121503 | IIEES | ILBA | N | 1821.6 | 0.73 | 2017-11-14 04:29:01 | 2017-11-14 06:00:00 | n |
| 121504 | IIEES | SNGE | N | 3527.4 | 0.46 | 2017-11-14 04:29:03 | 2017-11-14 06:00:00 | n |
| 121505 | IIEES | SNGE | E | 6100.8 | 0.65 | 2017-11-14 04:29:04 | 2017-11-14 06:00:00 | n |
| 121506 | IIEES | KHMZ | E | 1089.6 | 0.26 | 2017-11-14 04:29:25 | 2017-11-14 06:00:00 | n |
| 121507 | IIEES | KHMZ | N | 744.8 | 0.4 | 2017-11-14 04:29:26 | 2017-11-14 06:00:00 | n |
| 121508 | IIEES | ASAO | E | 928.9 | 0.71 | 2017-11-14 04:29:29 | 2017-11-14 06:00:00 | n |
| 121509 | IIEES | ASAO | N | 1150.3 | 0.47 | 2017-11-14 04:29:32 | 2017-11-14 06:00:00 | n |
| 121510 | IIEES | GHVR | E | 883.2 | 0.78 | 2017-11-14 04:30:04 | 2017-11-14 06:00:00 | n |
| 121511 | IIEES | GHVR | N | 690.4 | 0.7 | 2017-11-14 04:30:04 | 2017-11-14 06:00:00 | n |
| 121512 | IIEES | THKV | N | 293.3 | 0.73 | 2017-11-14 04:30:17 | 2017-11-14 06:00:00 | n |
| 121513 | IIEES | THKV | E | 259 | 0.58 | 2017-11-14 04:30:24 | 2017-11-14 06:00:00 | n |
| 121514 | IIEES | DAMV | N | 133.5 | 0.59 | 2017-11-14 04:30:31 | 2017-11-14 06:00:00 | n |
| 121515 | IIEES | DAMV | E | 116.2 | 0.47 | 2017-11-14 04:30:35 | 2017-11-14 06:00:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-14 04:28:38 | -0.25 | y | 130 | 258 | |
| IIEES | ILBA | N | Sg | E | 2017-11-14 04:28:54 | 0.25 | y | 130 | 258 | |
| IIEES | SNGE | Z | Pg | E | 2017-11-14 04:28:39 | -0.54 | y | 137 | 351 | |
| IIEES | SNGE | E | Sg | E | 2017-11-14 04:28:56 | -0.26 | y | 137 | 351 | |
| IIEES | KHMZ | Z | Pn | E | 2017-11-14 04:28:51 | 0.07 | y | 221 | 93 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-14 04:28:54 | 0.26 | y | 237 | 71 | |
| IIEES | ZNJK | Z | Pn | E | 2017-11-14 04:29:05 | 0.51 | y | 326 | 18 | |
| IIEES | GHVR | Z | Pn | E | 2017-11-14 04:29:07 | 0.67 | y | 344 | 78 | |
| IIEES | THKV | Z | Pn | E | 2017-11-14 04:29:11 | 0.01 | y | 377 | 52 | |
| IIEES | CHTH | Z | Pn | E | 2017-11-14 04:29:13 | -0.52 | y | 395 | 54 | |
| IIEES | GIDE | Z | Pn | E | 2017-11-14 04:29:14 | 0.35 | y | 399 | 31 | |
| IIEES | DAMV | Z | Pn | E | 2017-11-14 04:29:19 | -0.01 | y | 447 | 63 | |
| IIEES | NASN | Z | Pn | E | 2017-11-14 04:29:26 | -0.11 | y | 501 | 102 | |
| IIEES | GRMI | Z | Pn | E | 2017-11-14 04:29:32 | 0.16 | y | 549 | 3 | |
| IIEES | AHRM | Z | Pn | E | 2017-11-14 04:29:45 | -0.1 | y | 658 | 147 | |
| IIEES | MAKU | Z | Pn | E | 2017-11-14 04:29:47 | 0.47 | y | 661 | 338 | |
| IIEES | YZKH | Z | Pn | E | 2017-11-14 04:29:46 | -1.4 | y | 674 | 102 | |
| IIEES | GHIR | Z | Pn | E | 2017-11-14 04:30:04 | -0.29 | y | 805 | 139 | |
| IIEES | SHRO | Z | Pn | E | 2017-11-14 04:30:04 | 0.22 | y | 806 | 71 | |
| IIEES | MRVT | Z | Pn | E | 2017-11-14 04:30:13 | 0.24 | y | 876 | 59 | |
| IIEES | TABS | Z | Pn | E | 2017-11-14 04:30:14 | 0 | y | 884 | 89 | |
| IIEES | BSRN | Z | Pn | E | 2017-11-14 04:30:40 | -0.26 | y | 1100 | 98 |
