Magnitude |
2.7 |
| Date & Time (UTC) | 2017-11-14 20:54:48.4 |
| Date & Time (Local) | 1396/8/24 00:24:48.4 |

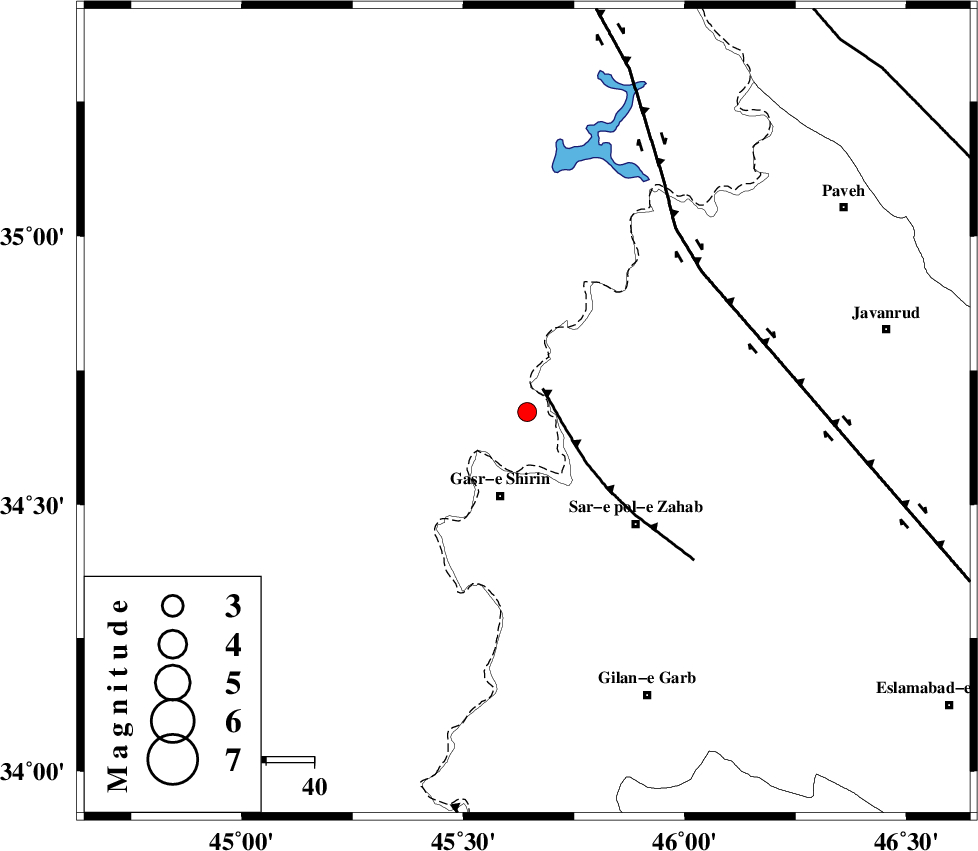

| Location | Lat:34.672 Lon: 45.644 |
| Region | Iraq, 18 km North of Qasr-E-Shirin |
Nearest Cities |
|
| 12 km of Tappeh rash, Kermanshah Province | |
| 14 km North of Aqabarar, Kermanshah Province | |
| 15 km West of Gardehnu, Kermanshah Province | |
| 16 km North West of Mirmiru, Kermanshah Province | |
| 18 km North of Qasr-E-Shirin, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 6 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 46 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 84 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 2.2 km |
| Error in Longitude | 7.7 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 121861 | IIEES | ILBA | N | 112.6 | 0.31 | 2017-11-14 20:55:28 | 2017-11-18 07:31:00 | n |
| 121862 | IIEES | SNGE | E | 167.1 | 0.41 | 2017-11-14 20:55:39 | 2017-11-18 07:31:00 | n |
| 121863 | IIEES | SNGE | N | 95.5 | 0.29 | 2017-11-14 20:55:41 | 2017-11-18 07:31:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-14 20:55:09 | -0.23 | y | 127 | 156 | |
| IIEES | ILBA | N | Sg | E | 2017-11-14 20:55:25 | 0.13 | y | 127 | 156 | |
| IIEES | SNGE | Z | Pg | E | 2017-11-14 20:55:15 | -0.19 | y | 163 | 73 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-14 20:55:46 | 0.2 | y | 402 | 91 | |
| IIEES | KHMZ | Z | Pn | E | 2017-11-14 20:55:47 | 0.06 | y | 411 | 103 | |
| IIEES | GRMI | Z | Pn | E | 2017-11-14 20:55:58 | 0.13 | y | 501 | 23 |
