Magnitude |
4.1 |
| Date & Time (UTC) | 2017-11-20 15:36:55.0 |
| Date & Time (Local) | 1396/8/29 19:06:55.0 |

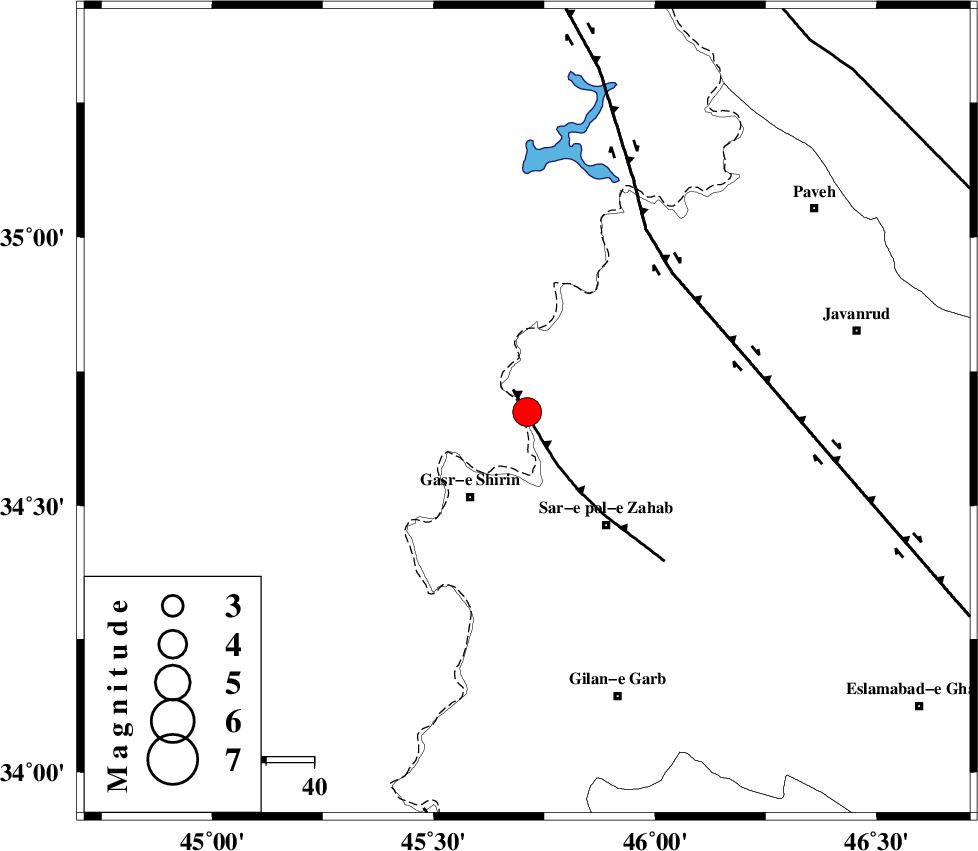

| Location | Lat:34.674 Lon: 45.711 |
| Region | Kermanshah Province, 15 km -West of Tazehabad |
Nearest Cities |
|
| 9 km of Tappeh rash, Kermanshah Province | |
| 9 km of Gardehnu, Kermanshah Province | |
| 13 km North of Mirmiru, Kermanshah Province | |
| 15 km West of Tazehabad, Kermanshah Province | |
| 15 km North of Aqabarar, Kermanshah Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 3 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 42 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 85 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | 3.2 km |
| Error in Longitude | 7 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 122135 | IIEES | ILBA | N | 3841.1 | 0.33 | 2017-11-20 15:37:38 | 2017-11-21 06:08:00 | n |
| 122136 | IIEES | SNGE | N | 2781.2 | 0.45 | 2017-11-20 15:37:47 | 2017-11-21 06:08:00 | n |
| 122137 | IIEES | SNGE | E | 2497.5 | 0.72 | 2017-11-20 15:37:49 | 2017-11-21 06:08:00 | n |
| 122138 | IIEES | GIDE | N | 170.5 | 0.73 | 2017-11-20 15:39:19 | 2017-11-21 06:08:00 | n |
| 122139 | IIEES | GHVR | N | 127.8 | 0.72 | 2017-11-20 15:39:35 | 2017-11-21 06:08:00 | n |
| 122140 | IIEES | GHVR | E | 141.4 | 0.63 | 2017-11-20 15:39:35 | 2017-11-21 06:08:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-20 15:37:16 | 0.17 | y | 125 | 158 | |
| IIEES | ILBA | N | Sg | E | 2017-11-20 15:37:32 | -0.19 | y | 125 | 158 | |
| IIEES | SNGE | Z | Pg | E | 2017-11-20 15:37:21 | -0.45 | y | 157 | 72 | |
| IIEES | SNGE | N | Sg | E | 2017-11-20 15:37:42 | 0.12 | y | 157 | 72 | |
| IIEES | ZNJK | Z | Pn | E | 2017-11-20 15:37:46 | -0.36 | y | 349 | 50 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-20 15:37:53 | 0.09 | y | 396 | 91 | |
| IIEES | GIDE | Z | Pn | E | 2017-11-20 15:38:00 | 0.28 | y | 454 | 55 | |
| IIEES | GRMI | Z | Pn | E | 2017-11-20 15:38:05 | -0.02 | y | 499 | 22 | |
| IIEES | GHVR | Z | Pn | E | 2017-11-20 15:38:07 | 0.58 | y | 508 | 91 |
