Magnitude |
3 |
| Date & Time (UTC) | 2017-11-20 17:47:04.8 |
| Date & Time (Local) | 1396/8/29 21:17:04.8 |

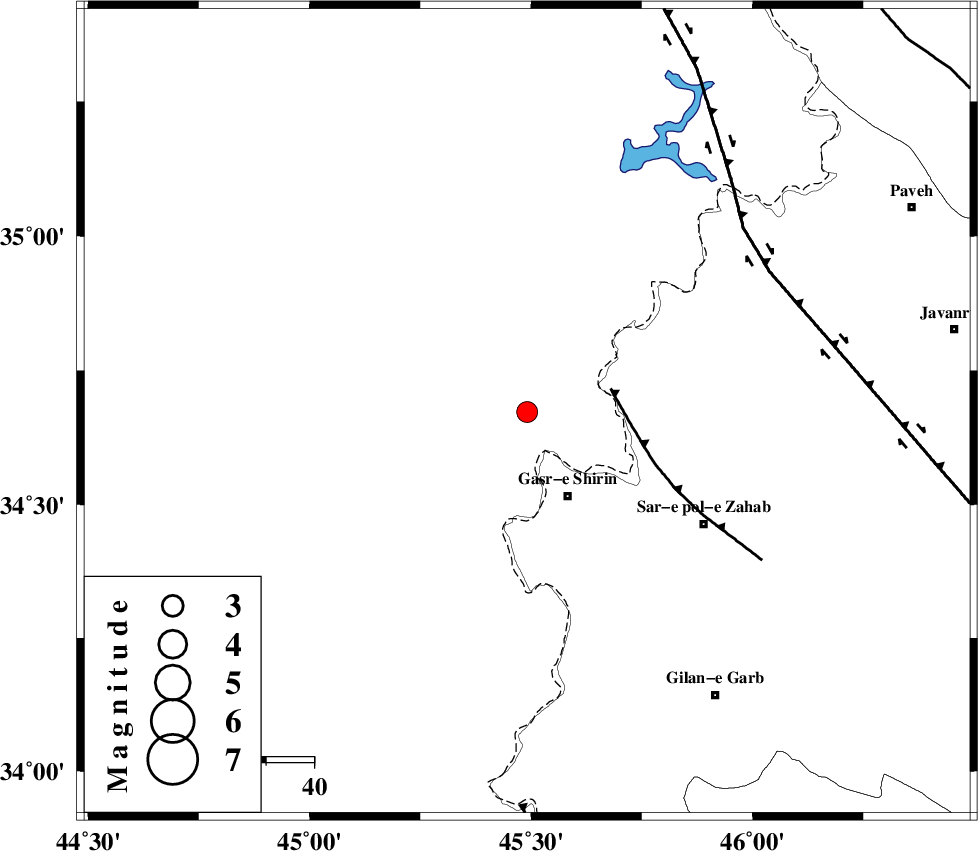

| Location | Lat:34.672 Lon: 45.491 |
| Region | Iraq, 19 km North of Qasr-E-Shirin |
Nearest Cities |
|
| 19 km North of Qasr-E-Shirin, Kermanshah Province | |
| 21 km North West of Aqabarar, Kermanshah Province | |
| 23 km West of Tappeh rash, Kermanshah Province | |
| 27 km North West of Seyyed sohrab, Kermanshah Province | |
| 28 km North West of Mirmiru, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 18 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 58 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 82 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | 3.2 km |
| Error in Longitude | 7.6 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 122161 | IIEES | SNGE | E | 202 | 0.39 | 2017-11-20 17:48:00 | 2017-11-21 08:34:00 | n |
| 122162 | IIEES | SNGE | N | 147.8 | 0.45 | 2017-11-20 17:48:00 | 2017-11-21 08:34:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-20 17:47:27 | -0.12 | y | 134 | 150 | |
| IIEES | ILBA | N | Sg | E | 2017-11-20 17:47:43 | 0.16 | y | 134 | 150 | |
| IIEES | SNGE | Z | Pg | E | 2017-11-20 17:47:33 | -0.29 | y | 176 | 74 | |
| IIEES | SNGE | N | Sg | E | 2017-11-20 17:47:55 | 0.08 | y | 176 | 74 | |
| IIEES | ZNJK | Z | Pn | E | 2017-11-20 17:47:58 | 0.42 | y | 364 | 52 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-20 17:48:04 | -0.22 | y | 416 | 91 |
