Magnitude |
3 |
| Date & Time (UTC) | 2017-11-14 20:37:21.3 |
| Date & Time (Local) | 1396/8/24 00:07:21.3 |

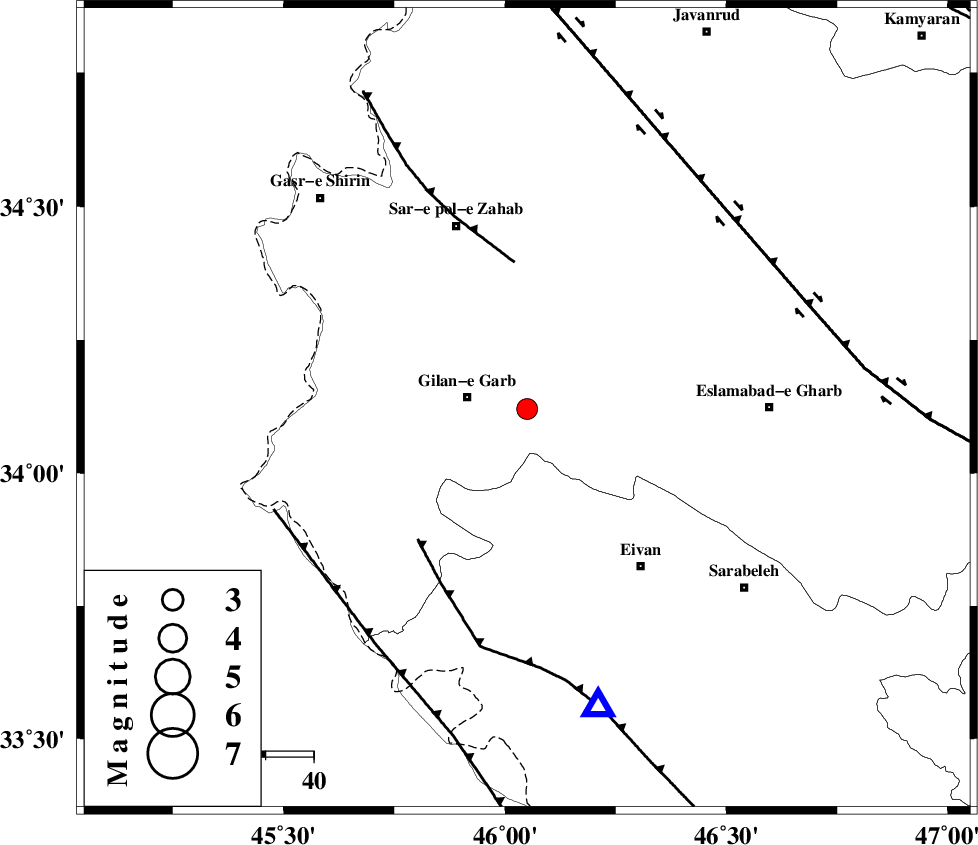

| Location | Lat:34.121 Lon: 46.05 |
| Region | Kermanshah Province, 13 km -East of Gilan-E-Gharb |
Nearest Cities |
|
| 5 km of Sarkhor namdar abdi, Kermanshah Province | |
| 8 km North of Qamarali, Kermanshah Province | |
| 13 km East of Gilan-E-Gharb, Kermanshah Province | |
| 13 km North of Nian, Kermanshah Province | |
| 19 km North of Teran, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 31 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 36 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 57 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 2.4 km |
| Error in Longitude | 8.7 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 122181 | IIEES | SNGE | N | 171.4 | 0.36 | 2017-11-14 20:38:14 | 2017-11-20 12:13:00 | n |
| 122182 | IIEES | KHMZ | N | 23.5 | 0.45 | 2017-11-14 20:39:20 | 2017-11-20 12:13:00 | n |
| 122183 | IIEES | KHMZ | E | 22 | 0.45 | 2017-11-14 20:39:21 | 2017-11-20 12:13:00 | n |
| 122184 | IIEES | ASAO | E | 30.2 | 0.67 | 2017-11-14 20:39:21 | 2017-11-20 12:13:00 | n |
| 122185 | IIEES | ASAO | N | 21.8 | 0.58 | 2017-11-14 20:39:32 | 2017-11-20 12:13:00 | n |
| 122186 | IIEES | GIDE | N | 10.6 | 0.62 | 2017-11-14 20:39:55 | 2017-11-20 12:13:00 | n |
| 122187 | IIEES | GHVR | N | 13.5 | 0.64 | 2017-11-14 20:39:06 | 2017-11-20 12:13:00 | n |
| 122188 | IIEES | GHVR | E | 18.3 | 0.64 | 2017-11-14 20:39:10 | 2017-11-20 12:13:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-14 20:37:31 | -0.25 | y | 57 | 165 | |
| IIEES | ILBA | N | Sg | E | 2017-11-14 20:37:39 | 0.24 | y | 57 | 165 | |
| IIEES | SNGE | Z | Pg | E | 2017-11-14 20:37:47 | -0.06 | y | 161 | 47 | |
| IIEES | SNGE | N | Sg | E | 2017-11-14 20:38:07 | 0.06 | y | 161 | 47 | |
| IIEES | KHMZ | Z | Pn | E | 2017-11-14 20:38:14 | 0.04 | y | 364 | 96 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-14 20:38:15 | -0.01 | y | 369 | 82 | |
| IIEES | ZNJK | Z | Pn | E | 2017-11-14 20:38:15 | 0.47 | y | 371 | 39 | |
| IIEES | GIDE | Z | Pn | E | 2017-11-14 20:38:27 | -0.19 | y | 468 | 47 | |
| IIEES | GHVR | Z | Pn | E | 2017-11-14 20:38:28 | -0.39 | y | 480 | 84 |
