Magnitude |
3.2 |
| Date & Time (UTC) | 2017-11-22 04:13:46.5 |
| Date & Time (Local) | 1396/9/1 07:43:46.5 |

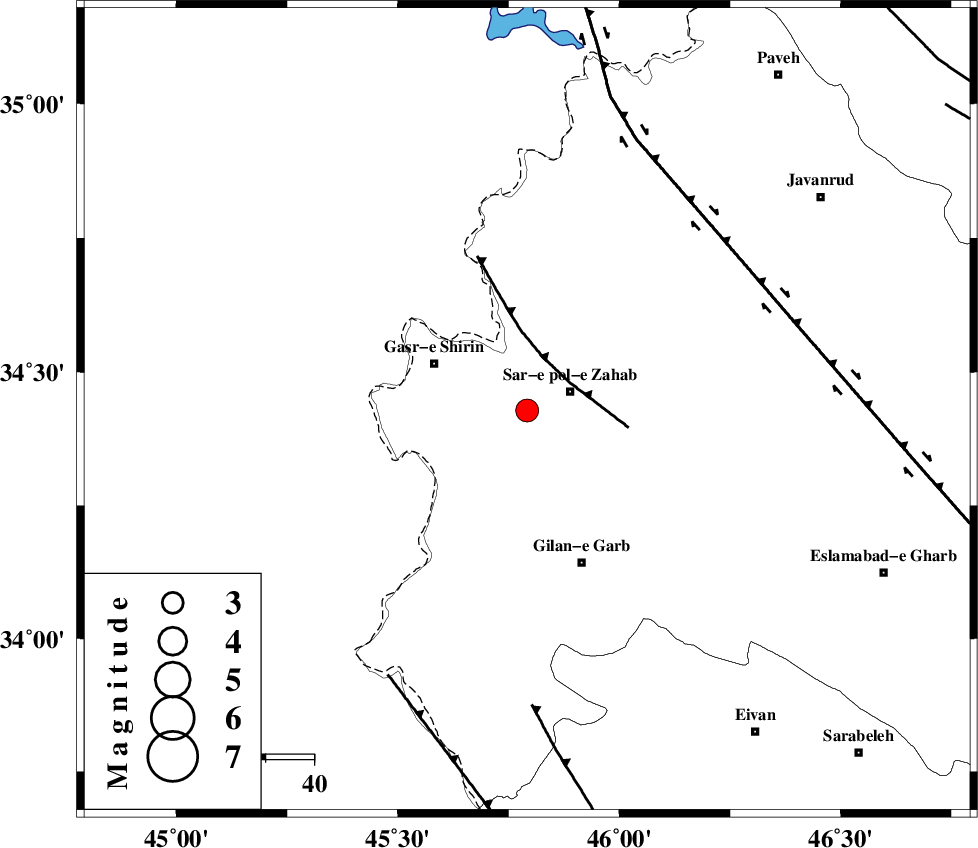

| Location | Lat:34.428 Lon: 45.792 |
| Region | Kermanshah Province, 10 km of Sar-e pol-e zahab |
Nearest Cities |
|
| 7 km of Qareh belagh, Kermanshah Province | |
| 10 km of Sar-e pol-e zahab, Kermanshah Province | |
| 12 km North West of Tarkveys, Kermanshah Province | |
| 14 km North of Chub baghan, Kermanshah Province | |
| 16 km South of Mirmiru, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 11 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 54 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 61 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | 3.1 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 122286 | IIEES | SNGE | N | 460.3 | 0.62 | 2017-11-22 04:14:40 | 2017-11-22 06:25:00 | n |
| 122287 | IIEES | SNGE | E | 238.9 | 0.62 | 2017-11-22 04:14:40 | 2017-11-22 06:25:00 | n |
| 122288 | IIEES | ASAO | N | 22.4 | 0.5 | 2017-11-22 04:15:57 | 2017-11-22 06:25:00 | n |
| 122289 | IIEES | GHVR | E | 13.6 | 0.5 | 2017-11-22 04:16:14 | 2017-11-22 06:25:00 | n |
| 122290 | IIEES | GHVR | N | 20.2 | 0.7 | 2017-11-22 04:16:22 | 2017-11-22 06:25:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-22 04:14:02 | -0.58 | y | 97 | 157 | |
| IIEES | ILBA | N | Sg | E | 2017-11-22 04:14:15 | 0.21 | y | 97 | 157 | |
| IIEES | SNGE | Z | Pg | E | 2017-11-22 04:14:12 | -0.42 | y | 160 | 62 | |
| IIEES | SNGE | E | Sg | E | 2017-11-22 04:14:32 | -0.14 | y | 160 | 62 | |
| IIEES | ZNJK | Z | Pn | E | 2017-11-22 04:14:39 | 0.06 | y | 362 | 46 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-22 04:14:43 | 0.76 | y | 389 | 87 | |
| IIEES | GHVR | Z | Pn | E | 2017-11-22 04:14:56 | 0.28 | y | 501 | 88 | |
| IIEES | GRMI | Z | Pn | E | 2017-11-22 04:14:59 | 0.11 | y | 521 | 21 | |
| IIEES | MAKU | Z | Pn | E | 2017-11-22 04:15:03 | 0.01 | y | 556 | 350 |
