Magnitude |
3.4 |
| Date & Time (UTC) | 2017-11-21 22:05:00.9 |
| Date & Time (Local) | 1396/9/1 01:35:00.9 |

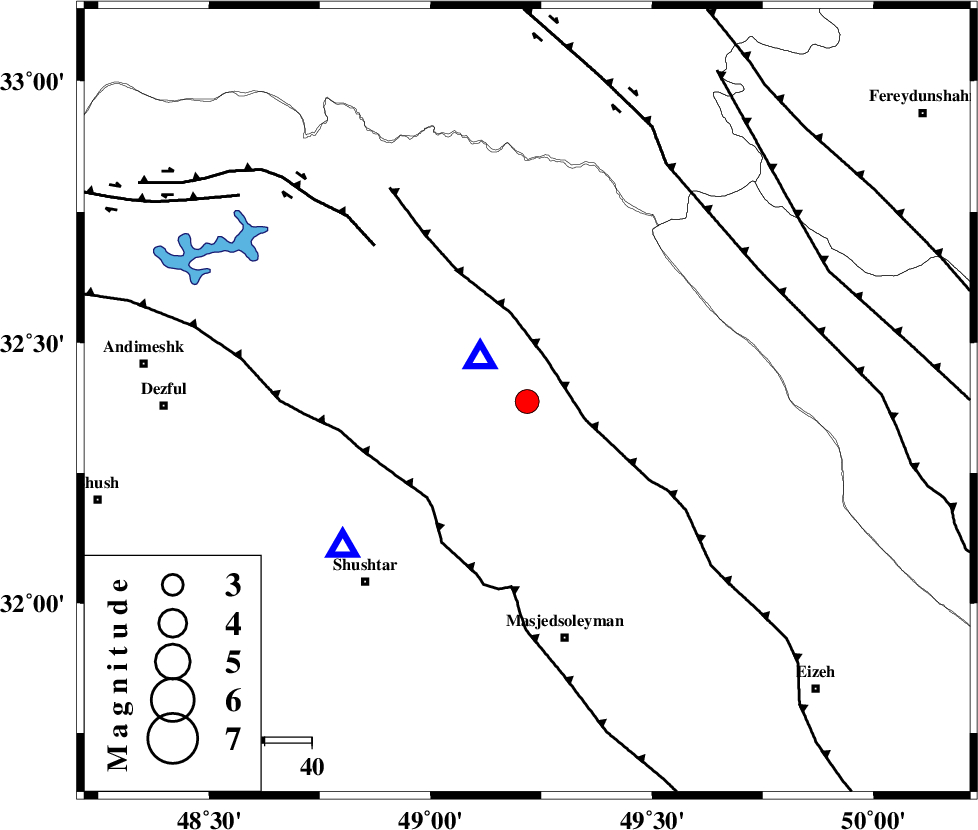

| Location | Lat:32.387 Lon: 49.218 |
| Region | Khoozestan Province, 10 km -East of Lali |
Nearest Cities |
|
| 10 km East of Lali, Khoozestan Province | |
| 16 km North of Jaefarabad, Khoozestan Province | |
| 29 km North West of Qale-yekhvaju, Khoozestan Province | |
| 32 km North East of Haft shahidan, Khoozestan Province | |
| 34 km North West of Paabshalal, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 10 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 29 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 46 km | |
| Number of Phases | 15 |
| RMS | 0.5 |
| Number of Stations | 15 |
| Error in Latitude | 5.3 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 122356 | IIEES | KHMZ | E | 359.2 | 0.52 | 2017-11-21 22:05:51 | 2017-11-22 08:57:00 | n |
| 122357 | IIEES | ASAO | N | 267.2 | 0.66 | 2017-11-21 22:06:18 | 2017-11-22 08:57:00 | n |
| 122358 | IIEES | GHVR | E | 131.9 | 0.71 | 2017-11-21 22:06:33 | 2017-11-22 08:57:00 | n |
| 122359 | IIEES | SNGE | E | 61.2 | 0.54 | 2017-11-21 22:06:45 | 2017-11-22 08:57:00 | n |
| 122360 | IIEES | SNGE | N | 77 | 0.34 | 2017-11-21 22:06:47 | 2017-11-22 08:57:00 | n |
| 122361 | IIEES | THKV | E | 34.2 | 0.5 | 2017-11-21 22:07:12 | 2017-11-22 08:57:00 | n |
| 122362 | IIEES | AHRM | E | 40.1 | 0.63 | 2017-11-21 22:07:18 | 2017-11-22 08:57:00 | n |
| 122363 | IIEES | AHRM | N | 39.8 | 0.63 | 2017-11-21 22:07:26 | 2017-11-22 08:57:00 | n |
| 122364 | IIEES | GHIR | E | 13.3 | 0.53 | 2017-11-21 22:07:35 | 2017-11-22 08:57:00 | n |
| 122365 | IIEES | GHIR | N | 13.4 | 0.35 | 2017-11-21 22:07:42 | 2017-11-22 08:57:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pg | E | 2017-11-21 22:05:28 | -0.23 | y | 165 | 25 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-21 22:05:39 | -0.07 | y | 251 | 17 | |
| IIEES | GHVR | Z | Pn | E | 2017-11-21 22:05:46 | 0.82 | y | 299 | 39 | |
| IIEES | ILBA | Z | Pn | E | 2017-11-21 22:05:47 | -0.06 | y | 313 | 297 | |
| IIEES | NASN | Z | Pn | E | 2017-11-21 22:05:51 | 0.66 | y | 340 | 81 | |
| IIEES | SNGE | Z | Pn | E | 2017-11-21 22:05:51 | 0.15 | y | 347 | 330 | |
| IIEES | THKV | Z | Pn | E | 2017-11-21 22:06:00 | 0.06 | y | 420 | 21 | |
| IIEES | AHRM | Z | Pn | E | 2017-11-21 22:06:03 | 0.73 | y | 438 | 152 | |
| IIEES | DAMV | Z | Pn | E | 2017-11-21 22:06:03 | -0.36 | y | 441 | 34 | |
| IIEES | ZNJK | Z | Pn | E | 2017-11-21 22:06:07 | -0.21 | y | 478 | 354 | |
| IIEES | YZKH | Z | Pn | E | 2017-11-21 22:06:11 | -0.18 | y | 506 | 89 | |
| IIEES | GHIR | Z | Pn | E | 2017-11-21 22:06:19 | -1.14 | y | 581 | 140 | |
| IIEES | SHRO | Z | Pn | E | 2017-11-21 22:06:40 | -0.45 | y | 744 | 55 | |
| IIEES | TABS | Z | Pn | E | 2017-11-21 22:06:41 | -0.4 | y | 751 | 77 | |
| IIEES | BSRN | Z | Pn | E | 2017-11-21 22:07:04 | -0.72 | y | 935 | 90 |
