Magnitude |
2.8 |
| Date & Time (UTC) | 2017-11-21 20:30:05.9 |
| Date & Time (Local) | 1396/9/1 00:00:05.9 |

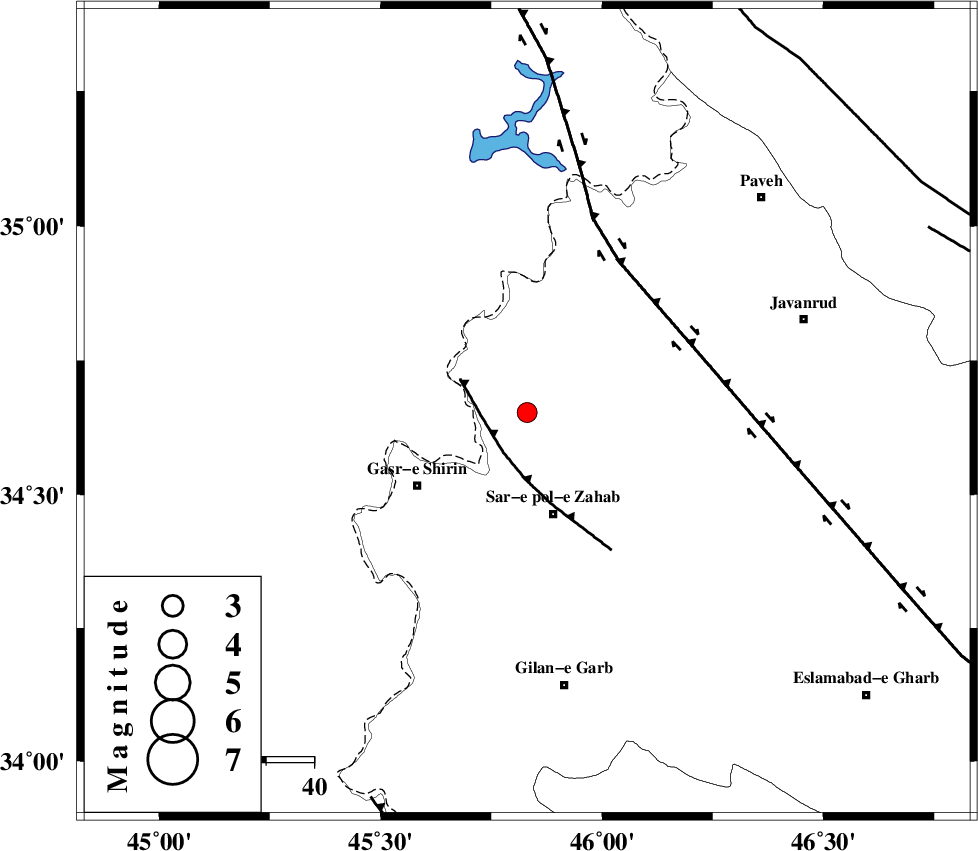

| Location | Lat:34.653 Lon: 45.831 |
| Region | Kermanshah Province, 12 km South of Tazehabad |
Nearest Cities |
|
| 7 km of Gardehnu, Kermanshah Province | |
| 8 km North of Bazmirabad, Kermanshah Province | |
| 11 km North of Mirmiru, Kermanshah Province | |
| 12 km South of Tazehabad, Kermanshah Province | |
| 15 km South East of Tappeh rash, Kermanshah Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 9 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 36 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 86 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | 4 km |
| Error in Longitude | 9 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 122381 | IIEES | ILBA | N | 223.3 | 0.38 | 2017-11-21 20:30:47 | 2017-11-22 11:30:00 | n |
| 122382 | IIEES | SNGE | N | 96.7 | 0.76 | 2017-11-21 20:30:56 | 2017-11-22 11:30:00 | n |
| 122383 | IIEES | ASAO | E | 9 | 0.52 | 2017-11-21 20:32:10 | 2017-11-22 11:30:00 | n |
| 122384 | IIEES | ASAO | N | 11.1 | 0.73 | 2017-11-21 20:32:10 | 2017-11-22 11:30:00 | n |
| 122385 | IIEES | GHVR | E | 6.4 | 0.6 | 2017-11-21 20:32:33 | 2017-11-22 11:30:00 | n |
| 122386 | IIEES | GHVR | N | 16.3 | 0.87 | 2017-11-21 20:32:46 | 2017-11-22 11:30:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-21 20:30:25 | -0.45 | y | 119 | 163 | |
| IIEES | ILBA | N | Sg | E | 2017-11-21 20:30:40 | 0.23 | y | 119 | 163 | |
| IIEES | SNGE | Z | Pg | E | 2017-11-21 20:30:30 | 0.52 | y | 147 | 70 | |
| IIEES | SNGE | E | Sg | E | 2017-11-21 20:30:48 | -0.3 | y | 147 | 70 | |
| IIEES | ZNJK | Z | Pn | E | 2017-11-21 20:30:55 | -0.09 | y | 342 | 48 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-21 20:31:01 | 0.07 | y | 385 | 91 | |
| IIEES | KHMZ | Z | Pn | E | 2017-11-21 20:31:02 | 0.07 | y | 394 | 104 | |
| IIEES | GHVR | Z | Pn | E | 2017-11-21 20:31:14 | -0.05 | y | 497 | 91 |
