Magnitude |
3.4 |
| Date & Time (UTC) | 2017-11-26 00:42:44.5 |
| Date & Time (Local) | 1396/9/5 04:12:44.5 |

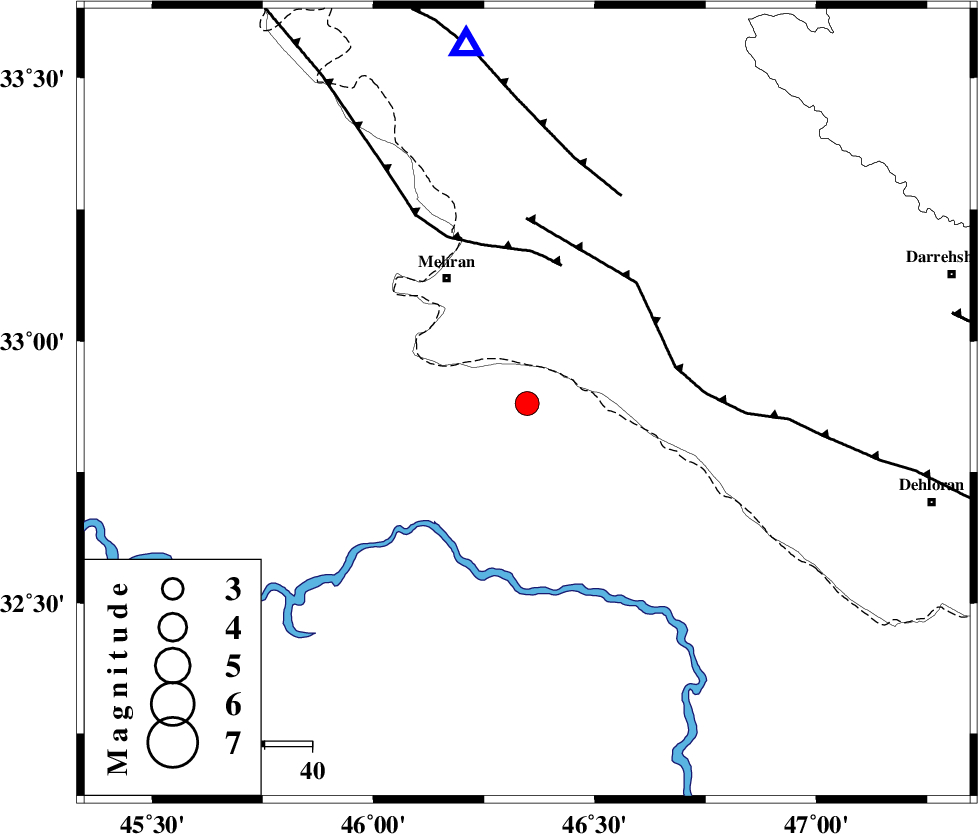

| Location | Lat:32.881 Lon: 46.347 |
| Region | , 31 km South-East of Mehran |
Nearest Cities |
|
| 31 km South East of Mehran, Ilam Province | |
| 45 km South West of Gonbad-e pirmohammad, Ilam Province | |
| 51 km South of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 59 km North West of Bishehzar, Ilam Province | |
| 63 km South West of Mehr, Ilam Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 30 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 32 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 48 km | |
| Number of Phases | 16 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | 4.4 km |
| Error in Longitude | 9 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 122530 | IIEES | SNGE | N | 107.9 | 0.48 | 2017-11-26 00:44:02 | 2017-11-26 06:17:00 | n |
| 122531 | IIEES | GHVR | N | 35.3 | 0.42 | 2017-11-26 00:44:49 | 2017-11-26 06:17:00 | n |
| 122532 | IIEES | GHVR | E | 47.8 | 0.57 | 2017-11-26 00:44:50 | 2017-11-26 06:17:00 | n |
| 122533 | IIEES | THKV | E | 22.2 | 0.5 | 2017-11-26 00:44:57 | 2017-11-26 06:17:00 | n |
| 122534 | IIEES | THKV | N | 14.5 | 0.43 | 2017-11-26 00:44:58 | 2017-11-26 06:17:00 | n |
| 122535 | IIEES | GIDE | N | 13.7 | 0.49 | 2017-11-26 00:45:28 | 2017-11-26 06:17:00 | n |
| 122536 | IIEES | DAMV | E | 9.4 | 0.54 | 2017-11-26 00:45:11 | 2017-11-26 06:17:00 | n |
| 122537 | IIEES | DAMV | N | 10.9 | 0.36 | 2017-11-26 00:45:12 | 2017-11-26 06:17:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-26 00:42:59 | -0.03 | y | 83.5 | 351 | |
| IIEES | ILBA | N | Sg | E | 2017-11-26 00:43:09 | -0.06 | y | 83.5 | 351 | |
| IIEES | SNGE | Z | Pn | E | 2017-11-26 00:43:25 | 0.13 | y | 262 | 20 | |
| IIEES | SNGE | E | S | E | 2017-11-26 00:43:55 | -0.13 | y | 262 | 20 | |
| IIEES | KHMZ | Z | Pn | E | 2017-11-26 00:43:36 | 0.11 | y | 350 | 73 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-26 00:43:41 | 0.04 | y | 388 | 61 | |
| IIEES | ZNJK | Z | Pn | E | 2017-11-26 00:43:52 | 0.56 | y | 472 | 26 | |
| IIEES | GHVR | Z | Pn | E | 2017-11-26 00:43:53 | 0.01 | y | 488 | 67 | |
| IIEES | THKV | Z | Pn | E | 2017-11-26 00:43:59 | -0.06 | y | 536 | 50 | |
| IIEES | CHTH | Z | Pn | E | 2017-11-26 00:44:01 | -0.75 | n | 4 | 553 | 51 |
| IIEES | GIDE | Z | Pn | E | 2017-11-26 00:44:01 | 0 | y | 554 | 35 | |
| IIEES | DAMV | Z | Pn | E | 2017-11-26 00:44:07 | 0.11 | y | 601 | 58 | |
| IIEES | NASN | Z | Pn | E | 2017-11-26 00:44:08 | 0.12 | y | 605 | 89 | |
| IIEES | GRMI | Z | Pn | E | 2017-11-26 00:44:16 | -0.26 | y | 673 | 12 | |
| IIEES | MAKU | Z | Pn | E | 2017-11-26 00:44:24 | -0.1 | y | 734 | 349 | |
| IIEES | YZKH | Z | Pn | E | 2017-11-26 00:44:28 | -0.98 | y | 775 | 92 |
