Magnitude |
2.5 |
| Date & Time (UTC) | 2017-11-24 01:01:45.0 |
| Date & Time (Local) | 1396/9/3 04:31:45.0 |
| Location | Lat:32.831 Lon: 46.234 |
| Region | Iraq, 33 km South of Mehran |
Nearest Cities |
|
| 33 km South of Mehran, Ilam Province | |
| 55 km South West of Gonbad-e pirmohammad, Ilam Province | |
| 59 km South West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| 69 km North West of Bishehzar, Ilam Province | |
| 71 km South West of Mehr, Ilam Province | |
| Depth | 18 km |
| Agency | |

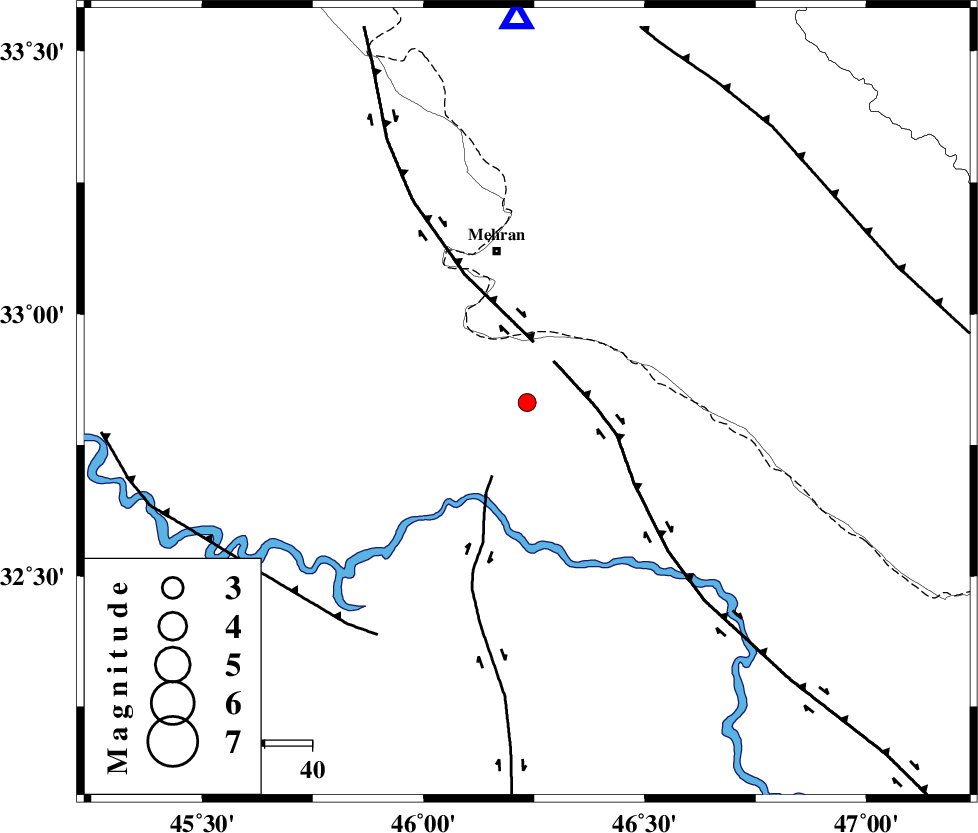

Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 39 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 44 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 58 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 2.9 km |
| Error in Longitude | 8.3 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 122619 | IIEES | ILBA | N | 153.3 | 0.66 | 2017-11-24 01:02:14 | 2017-11-26 08:19:00 | n |
| 122620 | IIEES | SNGE | E | 16.9 | 0.61 | 2017-11-24 01:03:03 | 2017-11-26 08:19:00 | n |
| 122621 | IIEES | SNGE | N | 19.1 | 0.51 | 2017-11-24 01:03:06 | 2017-11-26 08:19:00 | n |
| 122622 | IIEES | KHMZ | N | 8 | 0.61 | 2017-11-24 01:03:20 | 2017-11-26 08:19:00 | n |
| 122623 | IIEES | KHMZ | E | 7.6 | 0.27 | 2017-11-24 01:03:29 | 2017-11-26 08:19:00 | n |
| 122624 | IIEES | ASAO | E | 6.6 | 0.45 | 2017-11-24 01:03:30 | 2017-11-26 08:19:00 | n |
| 122625 | IIEES | ASAO | N | 4.2 | 0.67 | 2017-11-24 01:03:47 | 2017-11-26 08:19:00 | n |
| 122626 | IIEES | GHVR | E | 4.7 | 0.76 | 2017-11-24 01:03:49 | 2017-11-26 08:19:00 | n |
| 122627 | IIEES | GHVR | N | 5.4 | 0.76 | 2017-11-24 01:04:12 | 2017-11-26 08:19:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-11-24 01:02:00 | -0.09 | y | 88.1 | 358 | |
| IIEES | ILBA | N | Sg | E | 2017-11-24 01:02:11 | 0.06 | y | 88.1 | 358 | |
| IIEES | SNGE | Z | Pn | E | 2017-11-24 01:02:26 | 0.1 | y | 271 | 22 | |
| IIEES | SNGE | N | S | E | 2017-11-24 01:02:56 | -0.05 | y | 271 | 22 | |
| IIEES | KHMZ | Z | Pn | E | 2017-11-24 01:02:37 | 0.09 | y | 362 | 73 | |
| IIEES | ASAO | Z | Pn | E | 2017-11-24 01:02:42 | -0.04 | y | 400 | 61 | |
| IIEES | GHVR | Z | Pn | E | 2017-11-24 01:02:54 | -0.07 | y | 500 | 67 |
