eventspec – IIEES Earthquake Process Program

Magnitude	3.6
Date & Time (UTC)	2017-11-23 00:28:10.2
Date & Time (Local)	1396/9/2 03:58:10.2

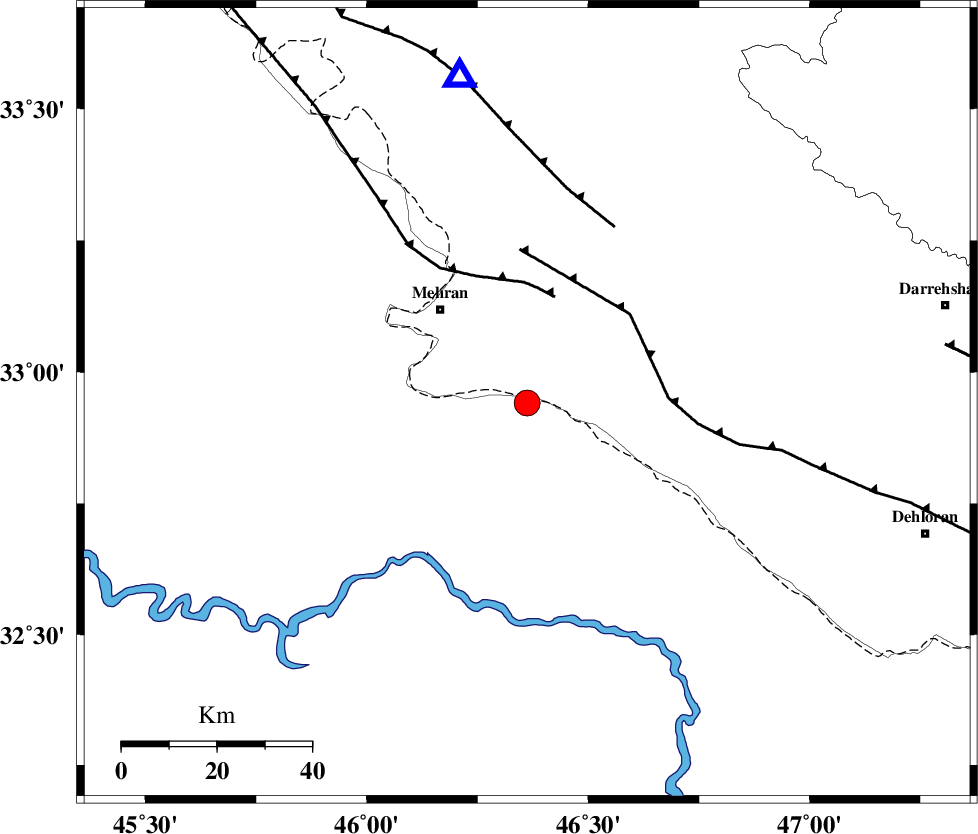

Location	Lat:32.941 Lon: 46.362
Region	, 27 km South-East of Mehran
Nearest Cities
	27 km South East of Mehran, Ilam Province
	38 km South West of Gonbad-e pirmohammad, Ilam Province
	44 km South of Galeh-yedarre-hemalakshahi, Ilam Province
	56 km South West of Mehr, Ilam Province
	59 km North West of Bishehzar, Ilam Province
Depth	8 km
Agency
Faults within 150 km:
	ZFF4 (Length: 128 km) , Distance to epicenter: 23 km
	MFF6 (Length: 144 km) , Distance to epicenter: 28 km
	MFF7 (Length: 99 km) , Distance to epicenter: 42 km
Number of Phases	12
RMS	0.1
Number of Stations	10
Error in Latitude	3.8 km
Error in Longitude	7.4 km
Error in Depth	4.5 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
122634	IIEES	GHVR	N	44.5	0.54	2017-11-23 00:30:14	2017-11-26 08:19:00	n
122635	IIEES	GHVR	E	52.7	0.58	2017-11-23 00:30:14	2017-11-26 08:19:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Input Weight	Distance	Azimuth
IIEES	ILBA	Z	Pg	E	2017-11-23 00:28:23	-0.04	y		77.1	349
IIEES	ILBA	N	Sg	E	2017-11-23 00:28:33	0.04	y		77.1	349
IIEES	SNGE	Z	Pn	E	2017-11-23 00:28:50	0.08	y		255	21
IIEES	KHMZ	Z	Pn	E	2017-11-23 00:29:01	0.07	y		347	74
IIEES	ASAO	Z	Pn	E	2017-11-23 00:29:06	0.03	y		383	61
IIEES	ZNJK	Z	Pn	E	2017-11-23 00:29:16	-0.03	y		465	27
IIEES	GHVR	Z	Pn	E	2017-11-23 00:29:18	0.04	y		484	68
IIEES	THKV	Z	Pn	E	2017-11-23 00:29:24	-0.05	y		530	50
IIEES	GIDE	Z	Pn	E	2017-11-23 00:29:26	-0.12	y		548	35
IIEES	CHTH	Z	Pn	E	2017-11-23 00:29:25	-0.95	n	4	548	52
IIEES	DAMV	Z	Pn	E	2017-11-23 00:29:32	-0.17	y		596	58
IIEES	YZKH	Z	Pn	E	2017-11-23 00:29:55	0.07	y		774	92
