Magnitude |
5 |
| Date & Time (UTC) | 2017-12-01 02:43:25.4 |
| Date & Time (Local) | 1396/9/10 06:13:25.4 |
| Location | Lat:30.65 Lon: 57.457 |
| Region | Kerman Province, 54 km North-East of Kerman |
Nearest Cities |
|
| 24 km North East of Dehlulu, Kerman Province | |
| 31 km East of Harjand, Kerman Province | |
| 35 km North West of Shahdad, Kerman Province | |
| 45 km North West of Estehkam, Kerman Province | |
| 47 km South East of Hejdak, Kerman Province | |
| Depth | 14 km |
| Agency | |

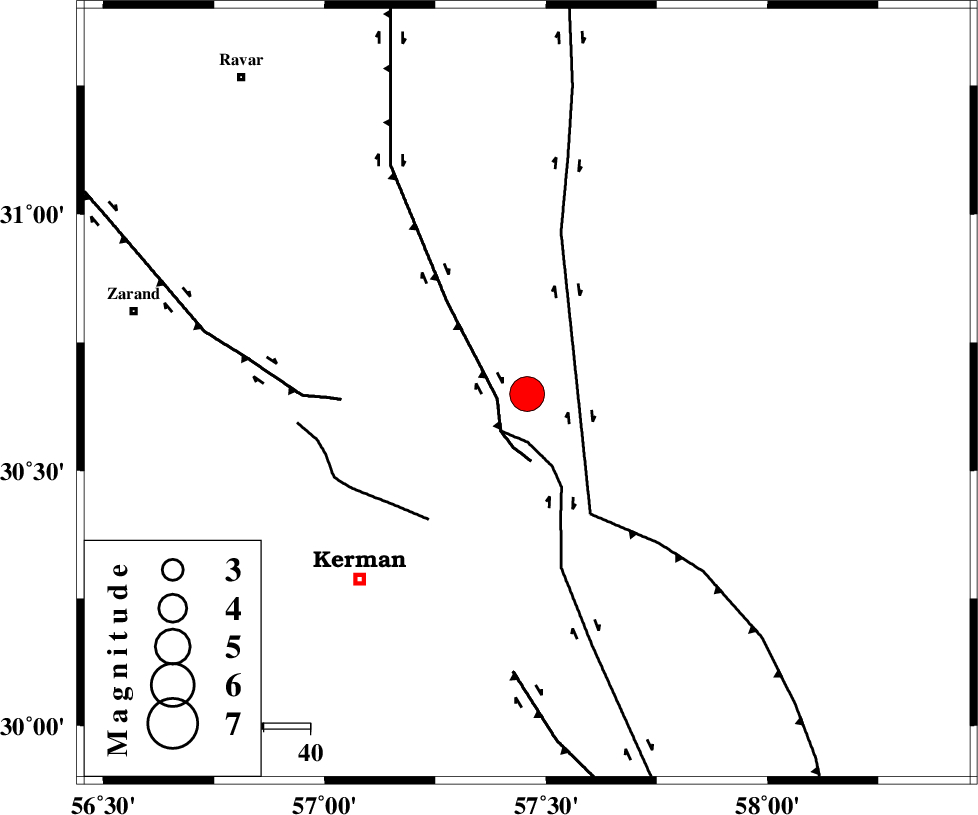

Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 6 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 10 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 30 km | |
| Number of Phases | 23 |
| RMS | 0.3 |
| Number of Stations | 21 |
| Error in Latitude | 2.3 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 122985 | IIEES | BSRN | N | 10988.5 | 0.39 | 2017-12-01 02:44:30 | 2017-12-01 08:00:00 | n |
| 122986 | IIEES | BSRN | E | 13630.3 | 0.58 | 2017-12-01 02:44:34 | 2017-12-01 08:00:00 | n |
| 122987 | IIEES | YZKH | E | 2600.1 | 0.61 | 2017-12-01 02:45:02 | 2017-12-01 08:00:00 | n |
| 122988 | IIEES | YZKH | N | 2784.1 | 0.61 | 2017-12-01 02:45:11 | 2017-12-01 08:00:00 | n |
| 122989 | IIEES | TABS | N | 3935.6 | 0.64 | 2017-12-01 02:45:08 | 2017-12-01 08:00:00 | n |
| 122990 | IIEES | NASN | N | 866.3 | 0.9 | 2017-12-01 02:45:47 | 2017-12-01 08:00:00 | n |
| 122991 | IIEES | SHRO | E | 575.7 | 0.72 | 2017-12-01 02:46:26 | 2017-12-01 08:00:00 | n |
| 122992 | IIEES | SHRO | N | 341.1 | 0.72 | 2017-12-01 02:46:28 | 2017-12-01 08:00:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2017-12-01 02:43:42 | -0.05 | y | 99.8 | 222 | |
| IIEES | BSRN | Z | Pn | E | 2017-12-01 02:43:59 | -0.11 | y | 216 | 47 | |
| IIEES | YZKH | Z | Pn | E | 2017-12-01 02:44:14 | 0.02 | y | 334 | 306 | |
| IIEES | YZKH | N | Sg | E | 2017-12-01 02:44:58 | -0.27 | y | 334 | 306 | |
| IIEES | TABS | Z | Pn | E | 2017-12-01 02:44:15 | 0.48 | y | 334 | 355 | |
| IIEES | BNDS | Z | Pn | E | 2017-12-01 02:44:23 | 2.49 | n | 4 | 381 | 199 |
| IIEES | SHRT | Z | Pn | E | 2017-12-01 02:44:25 | -0.2 | y | 426 | 38 | |
| IIEES | NASN | Z | Pn | E | 2017-12-01 02:44:35 | 0.18 | y | 501 | 300 | |
| IIEES | GHIR | Z | Pn | E | 2017-12-01 02:44:36 | 0.25 | y | 507 | 240 | |
| IIEES | SHRO | Z | Pn | E | 2017-12-01 02:44:48 | -0.13 | y | 609 | 348 | |
| IIEES | CHBR | Z | Pn | E | 2017-12-01 02:44:51 | -0.2 | y | 634 | 151 | |
| IIEES | GHVR | Z | Pn | E | 2017-12-01 02:45:03 | 0.23 | y | 721 | 308 | |
| IIEES | DAMV | Z | Pn | E | 2017-12-01 02:45:06 | -0.38 | y | 753 | 319 | |
| IIEES | KHMZ | Z | Pn | E | 2017-12-01 02:45:11 | 0.42 | y | 785 | 298 | |
| IIEES | MRVT | Z | Pn | E | 2017-12-01 02:45:11 | 0.06 | y | 788 | 351 | |
| IIEES | ASAO | Z | Pn | E | 2017-12-01 02:45:15 | 0.19 | y | 820 | 304 | |
| IIEES | CHTH | Z | Pn | E | 2017-12-01 02:45:16 | -0.24 | y | 829 | 316 | |
| IIEES | THKV | Z | Pn | E | 2017-12-01 02:45:18 | 0.58 | y | 846 | 315 | |
| IIEES | GIDE | Z | Pn | E | 2017-12-01 02:45:36 | 0.27 | y | 986 | 317 | |
| IIEES | ZNJK | Z | Pn | E | 2017-12-01 02:45:43 | -0.45 | y | 1052 | 312 | |
| IIEES | SNGE | Z | Pn | E | 2017-12-01 02:45:45 | -0.57 | y | 1066 | 300 | |
| IIEES | ILBA | Z | Pn | E | 2017-12-01 02:45:49 | -1.17 | y | 1111 | 290 | |
| IIEES | GRMI | Z | Pn | E | 2017-12-01 02:46:09 | -0.5 | y | 1258 | 319 |
