eventspec – IIEES Earthquake Process Program

Magnitude	3.6
Date & Time (UTC)	2017-11-30 22:29:15.9
Date & Time (Local)	1396/9/10 01:59:15.9

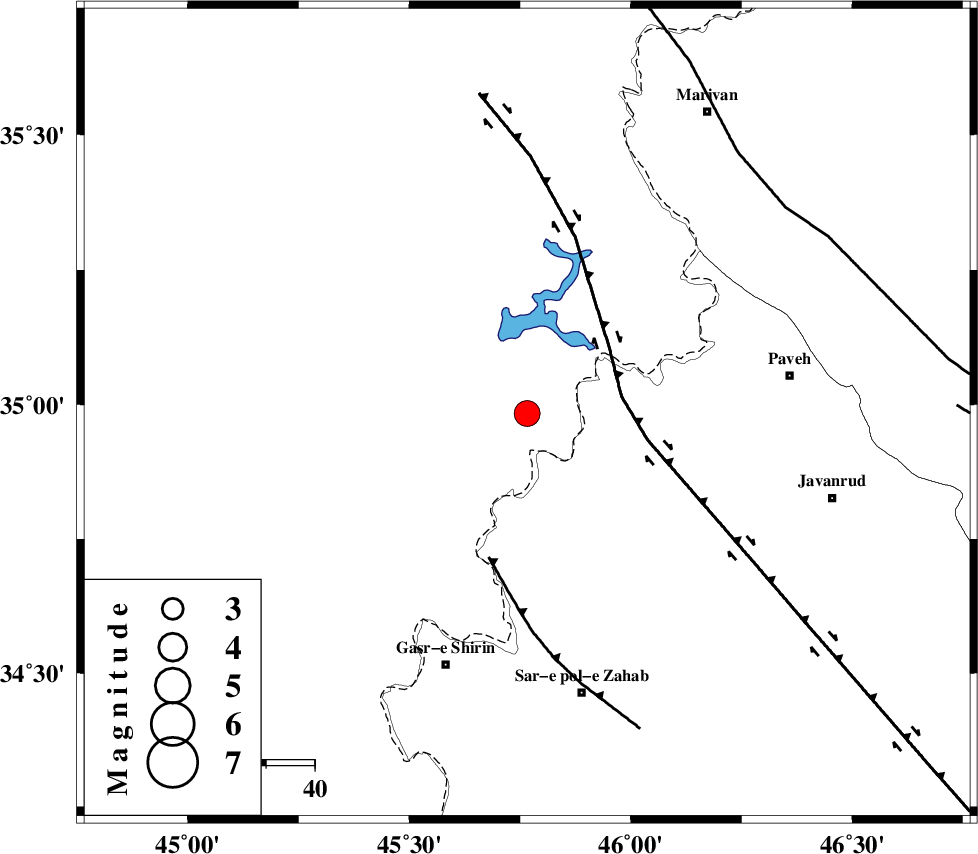

Location	Lat:34.983 Lon: 45.766
Region	Iraq, 25 km North of Tazehabad
Nearest Cities
	19 km West of Markhil, Kermanshah Province
	24 km North West of Dehsheykh, Kermanshah Province
	25 km North of Tazehabad, Kermanshah Province
	26 km North of Tappeh rash, Kermanshah Province
	30 km North of Gardehnu, Kermanshah Province
Depth	6 km
Agency
Faults within 150 km:
	HZF4 (Length: 492 km) , Distance to epicenter: 20 km
	MFF8 (Length: 48 km) , Distance to epicenter: 31 km
	PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 68 km
Number of Phases	13
RMS	0.3
Number of Stations	11
Error in Latitude	2.5 km
Error in Longitude	4 km
Error in Depth	5.3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
123379	IIEES	SNGE	E	533.3	0.33	2017-11-30 22:30:06	2017-12-04 11:37:00	n
123380	IIEES	ILBA	N	1483.8	0.48	2017-11-30 22:30:06	2017-12-04 11:37:00	n
123381	IIEES	GIDE	N	58.2	0.67	2017-11-30 22:31:35	2017-12-04 11:37:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Distance	Azimuth
IIEES	SNGE	Z	Pg	E	2017-11-30 22:29:40	-0.21	y	145	85
IIEES	SNGE	N	Sg	E	2017-11-30 22:29:59	-0.23	y	145	85
IIEES	ILBA	Z	Pg	E	2017-11-30 22:29:42	-0.41	y	156	165
IIEES	ILBA	N	Sg	E	2017-11-30 22:30:02	0.16	y	156	165
IIEES	ZNJK	Z	Pn	E	2017-11-30 22:30:05	0.36	y	323	54
IIEES	ASAO	Z	Pn	E	2017-11-30 22:30:14	0.5	y	393	96
IIEES	KHMZ	Z	Pn	E	2017-11-30 22:30:15	0.09	y	410	108
IIEES	GIDE	Z	Pn	E	2017-11-30 22:30:18	0.01	y	431	59
IIEES	GRMI	Z	Pn	E	2017-11-30 22:30:22	0.16	y	465	23
IIEES	MAKU	Z	Pn	E	2017-11-30 22:30:25	-0.37	y	495	349
IIEES	CHTH	Z	Pn	E	2017-11-30 22:30:26	-0.03	y	497	77
IIEES	GHVR	Z	Pn	E	2017-11-30 22:30:27	-0.03	y	505	95
IIEES	DAMV	Z	Pn	E	2017-11-30 22:30:35	0.11	y	569	81
