Magnitude |
2.2 |
| Date & Time (UTC) | 2017-11-28 19:08:59.4 |
| Date & Time (Local) | 1396/9/7 22:38:59.4 |
| Location | Lat:30.199 Lon: 57.582 |
| Region | Kerman Province, 49 km -East of Kerman |
Nearest Cities |
|
| 2 km North of Sirch, Kerman Province | |
| 11 km North of Jushan, Kerman Province | |
| 27 km South West of Shahdad, Kerman Province | |
| 33 km North East of Mahan, Kerman Province | |
| 33 km North East of Langar, Kerman Province | |
| Depth | 14 km |
| Agency | |

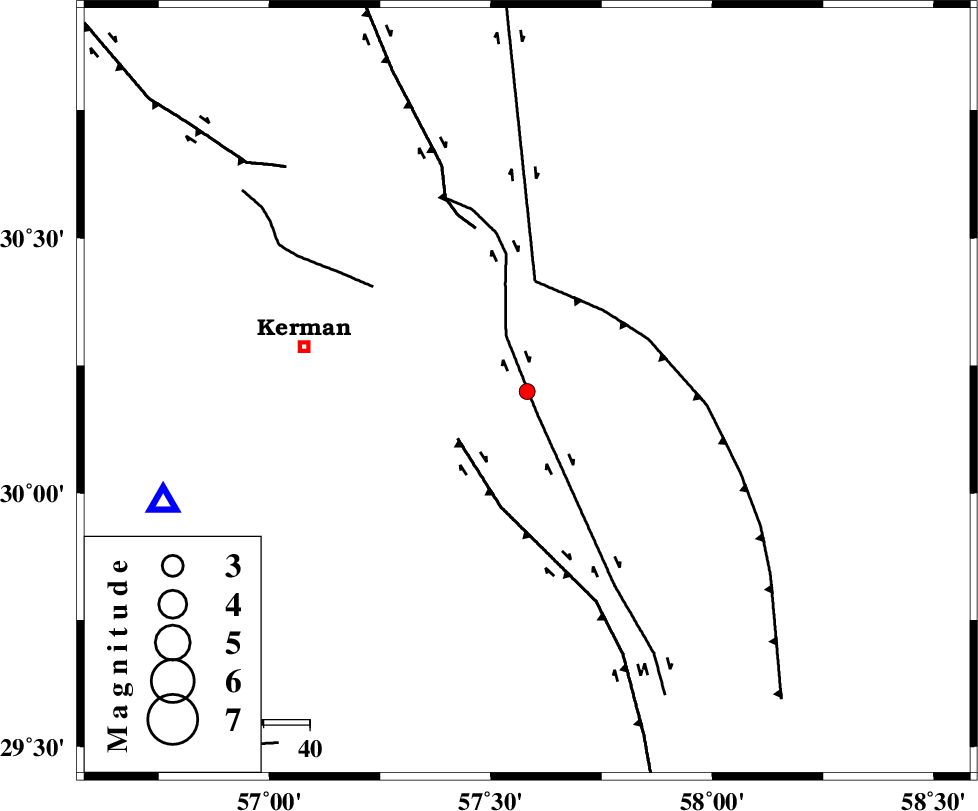

Faults within 150 km: |
|
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 5 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 18 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 24 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 5.5 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 123439 | IIEES | KRBR | N | 87.9 | 0.14 | 2017-11-28 19:09:25 | 2017-12-04 11:37:00 | n |
| 123440 | IIEES | KRBR | E | 141.8 | 0.05 | 2017-11-28 19:09:25 | 2017-12-04 11:37:00 | n |
| 123441 | IIEES | BSRN | E | 12.3 | 0.25 | 2017-11-28 19:10:11 | 2017-12-04 11:37:00 | n |
| 123442 | IIEES | BSRN | N | 13.8 | 0.28 | 2017-11-28 19:10:12 | 2017-12-04 11:37:00 | n |
| 123443 | IIEES | YZKH | E | 3.9 | 0.55 | 2017-11-28 19:10:46 | 2017-12-04 11:37:00 | n |
| 123444 | IIEES | YZKH | N | 4.6 | 0.65 | 2017-11-28 19:10:52 | 2017-12-04 11:37:00 | n |
| 123445 | IIEES | TABS | N | 3.5 | 0.59 | 2017-11-28 19:11:03 | 2017-12-04 11:37:00 | n |
| 123446 | IIEES | SHRT | N | 1.9 | 0.9 | 2017-11-28 19:11:28 | 2017-12-04 11:37:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2017-11-28 19:09:13 | -0.07 | y | 82.7 | 253 | |
| IIEES | BSRN | Z | Pn | E | 2017-11-28 19:09:37 | 0.24 | y | 245 | 37 | |
| IIEES | BSRN | N | Sg | E | 2017-11-28 19:10:08 | -0.12 | y | 245 | 37 | |
| IIEES | YZKH | Z | Pn | E | 2017-11-28 19:09:53 | -0.07 | y | 374 | 311 | |
| IIEES | TABS | Z | P | E | 2017-11-28 19:09:55 | 0.19 | y | 385 | 354 | |
| IIEES | SHRT | Z | Pn | E | 2017-11-28 19:10:04 | -0.21 | y | 460 | 33 |
