Magnitude |
3.2 |
| Date & Time (UTC) | 2017-12-08 08:48:36.8 |
| Date & Time (Local) | 1396/9/17 12:18:36.8 |

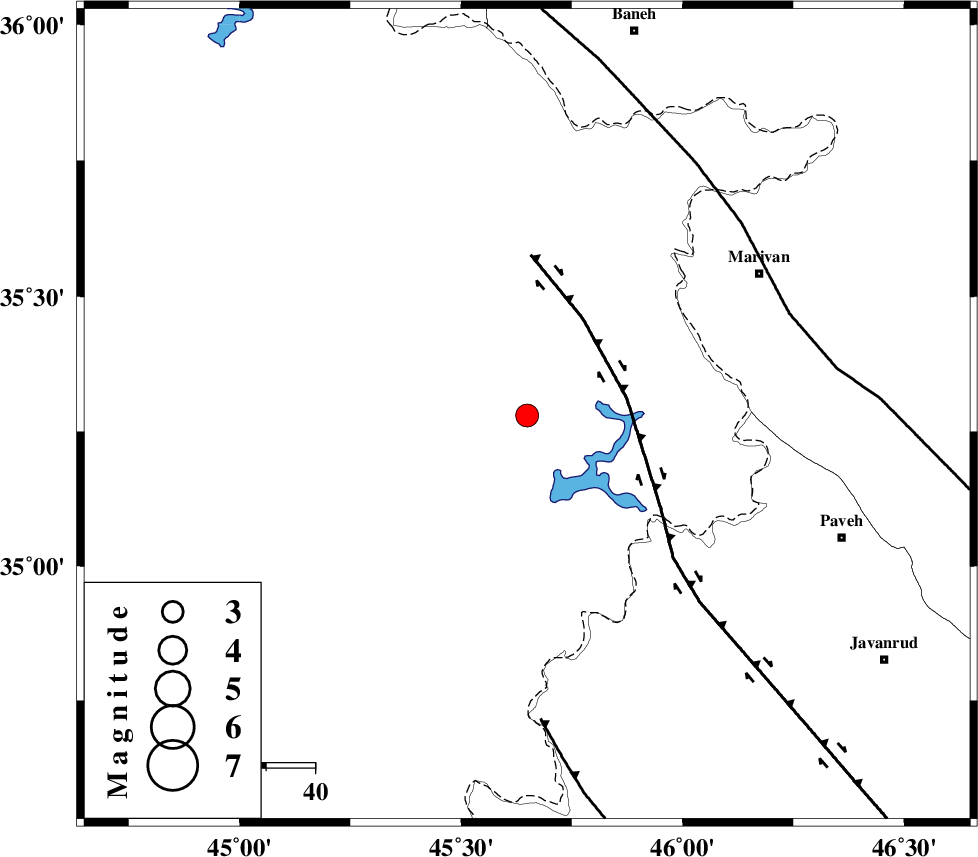

| Location | Lat:35.28 Lon: 45.649 |
| Region | Iraq, 37 km South-East of Sulaymaniyah |
Nearest Cities |
|
| 36 km North West of Markhil, Kermanshah Province | |
| 37 km South East of Sulaymaniyah, Iraq Province | |
| 47 km South West of Ney, Kurdistan Province | |
| 53 km North West of Nosud, Kermanshah Province | |
| 53 km South West of Bardeh rasheh, Kurdistan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 21 km | |
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 58 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 63 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | 4.1 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 123768 | IIEES | SNGE | N | 396.2 | 0.61 | 2017-12-08 08:49:27 | 2017-12-09 08:56:00 | n |
| 123769 | IIEES | SNGE | E | 351.8 | 0.46 | 2017-12-08 08:49:28 | 2017-12-09 08:56:00 | n |
| 123770 | IIEES | ILBA | N | 284.3 | 0.61 | 2017-12-08 08:49:37 | 2017-12-09 08:56:00 | n |
| 123771 | IIEES | KHMZ | N | 15.5 | 0.6 | 2017-12-08 08:50:40 | 2017-12-09 08:56:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pg | E | 2017-12-08 08:49:02 | -0.6 | y | 156 | 97 | |
| IIEES | SNGE | E | Sg | E | 2017-12-08 08:49:21 | 0.11 | y | 156 | 97 | |
| IIEES | ILBA | Z | Pg | E | 2017-12-08 08:49:08 | -0.14 | y | 191 | 164 | |
| IIEES | ILBA | N | Sg | E | 2017-12-08 08:49:31 | 0.06 | y | 191 | 164 | |
| IIEES | ZNJK | Z | Pn | E | 2017-12-08 08:49:23 | 0.18 | y | 314 | 60 | |
| IIEES | ASAO | Z | Pn | E | 2017-12-08 08:49:35 | 0.52 | y | 408 | 100 | |
| IIEES | KHMZ | Z | Pn | E | 2017-12-08 08:49:38 | 0.3 | y | 432 | 112 | |
| IIEES | GRMI | Z | Pn | E | 2017-12-08 08:49:39 | -0.01 | y | 440 | 26 | |
| IIEES | CHTH | Z | Pn | E | 2017-12-08 08:49:46 | -0.31 | y | 501 | 80 |
