Magnitude |
3.3 |
| Date & Time (UTC) | 2017-12-10 14:29:29.4 |
| Date & Time (Local) | 1396/9/19 17:59:29.4 |

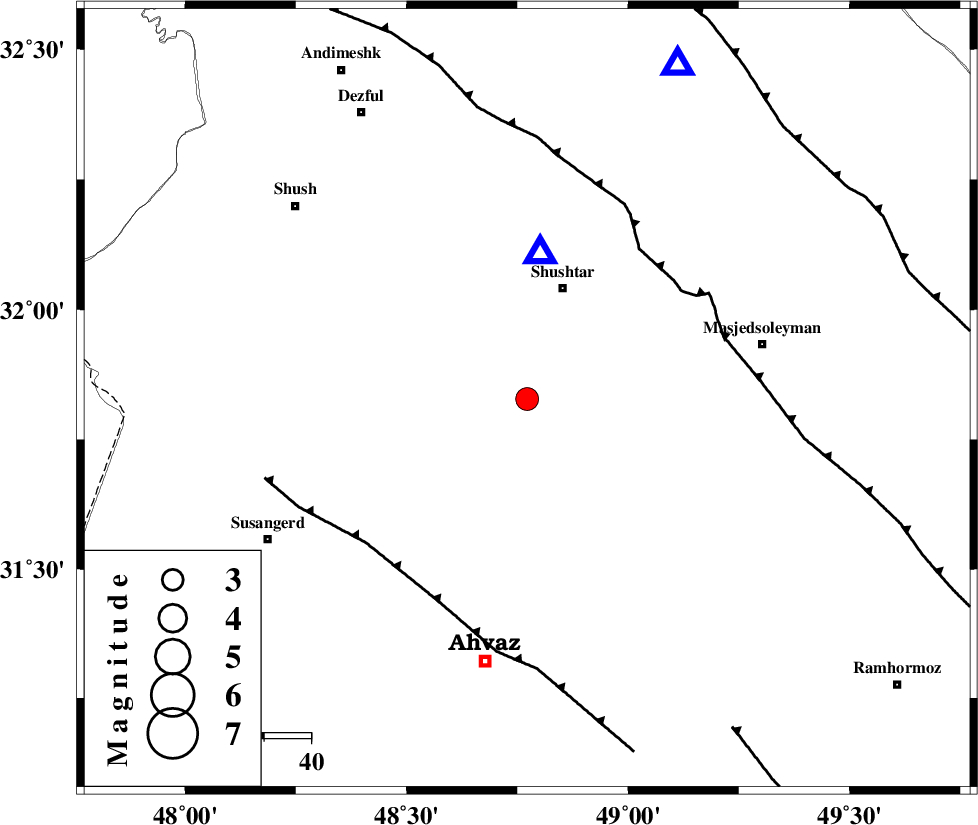

| Location | Lat:31.828 Lon: 48.772 |
| Region | Khoozestan Province, 25 km South of Shushtar |
Nearest Cities |
|
| 11 km West of Arabhasan, Khoozestan Province | |
| 15 km South of Mehdiabad, Khoozestan Province | |
| 21 km South of Sardarabad, Khoozestan Province | |
| 25 km South of Shushtar, Khoozestan Province | |
| 29 km North West of Mollasani, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 40 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 46 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 80 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 4.2 km |
| Error in Longitude | 9.1 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 123951 | IIEES | KHMZ | E | 128.6 | 0.42 | 2017-12-10 14:30:44 | 2017-12-11 11:17:00 | n |
| 123952 | IIEES | KHMZ | N | 291.6 | 0.92 | 2017-12-10 14:30:45 | 2017-12-11 11:17:00 | n |
| 123953 | IIEES | ASAO | E | 69.3 | 0.64 | 2017-12-10 14:31:07 | 2017-12-11 11:17:00 | n |
| 123954 | IIEES | ASAO | N | 69.5 | 0.78 | 2017-12-10 14:31:10 | 2017-12-11 11:17:00 | n |
| 123955 | IIEES | GHVR | E | 45.5 | 0.49 | 2017-12-10 14:31:25 | 2017-12-11 11:17:00 | n |
| 123956 | IIEES | GHVR | N | 45.7 | 0.49 | 2017-12-10 14:31:37 | 2017-12-11 11:17:00 | n |
| 123957 | IIEES | YZKH | N | 23.3 | 0.89 | 2017-12-10 14:32:16 | 2017-12-11 11:17:00 | n |
| 123958 | IIEES | YZKH | E | 10.5 | 0.59 | 2017-12-10 14:32:18 | 2017-12-11 11:17:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2017-12-10 14:30:07 | -0.04 | y | 240 | 27 | |
| IIEES | KHMZ | N | Sg | E | 2017-12-10 14:30:37 | -0.24 | y | 240 | 27 | |
| IIEES | ASAO | Z | Pn | E | 2017-12-10 14:30:17 | -0.13 | y | 324 | 21 | |
| IIEES | GHVR | Z | Pn | E | 2017-12-10 14:30:23 | 0.33 | y | 374 | 37 | |
| IIEES | GHVR | N | S | E | 2017-12-10 14:31:03 | 0.36 | y | 374 | 37 | |
| IIEES | NASN | Z | Pn | E | 2017-12-10 14:30:26 | 0.05 | y | 395 | 73 | |
| IIEES | YZKH | Z | Pn | E | 2017-12-10 14:30:45 | -0.37 | y | 553 | 82 |
