Magnitude |
2.7 |
| Date & Time (UTC) | 2017-12-13 05:19:01.2 |
| Date & Time (Local) | 1396/9/22 08:49:01.2 |

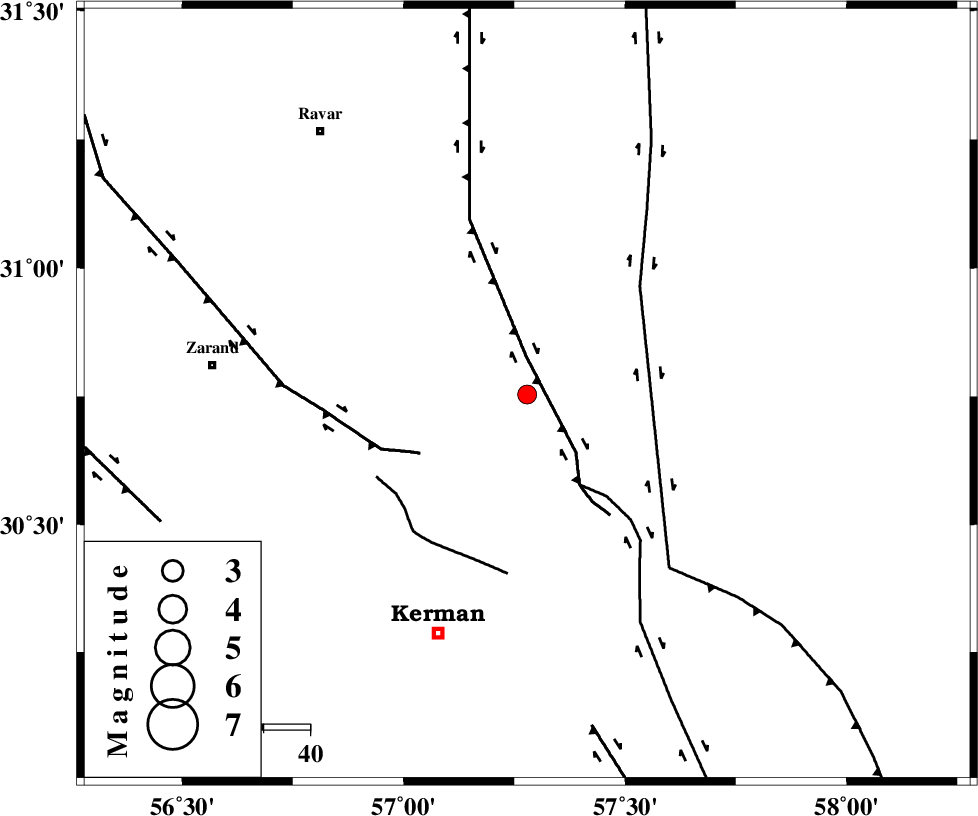

| Location | Lat:30.754 Lon: 57.279 |
| Region | Kerman Province, 55 km North-East of Kerman |
Nearest Cities |
|
| 17 km North East of Harjand, Kerman Province | |
| 28 km North of Dehlulu, Kerman Province | |
| 29 km East of Hejdak, Kerman Province | |
| 38 km North East of Hutak, Kerman Province | |
| 39 km North East of Chatrud, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 8 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 23 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 26 km | |
| Number of Phases | 7 |
| RMS | 0.6 |
| Number of Stations | 5 |
| Error in Latitude | 5.5 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 124212 | IIEES | KRBR | N | 204.8 | 0.26 | 2017-12-13 05:19:30 | 2017-12-13 06:38:00 | n |
| 124213 | IIEES | KRBR | E | 176.3 | 0.29 | 2017-12-13 05:19:34 | 2017-12-13 06:38:00 | n |
| 124214 | IIEES | BSRN | N | 83 | 0.46 | 2017-12-13 05:20:06 | 2017-12-13 06:38:00 | n |
| 124215 | IIEES | BSRN | E | 139.7 | 0.42 | 2017-12-13 05:20:06 | 2017-12-13 06:38:00 | n |
| 124216 | IIEES | YZKH | E | 11.6 | 0.4 | 2017-12-13 05:20:34 | 2017-12-13 06:38:00 | n |
| 124217 | IIEES | YZKH | N | 18.9 | 0.7 | 2017-12-13 05:20:45 | 2017-12-13 06:38:00 | n |
| 124218 | IIEES | TABS | N | 22.5 | 0.61 | 2017-12-13 05:20:45 | 2017-12-13 06:38:00 | n |
| 124219 | IIEES | TABS | E | 11.2 | 0.61 | 2017-12-13 05:20:49 | 2017-12-13 06:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2017-12-13 05:19:18 | -0.02 | y | 99 | 210 | |
| IIEES | BSRN | Z | Pn | E | 2017-12-13 05:19:36 | -0.01 | y | 221 | 52 | |
| IIEES | BSRN | N | Sg | E | 2017-12-13 05:20:04 | 0.25 | y | 221 | 52 | |
| IIEES | YZKH | Z | Pn | E | 2017-12-13 05:19:47 | -0.61 | y | 313 | 306 | |
| IIEES | YZKH | E | Sg | E | 2017-12-13 05:20:30 | 0.83 | y | 313 | 306 | |
| IIEES | TABS | Z | Pn | E | 2017-12-13 05:19:47 | -0.97 | y | 321 | 357 | |
| IIEES | ZHSF | Z | Pn | E | 2017-12-13 05:19:54 | 0.52 | y | 360 | 110 |
